BODY, FRONT - N20RTT22 (200866C)

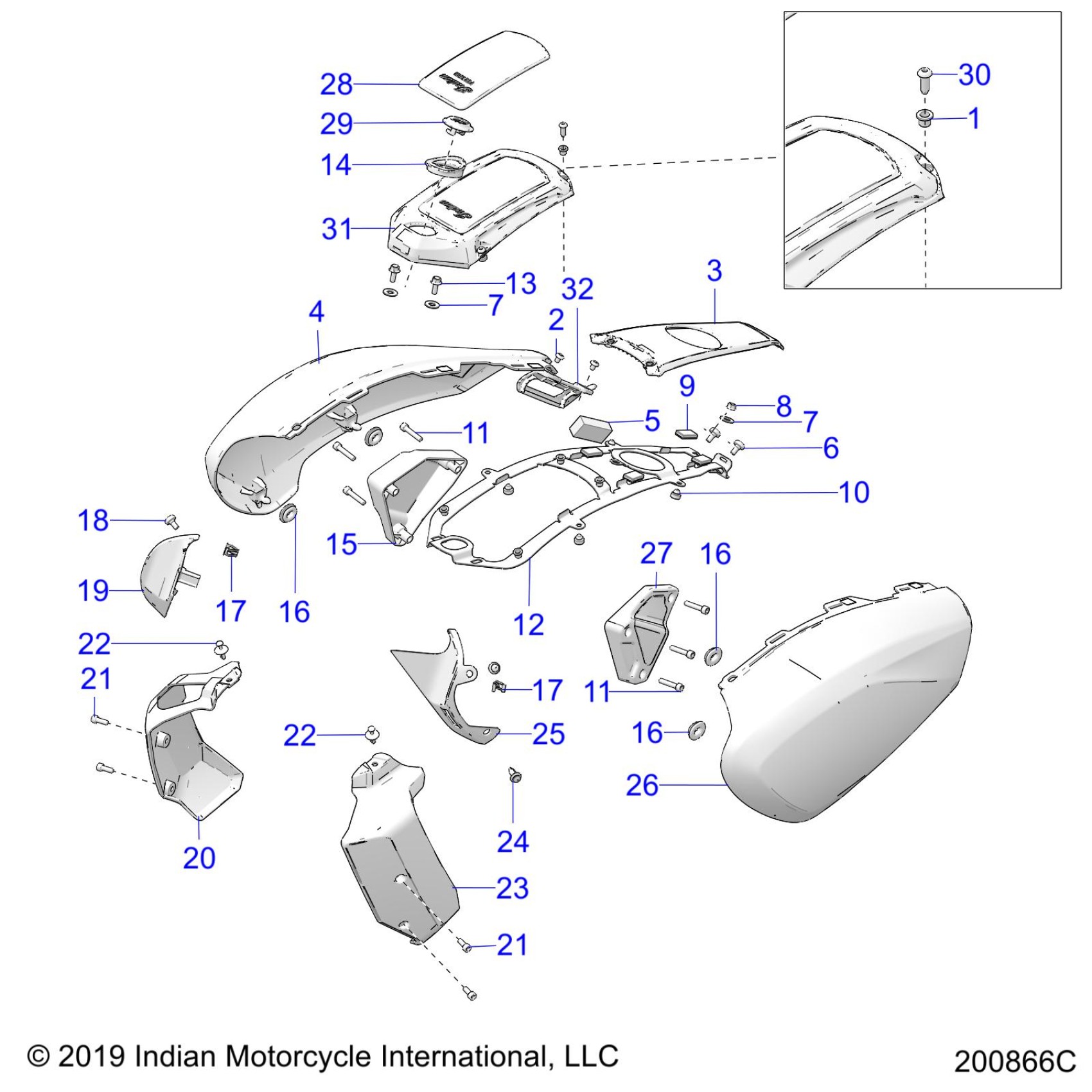

Polaris FTR 1200 RALLY (R05) - N20RTT22A9/B9/C9/E9 BODY, FRONT - N20RTT22 (200866C) Diagram
#
Description
Price
1
LIMITER-COMPRESSION, BEZEL
5142149
Unavailable
2
SCREW-TXBH-M6X1 X10 8.8 ZPB P85
7521091
$3.99
3
CONSOLE-CENTER,AIRBOX
5454541
Unavailable
4
CVR-AIRBOX,RH,TITNM,SMK,GRFX
5454537-1828
Unavailable
5
BUMPER-TANK, FOAM
5814739
Unavailable
6
SCREW-HXBH-M6X1.0X10 8.8 ZPB SPC
7521013
Unavailable
7
WSHR-.344X.750X.062-Y
7555954
$4.79
7
WSHR-.344X.750X.062-Y
7555954
$4.79
8
NUT-HXFL-M6X1.0 10 ZPB
7710495
$4.79
9
DUAL LOCK-15X20
5814735
Unavailable
10
BUMPER-GROMMET
5411323
Unavailable
11
SCREW-M6SH-M6X1X30 8.8 ZPB
7520714
Unavailable
11
SCREW-M6SH-M6X1X30 8.8 ZPB
7520714
Unavailable
12
BRKT-ALIGNMENT,BODYWORK,ECOAT
5265949-329
Unavailable
13
SCREW-HXFL-M6X1.0X16 8.8 ZPB
7518591
$3.73
14
KEY LOCK,BEZEL
5417061
Unavailable
15
COVER,V,RH
5454544
Unavailable
16
GROMMET-SIDE COVER
5433833
$4.23
16
GROMMET-SIDE COVER
5433833
$4.23
16
GROMMET-SIDE COVER
5433833
$4.23
17
CLIP-TINNERMAN,D98640-051M
7670136
$2.39
17
CLIP-TINNERMAN,D98640-051M
7670136
$2.39
18
SCREW-M6X1.0,10,HEX,BUT,SHLD,BLK
7519203
Unavailable
19
CLOSEOUT-FRONT,RH
5454997
Unavailable
20
WING, RADIATOR, RH
5455077
Unavailable
21
SCREW-SH-M6X1.0X16 8.8 ZPB D204
7520392
Unavailable
21
SCREW-SH-M6X1.0X16 8.8 ZPB D204
7520392
Unavailable
22
RIVET-PLASTIC,PUSH,1/4"
7661927
$1.49
22
RIVET-PLASTIC,PUSH,1/4"
7661927
$1.49
23
WING, RADIATOR, LH
5455076
Unavailable
24
RIVET-TUFLOK,.315-.325X.787
7661855
$1.49
25
CLOSEOUT-FRONT,LH
5454996
Unavailable
26
CVR-AIRBOX,LH,TITNM,SMK,GRFX
5454536-1828
Unavailable
27
COVER,V,LH
5454543
Unavailable
28
COVER-BEZEL,TITANIUM
5266178-04
Unavailable
29
CAP-IGNITION
5455224
Unavailable
30
SCREW-SH-M6X1.0X17 A2 EP SPC
7521110
Unavailable
31
BEZEL-AIRBOX,TOP,TXT
5455797
Unavailable
32
HEAT SHIELD-FRAME,UPPER
5456131
Unavailable
