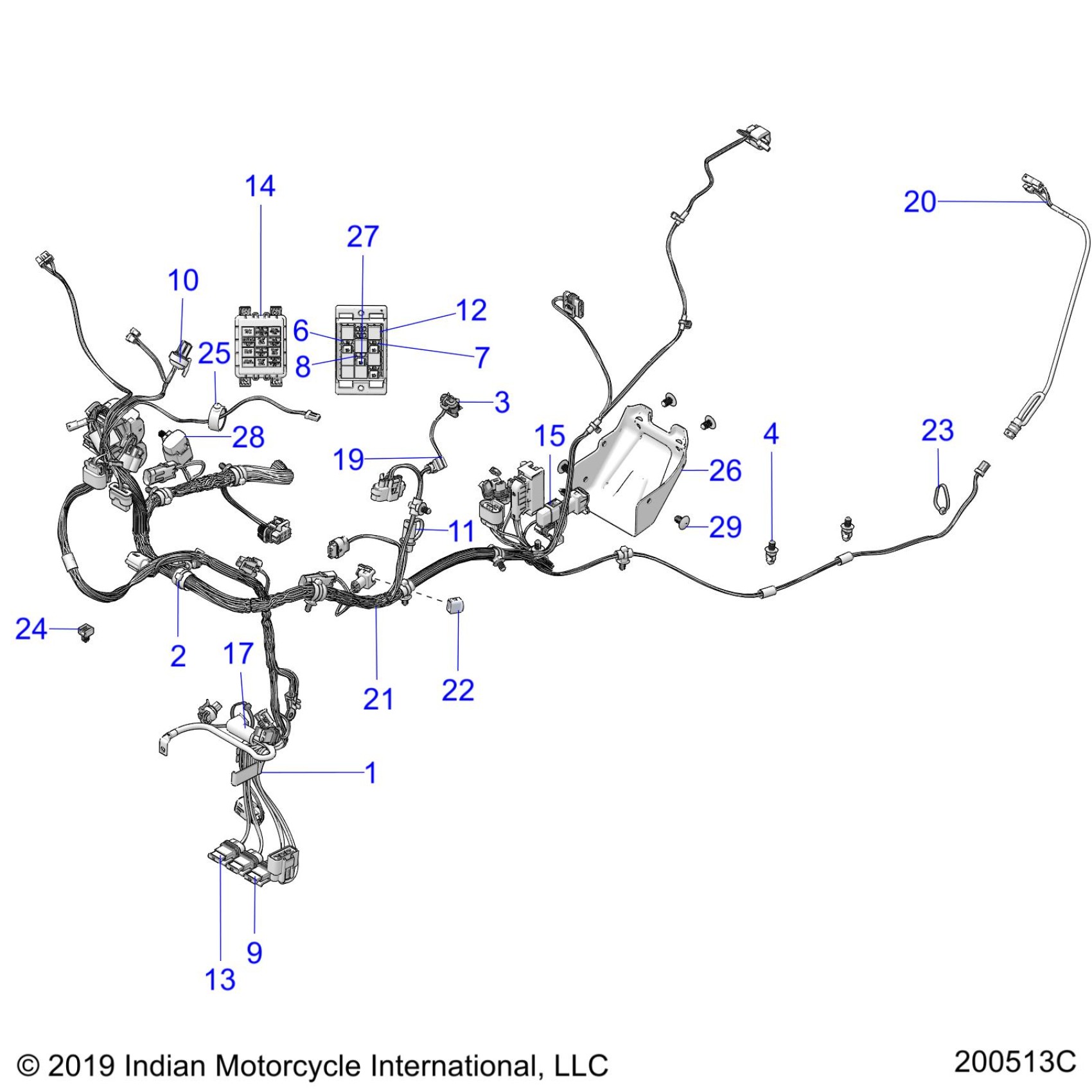

Polaris FTR 1200 RALLY LE (R02) - N19RTS25EX ELECTRICAL, WIRE HARNESS - N19RTS25EX (200513C) Diagram

#

Description
Price

1

RETAINER-WIRES,POWER

5455666

Unavailable

2

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

3

CLIP-RETAINER,COIL

5455270

Unavailable

4

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

6

FUSE-IGNITION,10 AMP

2434016

$4.79

7

FUSE-7.5,MINI BLADE (BROWN)

4011068

Unavailable

8

FUSE-5A,MINI BLADE

4011652

Unavailable

9

FUSE-ATC 40 AMP

4012421

$31.99

10

CONNECTOR-16 PIN,MP100W

4013048

Unavailable

11

COVER-CONNECTOR,SAE

4015736

Unavailable

12

RELAY-SPST,12V,20A,SEALED,HFA

4016186

Unavailable

13

FUSE-ATC,25 AMP

4016618

$11.19

14

COVER-FUSEBOX,TRK

4017718

Unavailable

15

COVER-TYCO, 4P

4018135

Unavailable

17

BOOT,BTTRY CABLE,RED,POS

5411570

$7.19

19

CLIP-EDGE,1-3MM THICKNESS

7082428

$4.79

20

HARNESS-REAR,TRK

2414908

Unavailable

21

HARNESS-CHASSIS,TRK

2414907

Unavailable

22

COVER- BOSCH, 2P,F

4018461

Unavailable

23

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

24

CLIP-CONNECTOR,GREY

4018311

$3.51

25

CABLE-TIE,DIA25-30MM,REUSABLE

5416885

Unavailable

26

COVER-WIRING,ABS

5455667

Unavailable

27

BREAKER-CIRCUIT,10 AMP

4011371

$15.99

28

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

29

CLIP-PLASTIC DART, NYLON

7670088

$1.59
