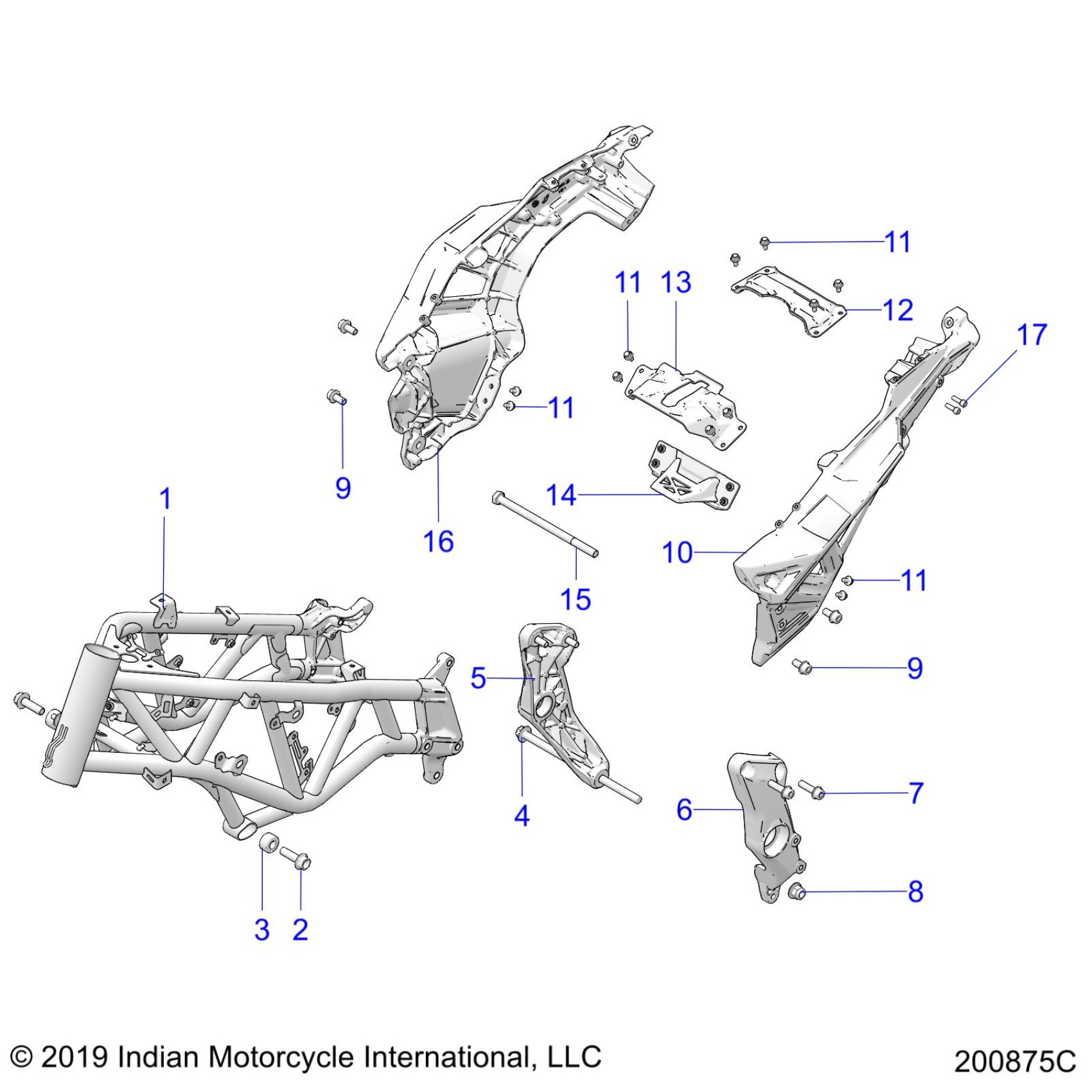

Polaris FTR 1200 RALLY LE (R02) - N19RTS25EX CHASSIS, FRAME - N19RTS25EX (200875C) Diagram

ASM-MAINFRAME,T-WELD,BLK

1023965-266

$1,824.99

SCR-HXFL-M12X1.75X40 10.9 ZPC

7521028

$4.76

SPACER-HEADMOUNT

5142176

$4.76

SCR-HXFL-M12X1.75X250 8.8 ZPC

7519881

$23.81

FRAME-MID,RH

5141988-463

$304.99

FRAME-MID,LH

5141987-463

$304.99

SCR-SHFL-M10X1.5X35 10.9 ZPC

7520969

$4.76

NUT-HXFL M12X1.75 8 ZOD NYL

7547441

$4.76

SCR-SHFL-M10X1.5X20 10.9 ZPB

7520968

$4.76

SCR-SHFL-M10X1.5X20 10.9 ZPB

7520968

$4.76

FRAME-SUBFRAME,REAR,LH

5141989-463

$469.99

SCR-HXFL-M6X1.0X12 8.8 ZPB

7517704

$7.84

SCR-HXFL-M6X1.0X12 8.8 ZPB

7517704

$7.84

SCR-HXFL-M6X1.0X12 8.8 ZPB

7517704

$7.84

SCR-HXFL-M6X1.0X12 8.8 ZPB

7517704

$7.84

BRKT-SEAT SUPPORT,REAR

5266076

$48.56

BRKT-SEAT SUPPORT, FRONT

5267252

$67.76

ASM-TANK SUPPORT, BOTTOM

1024794

$75.54

SCR-HXHD-M12X1.75X210 8.8 ZPC

7520931

$7.99

FRAME-SUBFRAME,REAR,RH

5141990-463

$469.99

SCR-SH-M6X1.0X20 8.8 ZPB

7517305

$5.22
