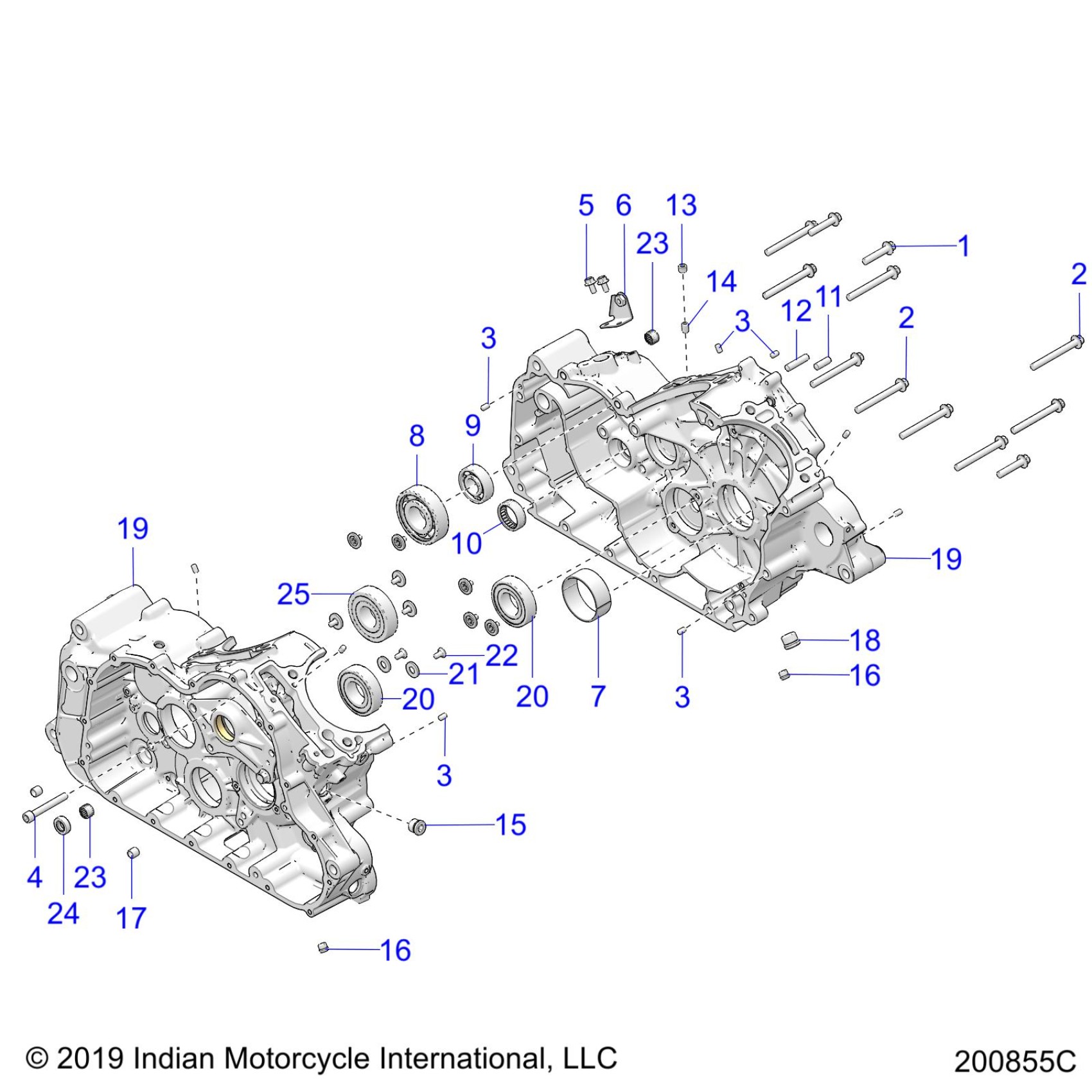

Polaris FTR 1200 RALLY ALL OPTIONS (R04) - N22RTT22A9/B9/C9/E9 ENGINE, CASE ASM. - N22RTT22 (200855C) Diagram

#

Description
Price

1

SCREW-HXFL-M8X1.25X40,10.9,ZPC

7519947

$5.56

2

SCREW-HXFL-M8X1.25X75,10.9,ZPC

7519948

$3.97

2

SCREW-HXFL-M8X1.25X75,10.9,ZPC

7519948

$3.97

3

PIN-DOWEL,M6X10

5132835

$2.38

3

PIN-DOWEL,M6X10

5132835

$2.38

3

PIN-DOWEL,M6X10

5132835

$2.38

3

PIN-DOWEL,M6X10

5132835

$2.38

4

SCREW-SH-M8X1.25X60 10.9 ZPC

7520093

$10.32

5

SCREW-HXFLGHD,M6X12

7517886

$1.59

6

BRACKET-GUARD MOUNT

1019927

$11.32

7

BEARING-MAIN,56X60X23,LW

3515066

$17.46

8

BEARING-BALL,6306,C3,30X72X19

3514887

$23.81

9

BEARING-6204RSH2,C3,20X47X14

3514860

$33.32

10

BRG-NDL,30X37X12-30BTM3712

3514812

$27.78

11

PIN-SOLID,M8X24

7662359

$23.81

12

PIN-SOLID,M8X36

7662360

$30.54

13

PLUG-1/8 NPTF,HX/SOC W/SEALANT

7052337

$3.22

14

RESTRICTOR-OIL,1MM

5138744

$28.32

15

PLUG-SH,W/O-RING,M16X1.5

7520843

$8.08

16

PLUG-SH,W/O-RING,M10X1

7520842

$7.14

16

PLUG-SH,W/O-RING,M10X1

7520842

$7.14

17

DWL-HOL,M11X10,0600089

7663005

$5.22

18

PLUG-SH,W/O-RING,M18X1.5

7520844

$7.14

19

ASM-CRANKCASE,COMPLETE,TNM [INCL. 2,3,7-20,23-25]

1205768-650

$2,704.99

19

ASM-CRANKCASE,COMPLETE,TNM [INCL. 2,3,7-20,23-25]

1205768-650

$2,704.99

20

BRG-BALL,6206ZZ,C3,30X62X16

3514886

Unavailable

20

BRG-BALL,6206ZZ,C3,30X62X16

3514886

Unavailable

21

RETAINER-BEARING

5138188

$4.76

22

SCREW-M6X12 TORX DR FH

7517598

$11.33

23

BEARING,NDL,M12X16X10,CLTSHF

3552105

$21.81

23

BEARING,NDL,M12X16X10,CLTSHF

3552105

$21.81

24

SEAL-SHAFT,12X22X7

3610154

Unavailable

25

BRG-BALL,63/28ZZ,C0,28X68X18

3514884

$38.08
