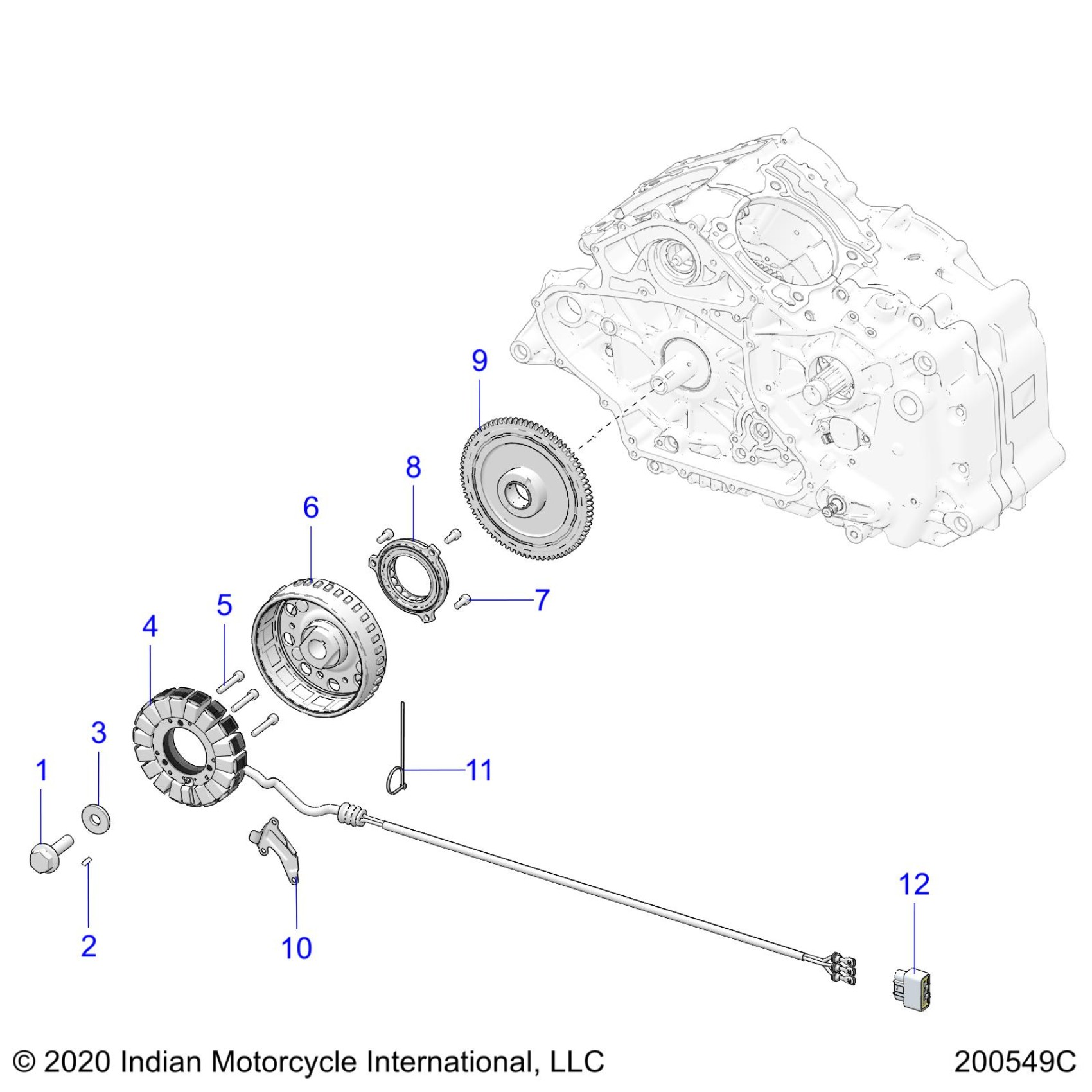

Polaris FTR 1200 RALLY ALL OPTIONS (R04) - N22RTT22A9/B9/C9/E9 ELECTRICAL, STATOR - N22RTT22 (200549C) Diagram

#

Description
Price

1

SCREW-HXFL-M12X1.25X43 12.9

7520178

$27.99

2

KEY-WOODRUFF,4X5

7721122

$7.84

3

WSHR-32X12X4,HARD

7556885

$5.59

4

Strap, Cable Tie, 4 Inch

7080792

$3.99

4

STATOR

4017786

Unavailable

5

SCREW-M6X1.0X35 SOC/CP-Y/D

7517848

$5.59

6

FLYWHEEL

4014530

Unavailable

7

SCREW-M6X1.0X14.0,HX/SOC/CP-Y/D

7517431

$5.59

8

ASM., SPRAG CLUTCH,HUB,STARTER

1204980

Unavailable

9

ASM., GEAR,STARTER,CRANK

1205315

Unavailable

10

CLIP-STATOR WIRE,IND

5258718

Unavailable

11

Strap, Cable Tie, 4 Inch

7080792

$3.99

12

CONNECTOR-QLW SERIES,3F,GRAY

4014672

Unavailable
