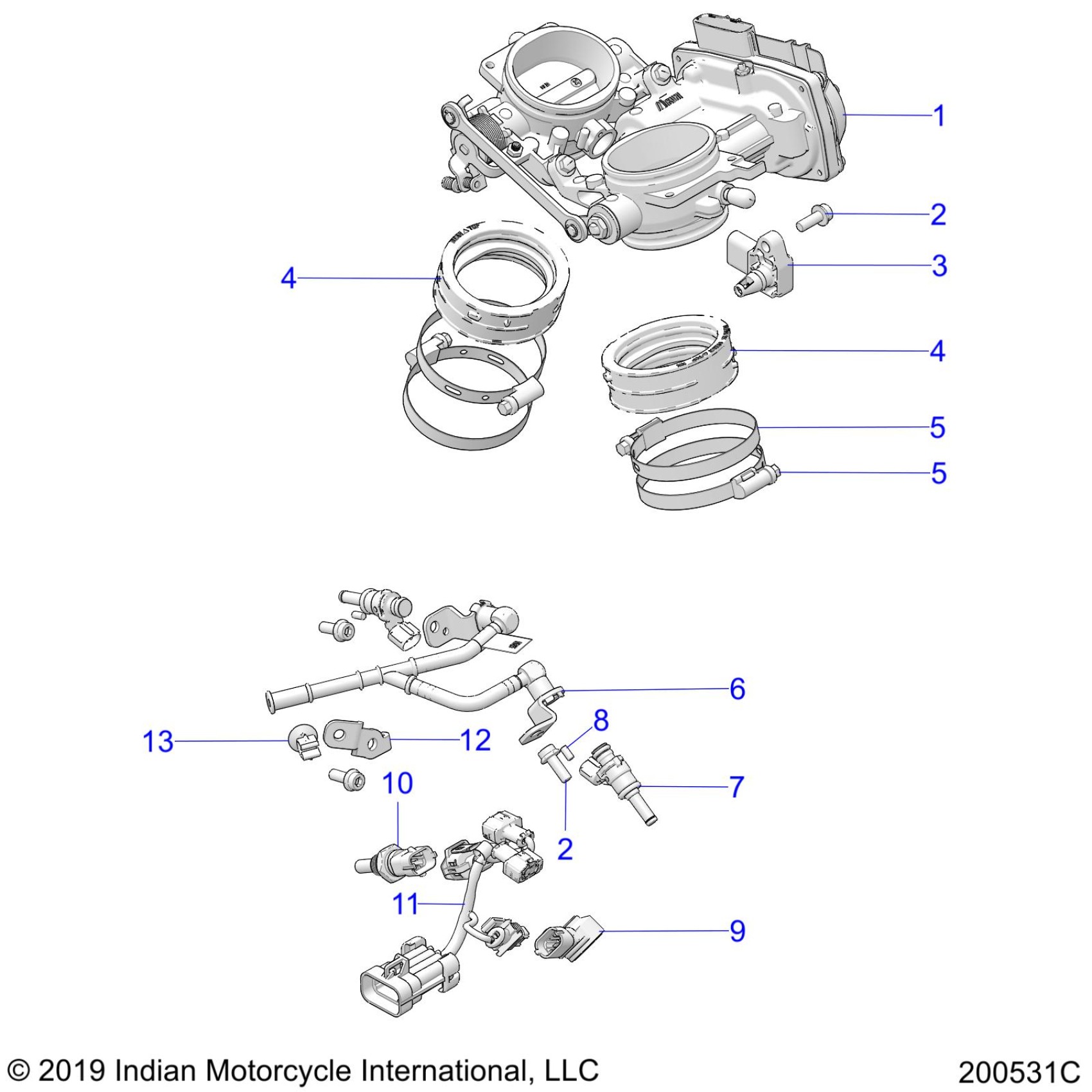

Polaris FTR 1200 (R05) - N20RTA22EA/RUA24EA ENGINE, THROTTLE BODY AND FUEL RAIL - N20RTA22/RUA24 (200531C) Diagram

THROTTLE,DUAL BORE,52MM,ETC

1205711

Unavailable

SCREW-SOCFLGHD,M6X1.0X16

7518803

$3.99

SCREW-SOCFLGHD,M6X1.0X16

7518803

$3.99

SENSOR-TMAP

2413061

Unavailable

ADAPTER-THROTTLE BODY

5416354

Unavailable

ADAPTER-THROTTLE BODY

5416354

Unavailable

CLAMP-NARROW,SLOTTED 50-70MM

7082230

$6.39

CLAMP-NARROW,SLOTTED 50-70MM

7082230

$6.39

RAIL-FUEL,V-TWIN,4-BAR

2522168

Unavailable

INJECTOR-FUEL

2521836

Unavailable

DOWEL-SOLID,4MMX8MM [INCL. WITH 3023617-650 AND 3023618-650][SEE "ENGINE, CYLINDER HEAD ASM.]

-------

Unavailable

SENSOR-KNOCK BOSCH

2413713

$59.99

SENSOR-THERMISTER

4010644

$87.13

O-RING-3/8X1/2X1/16

5142712

Unavailable

HARNESS-AP SENSOR JUMPER

2414426

Unavailable

BRKT-SUPPORT,FUEL,INLET

2522005

Unavailable

CLIP-ROUTING,8

5454313

Unavailable
