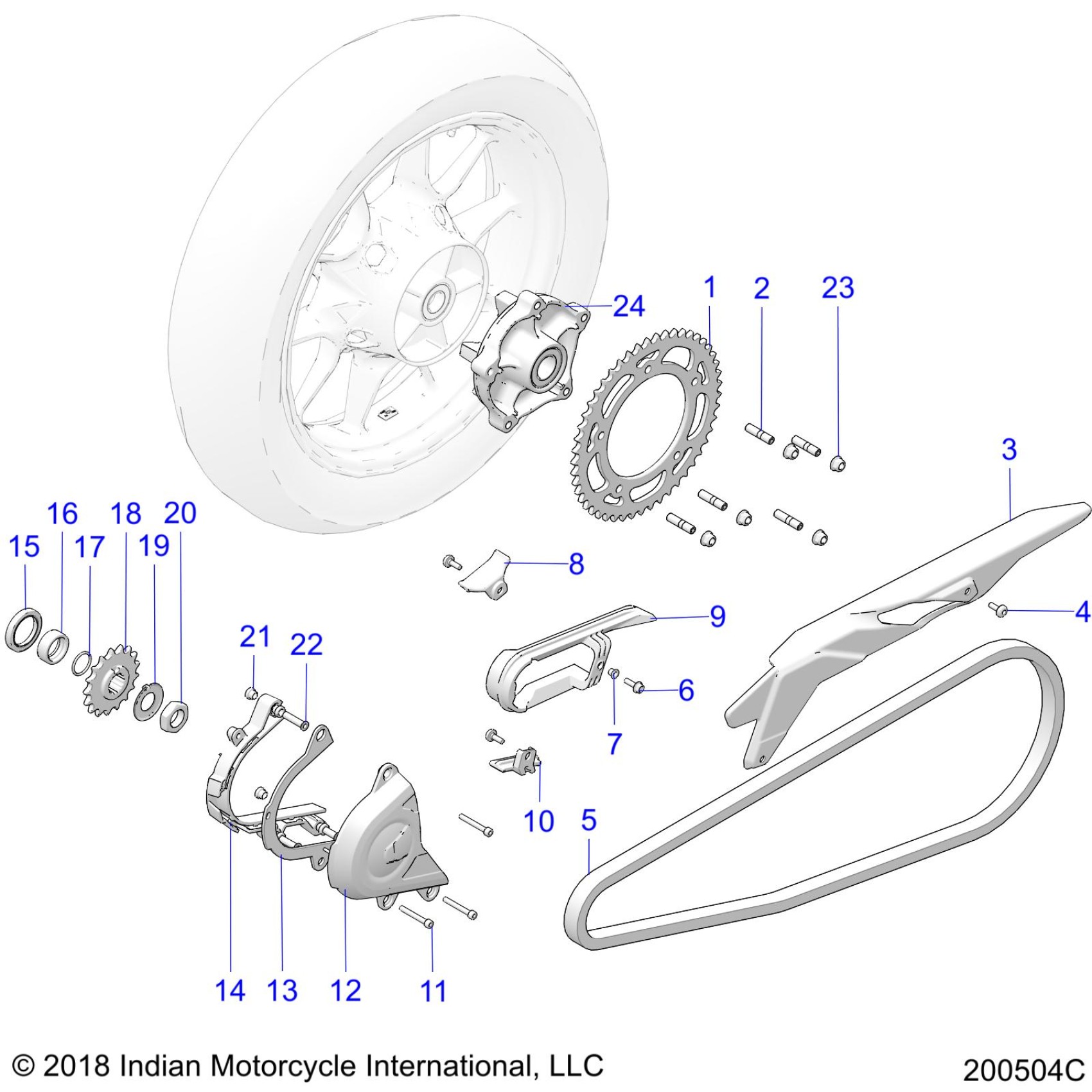

Polaris FTR 1200 (R05) - N20RTA22EA/RUA24EA DRIVE TRAIN, SPROCKETS, GUARDS AND CHAIN - N20RTA22/RUA24 (200504C) Diagram

#

Description
Price

1

SPROCKET-49T

5142884

Unavailable

2

STUD-M10X1.25X41

7521123

$7.14

3

GUARD-CHAIN, UPPER

5455317

$32.37

4

SCREW-HXBH,M6X1.0X15,8.8,LOC,ZB3

7521040

$3.97

5

ASM., CHAIN-525,XRING

3222308

$204.99

6

SCREW-HXFL-M6X1.0X20 8.8 ZPB

7520122

$4.76

7

BUSHING-BRAKE PIVOT

5338020

$9.52

8

SLIDER-CHAIN

5454707

$12.94

9

SLIDER-CHAIN

5454708

$64.75

10

SLIDER-CHAIN, LOWER

5455873

$20.22

11

SCREW-SH-M6X1.0X45 A2

7520393

$3.97

12

COVER-OUTER SPROCKET

5455035

$40.46

13

PLATE-CHAIN, CATCHER

5267059

$48.56

14

RETAINER-CABLE,COVER-SPROCKET

5455036

$36.41

15

SEAL,40X X8 DB LIP FKM

3610213

$35.71

16

SPACER,DRIVE SPROCKET

5139334

$38.08

17

O-RING-26.65X2.62,0600083

5412530

$1.60

18

K-DRIVE SPROCKET, 1203 [INCL. 18,19,20]

2208056

Unavailable

18

SPROCKET-DRIVE.17T

3236117

$68.79

19

WASHER-LOCKING PLATE

7557107

$6.35

20

NUT-HEX,M24X1.5,JAM

7547683

$38.08

21

ISOLATOR-CVR,SPRKT,BUSHING

5412070

$6.35

22

SPACER-M6X33

7661185

$10.46

23

NUT-HXFL-M10X1.25 8 ZPC FJL

7547977

$3.97

24

ASM, CUSH, BLK [INCL. 1,2,23]

1334021-458

$389.99
