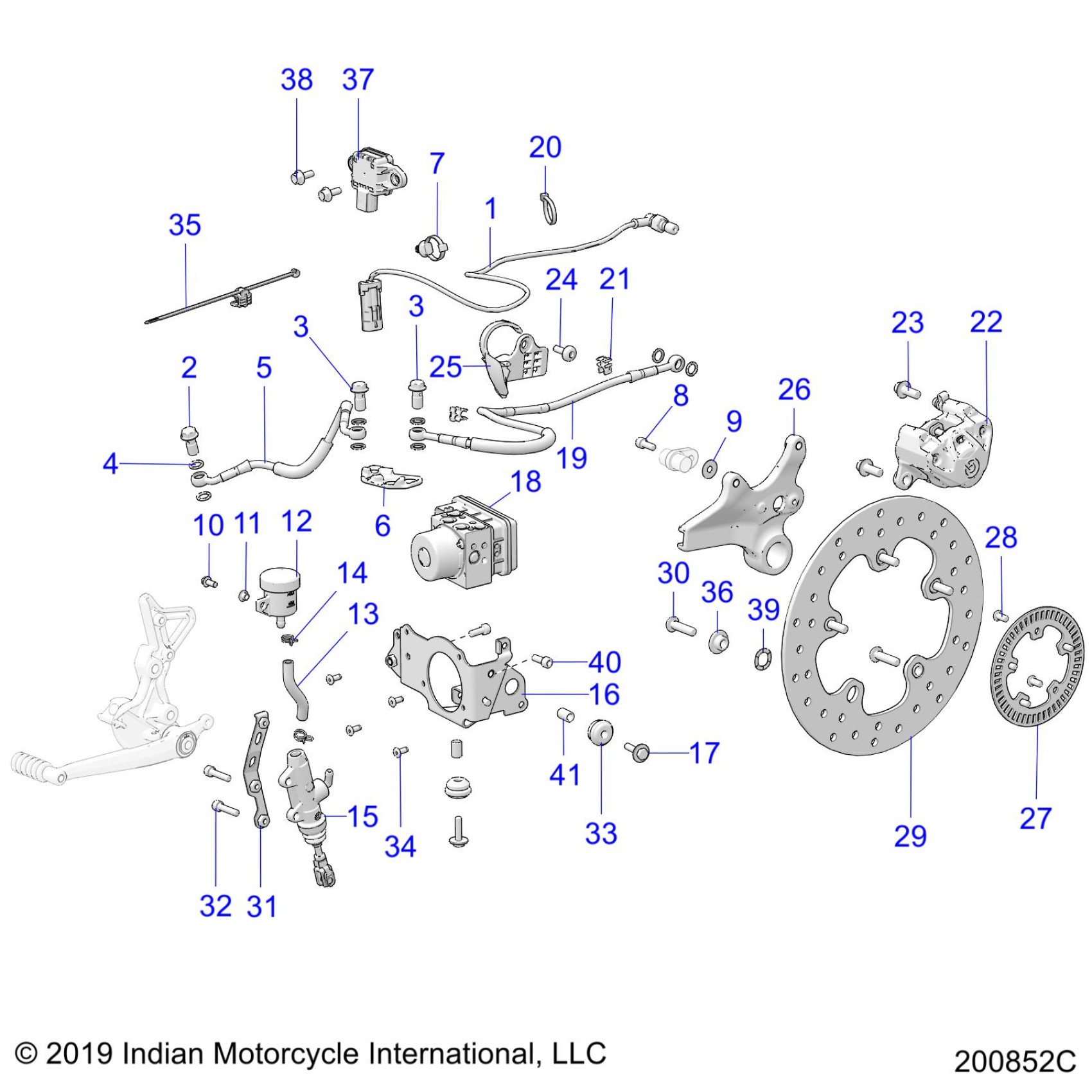

Polaris FTR 1200 (R05) - N20RTA22EA/RUA24EA BRAKES, REAR ASM - N20RTA22/RUA24 (200852C) Diagram

#

Description
Price

1

SWITCH-BANJO,M10X1.0

1913090

$79.99

2

BOLT-BANJO,10MMX1.00-6G

1910499

$5.56

3

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

3

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

4

WASHER-COPPER,M10

1912829

$4.99

5

BRAKELINE-RMC TO ABS

1913082

$53.24

6

GUIDE-BRAKELINE,ABS

5455074

$4.84

7

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

8

SCREW-SH-M6X1.0X15 10.9 ZPC

7517272

$7.84

9

SHIM-SENSOR,ABS,0.5MM

5255106

Unavailable

10

SCREW-HXFL-M5X0.8X12 4.8 ZPC NYL

7518894

$1.19

11

SPACER-RESERVOIR,REAR

7557144

Unavailable

12

RESERVOIR,M/CYL,RR [SEE "BRAKES, REAR KITS"]

----

Unavailable

13

HOSE [ORDER KIT 2208075, INCL. HOSE AND CLIPS]

----

Unavailable

14

CLIPS [ORDER KIT 2208075, INCL. HOSE AND CLIPS]

----

Unavailable

15

ASM., RMC,13.0MM,RES,ADZBLK [INCL. 12-14]

1913078-468

$111.33

15

K-PUSHROD, RMC, P13

2208077

$49.99

16

ASM., BRKT,ABS

1024638

$44.51

17

SCREW-HH-M6X1.0X25 8.8 ZPC SPC

7519089

$3.97

18

K-MODULE/CAL,ABS,WET,19

2209770

$789.99

19

BRAKELINE-ABS TO RRCAL

1913083

$58.08

20

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

21

CLIP-BRAKE,THREE-WAY

5455211

$3.97

22

CALIPER-RR,FIXED,BREMBO,TI-M

1912958-602

$266.25

23

SCREW-HXFL-M8X1.25X20 8.8 ZB

7519936

$1.59

24

SCREW-M6X1.0,10,HEX,BUT,SHLD,BLK

7519203

$12.99

25

CLIP-RET,BRAKE,RR

5416886

$10.32

26

BRACKET-TORQUE,BRK

5142998

$53.24

27

RING-TONE,ABS

5266684

$44.51

28

SCREW-TXBH-M6X1.0X12 A2

7520383

$3.17

29

ROTOR-REAR

1913075

$154.99

30

SCREW-ROTOR,SEMI-FLOAT

7520851

Unavailable

31

BRACKET-RESERVOIR,REAR

5266107

$28.32

32

SCREW-SH-M6X1.0X25 10.9 ZPC

7517259

$5.56

33

GROMMET-ABS MOUNT

5413711

$3.17

34

RIVET-4.8MM DIA-1.5-6.0 GRIP

7661973

$1.19

35

STRAP-CABLE TIE W/SIDE CLIP

7082510

$5.99

36

BUSHING-ROTOR,SEMI FLOAT

5141804

$3.17

37

SENSOR-IMU, BOSCH

4017485

$419.99

38

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.79

39

WASHER-SPRING,ROTOR

7557116

$3.17

40

SCREW-SH-M6X1.0X16 8.8 ZPY D204

7519303

$3.97

41

COLLAR-ABS,10 OD,7 ID,15 LONG

5136840

$2.38
