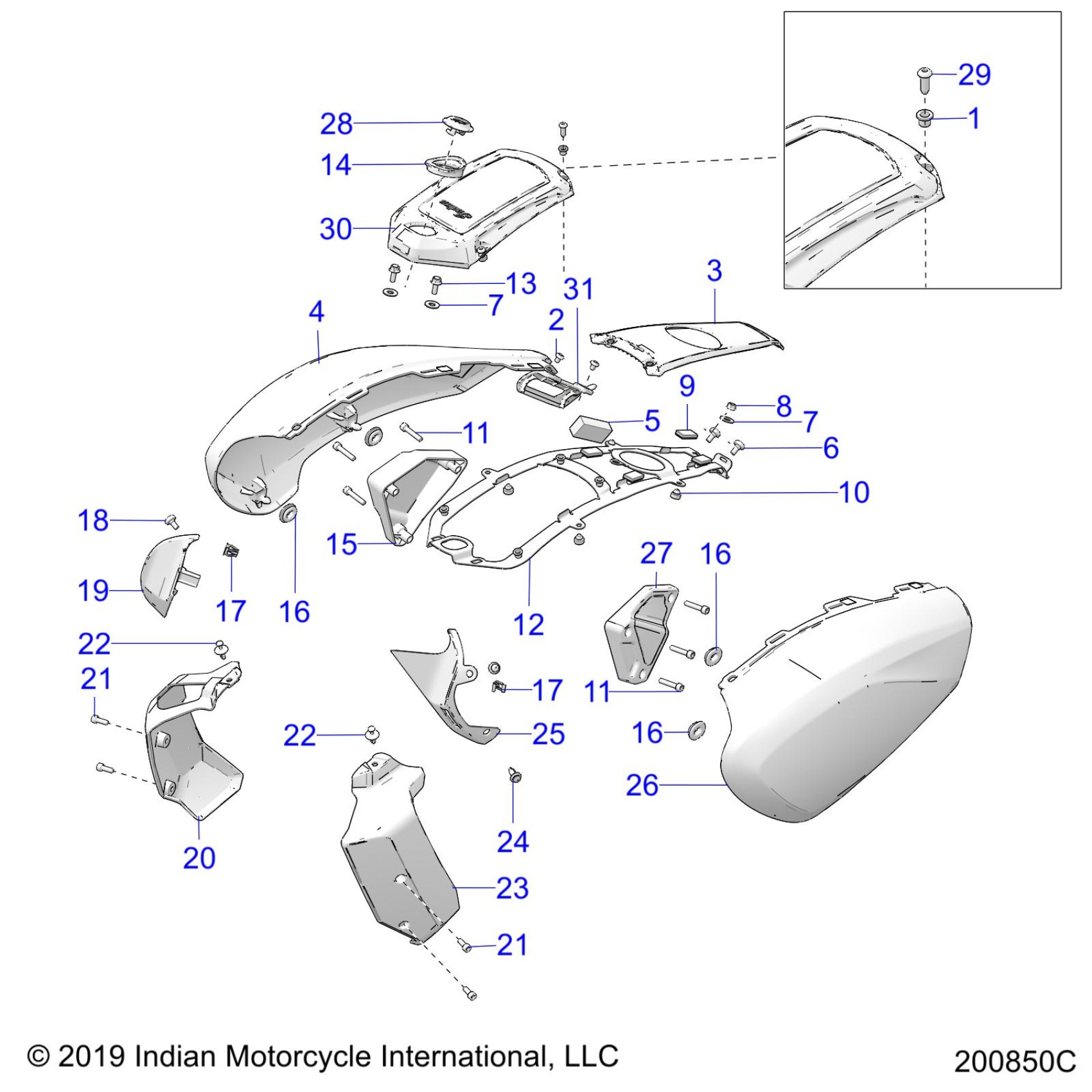

Polaris FTR 1200 (R05) - N20RTA22EA/RUA24EA BODY, FRONT - N20RTA22/RUA24 (200850C) Diagram

#

Description
Price

1

LIMITER-COMPRESSION, BEZEL

5142149

$4.76

2

SCREW-TXBH-M6X1 X10 8.8 ZPB P85

7521091

$3.97

3

CONSOLE-CENTER,AIRBOX

5454541

$40.46

4

CVR-AIRBOX,RH,BLK

5454537-266

$389.99

5

BUMPER-TANK, FOAM

5814739

$3.17

6

SCREW-HXBH-M6X1.0X10 8.8 ZPB SPC

7521013

$3.97

7

WSHR-.344X.750X.062-Y

7555954

$4.76

7

WSHR-.344X.750X.062-Y

7555954

$4.76

8

NUT-HXFL-M6X1.0 10 ZPB

7710495

$5.22

9

DUAL LOCK-15X20

5814735

$3.97

10

BUMPER-GROMMET

5411323

$3.17

11

SCREW-M6SH-M6X1X30 8.8 ZPB

7520714

$4.76

11

SCREW-M6SH-M6X1X30 8.8 ZPB

7520714

$4.76

12

BRKT-ALIGNMENT,BODYWORK,ECOAT

5265949-329

$82.29

13

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.79

14

KEY LOCK,BEZEL

5417061

$7.27

15

COVER,V,RH

5454544

$32.37

16

GROMMET-SIDE COVER

5433833

$4.21

16

GROMMET-SIDE COVER

5433833

$4.21

16

GROMMET-SIDE COVER

5433833

$4.21

17

CLIP-TINNERMAN,D98640-051M

7670136

$2.38

17

CLIP-TINNERMAN,D98640-051M

7670136

$2.38

18

SCREW-M6X1.0,10,HEX,BUT,SHLD,BLK

7519203

$12.99

19

CLOSEOUT-FRONT,RH

5454997

$32.37

20

WING, RADIATOR, RH

5455077

$44.51

21

SCREW-SH-M6X1.0X16 8.8 ZPB D204

7520392

$3.97

21

SCREW-SH-M6X1.0X16 8.8 ZPB D204

7520392

$3.97

22

RIVET-PLASTIC,PUSH,1/4"

7661927

$1.19

22

RIVET-PLASTIC,PUSH,1/4"

7661927

$1.19

23

WING, RADIATOR, LH

5455076

$44.51

24

RIVET-TUFLOK,.315-.325X.787

7661855

$1.19

25

CLOSEOUT-FRONT,LH

5454996

$32.37

26

CVR-AIRBOX,LH,BLK

5454536-266

$419.99

27

COVER,V,LH

5454543

$32.37

28

CAP-IGNITION

5455224

$20.22

29

SCREW-SH-M6X1.0X17 A2 EP SPC

7521110

$3.97

30

BEZEL-AIRBOX,TOP,TXT

5455797

$36.41

31

HEAT SHIELD-FRAME,UPPER

5456131

$20.22
