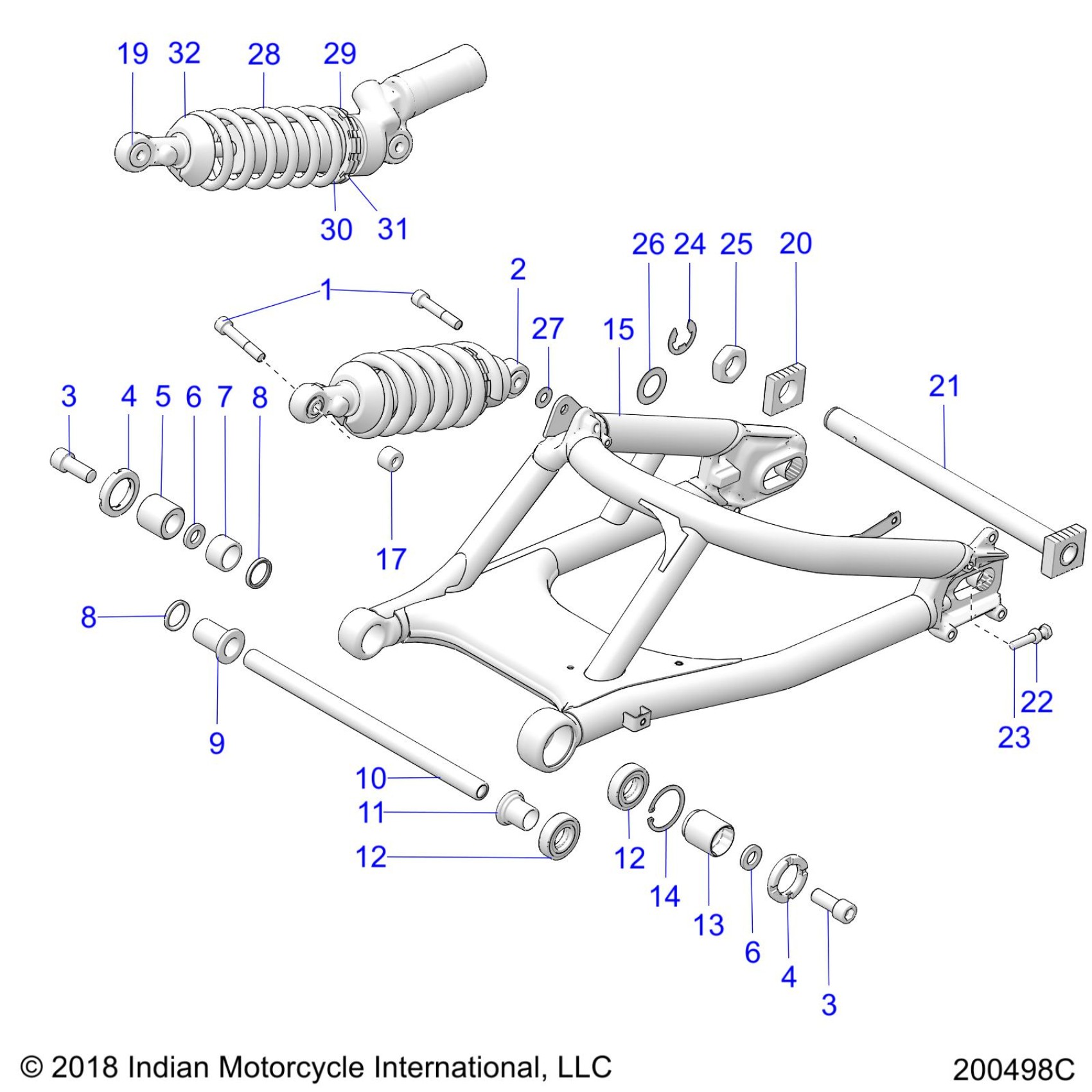

Polaris FTR 1200/FTR 1200 S (R10) - N19RTA22AA/BA/CA/EA/4EA/R22EA/S22AA/C/R/BA/C/R/CA/C/R/EA/C/R/5AC/BC/CC/EC SUSPENSION,REAR SWING ARM/SHOCK - N19RTA22/RTS22/RTS25 (200498C) Diagram

SCR-SH-M10X1.5X55 10.9 SPCL

7521017

$4.76

ASM-SHOCK,TH,BLACK [FTR 1200 ONLY]

1824737-266

$689.99

SCR-SH-M14X2X35 10.9 ZPC D204

7521139

$8.08

SCR-SH-M14X2X35 10.9 ZPC D204

7521139

$8.08

RING-LOCK,PIVOT

5142051

$23.81

RING-LOCK,PIVOT

5142051

$23.81

ADJUSTER-PIVOT,RH

5142050

$39.68

WASHER-14.5X26.4X4 ZPC

7557189

$4.76

WASHER-14.5X26.4X4 ZPC

7557189

$4.76

BEARING-NEEDLE ROLLER,HK2520

3514413

$19.84

SEAL-SD25X32X4

3610096

$11.90

SEAL-SD25X32X4

3610096

$11.90

BUSH-PIVOT,RH

5141833

$31.75

SHAFT-PIVOT

5142071

$94.99

BUSH-PIVOT,LH

5141731

$23.81

BEARING,BALL,47X25X12,6005-2RS

3514549

$23.81

BEARING,BALL,47X25X12,6005-2RS

3514549

$23.81

ADJUSTER-PIVOT,LH

5142049

$39.68

RING-SNAP,DIN472,47X1.75MM

7710677

$5.65

ASM-SWINGARM,STEEL,BLK [INCL. 7,8,12,14]

1024289-266

$654.99

ASM-SWINGARM,STEEL,IND RED [INCL. 7,8,12,14]

1024289-639

$654.99

K-BEARINGS,SWING-ARM [INCL. 7,8,9,12]

2208038

$94.99

BUSH-SHOCK,FLOATING

5142556

$19.84

ASM-SHOCK,TR,BLACK [FTR 1200 S ONLY]

1824738-266

$799.99

ASM-SHOCK,TR,IND RED [FTR 1200 S ONLY]

1824738-639

$774.99

PLATE-ADJUSTER,AXLE,RH

5141735

$32.37

ASM-AXLE,REAR

1544152

$61.10

NUT-HEX-M8X1.25 8 ZPB.

7547076

$2.60

SCR-HH M8X1.25X45 SPCL

7520973

$3.97

RING-E-CLIP,63/64

7710908

$3.97

NUT-AXLE,REAR

7547932

$27.78

WASHER-25X40X1.2 ZPC

7557132

$3.97

WSHR-10.5X22.0X1.6 SPC

7556155

$5.22

SPRING-REAR,114,BLK

7045301-266

$104.75

SPRING-REAR,114,IND RED

7045301-639

$104.75

COLLAR-SHOCK,UPPER

2208116

$35.54

COLLAR-SHOCK,LOWER

2208115

$35.54

WASHER-SPRING

2208114

$22.21

RETAINER-SPRING,SHOCK

2208113

$39.98
