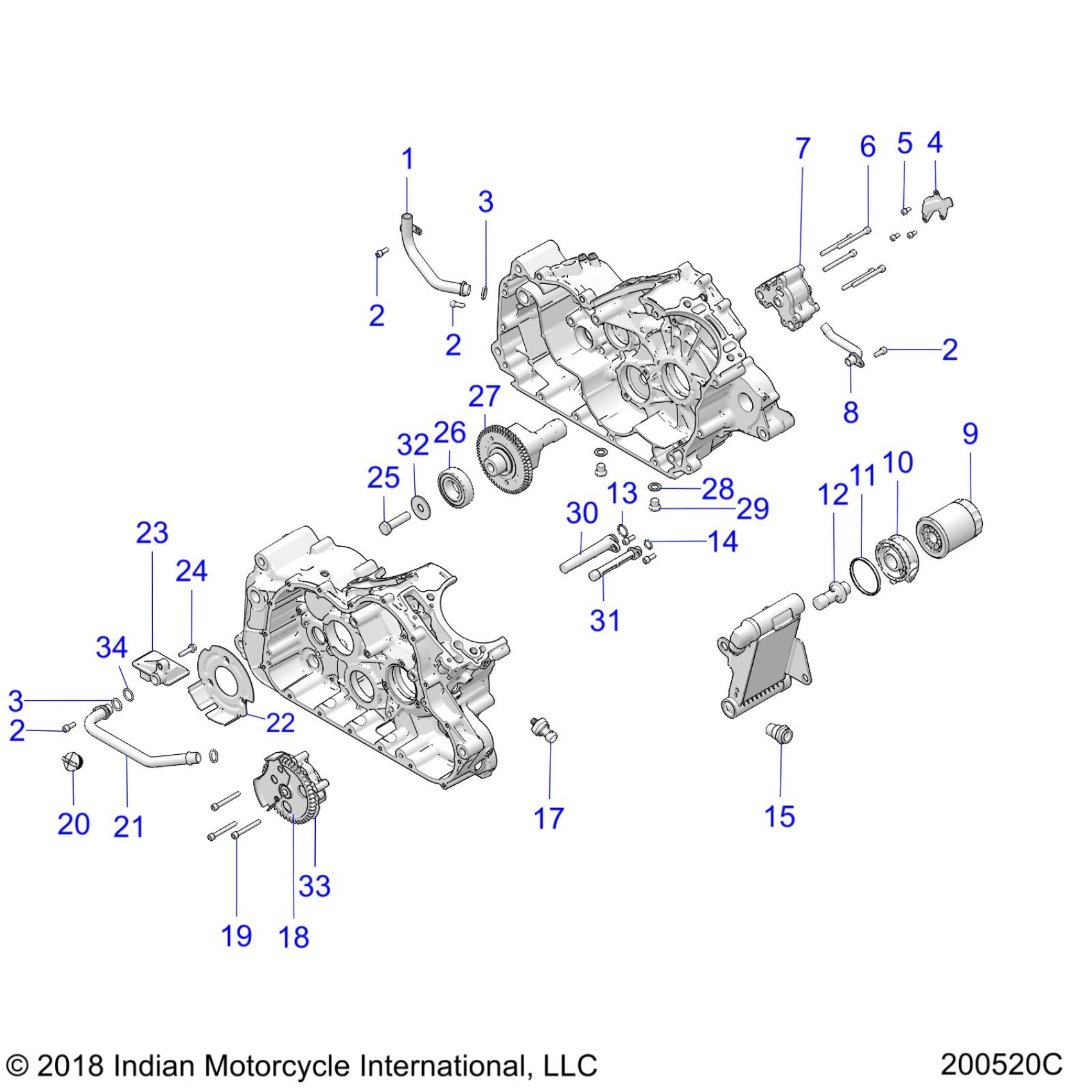

Polaris FTR 1200/FTR 1200 S (R10) - N19RTA22AA/BA/CA/EA/4EA/R22EA/S22AA/C/R/BA/C/R/CA/C/R/EA/C/R/5AC/BC/CC/EC ENGINE, OIL SYSTEM - N19RTA22/RTS22/RTS25 (200520C) Diagram

#

Description
Price

1

TUBE-SCAVENGE OIL RETURN

2521915

$119.99

2

SCR-SH-M6X1.0X15 10.9 ZPC D204

7517775

$5.22

2

SCR-SH-M6X1.0X15 10.9 ZPC D204

7517775

$5.22

2

SCR-SH-M6X1.0X15 10.9 ZPC D204

7517775

$5.22

2

SCR-SH-M6X1.0X15 10.9 ZPC D204

7517775

$5.22

3

O-RING,.612X.818X.103

5413837

$4.84

3

O-RING,.612X.818X.103

5413837

$4.84

4

CLIP-STATOR WIRE,IND

5258718

$12.99

5

SCR-M5X0.8X10 SOC/CP-D

7517847

$3.17

6

SCR-SH-M6X1.0X60 8.8 ZPC

7517270

$4.35

7

ASM-OIL PUMP,DUAL SCAVENGE

1205329

$142.84

8

TUBE-SCAVENGE,INLET

2522090

$48.56

9

FILTER-OIL (10 MICRON)

2540086

$11.90

10

ADAPTER-OIL FILTER

5141707

$40.46

11

SEAL-ADAPTER,OIL FILTER

5416476

$5.56

12

SPIGOT-ADAPTER,OIL FILTER

5141706

$40.46

13

O-RING,-017

5414596

$1.98

14

O-RING 12.42X15.98X1.78

5414100

$0.79

15

E-CLIP QUICKCONNECT

5342231

$5.65

15

FITTING-QC,OIL

2522106

$44.51

17

SENSOR-OIL PRESSURE

4018558

$114.99

18

ASM-OIL PUMP

1205470

Unavailable

19

SCR-SH-M6X1.0X50 8.8 ZPC

7518348

$5.69

20

PLUG-OIL FILL

5454415

Unavailable

21

TUBE-PRESSURE OIL INLET

2521510

$60.70

22

SHIELD-GEAR,CRANK

5258759

$40.46

23

ASM-OIL PICKUP

2521826

$44.99

24

SCR-SOCFLGHD,M6X1.0X25

7520179

$5.56

25

SCR-HEXHD,M12X45,0600088

7518575

$23.81

26

BRG-BALL,6206ZZ,C3,30X62X16

3514886

Unavailable

27

ASM-BALANCE SHAFT

1205739

Unavailable

28

WASHER-19X12X1.3,COPPER

5812232

$1.59

29

PLUG-SOCKET,M12X1.5 DIN 908A

7052306

$15.37

30

SCREEN-OIL INLET,SCAVENGE [INCL. 35]

2521285

$48.56

31

PICKUP-SCAVENGE

2521480

$58.08

32

WASHER-FLAT,13.5X38.5X2.7

7556771

$10.32

33

GEAR-OIL PUMP

5452831

$36.41

34

O-RING,3-908

5416365

$5.56
