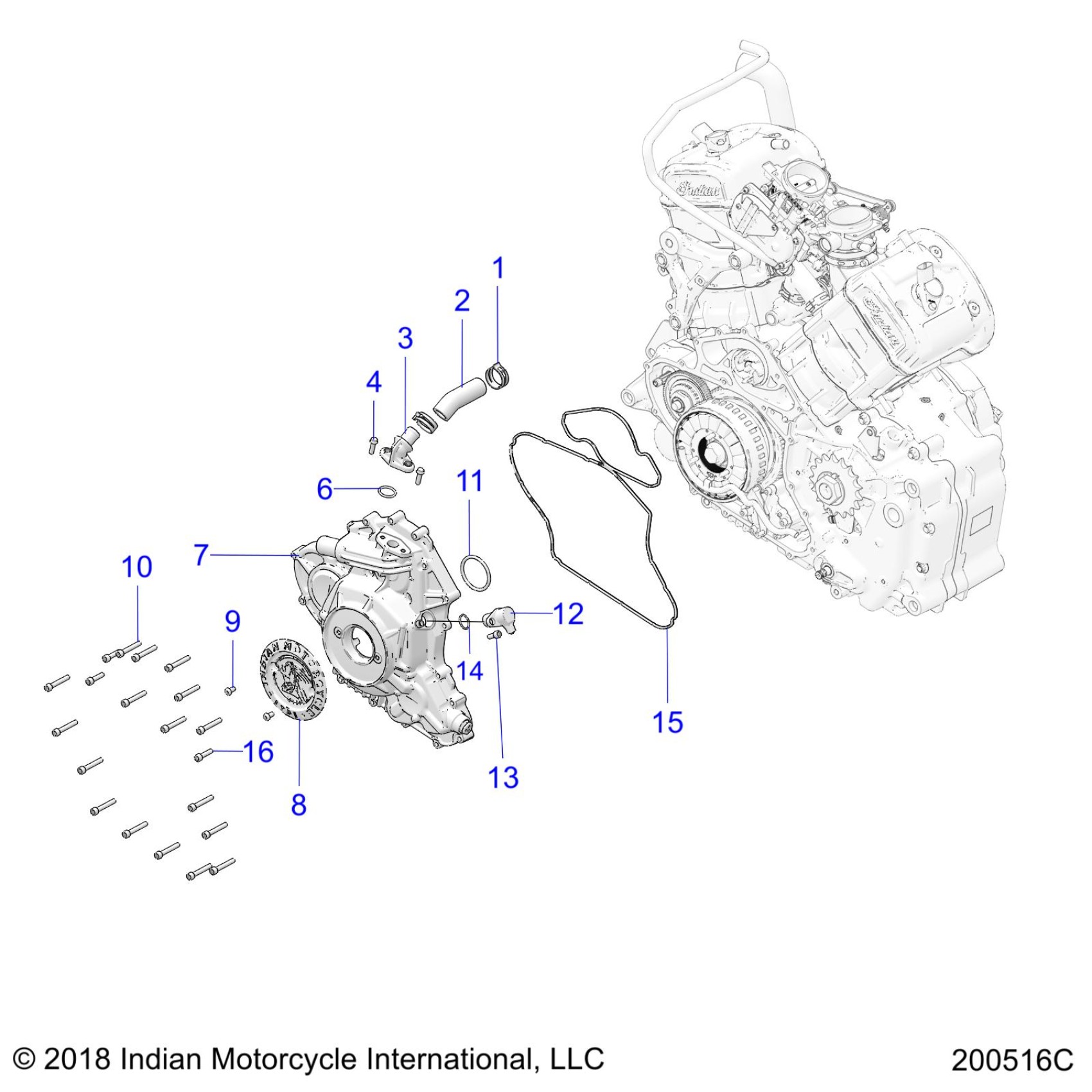

Polaris FTR 1200 CARBON LE (R03) - N20RTR25E8 ENGINE, STATOR COVER - N20RTR25 (200516C) Diagram

#

Description

Price

1

SPRINGBAND-CLAMP 26/12

7081692

$2.74

2

HOSE-COOLANT,BYPASS

5416543

$12.13

3

FITTING-COOLANT,BYPASS

5454710

$36.41

4

SCREW-HXFL-M6X1.0X20 8.8 ZPC

7520035

$4.76

6

O-RING 20.30MMX2.62MM

5413563

$1.60

7

ASSY-COVER-ACG,IND,TNM

1205799-650

$214.99

8

BADGE-COLD START, TNM

5141884-650

$60.70

9

SCREW-HXBH-M6X1.0X12 SS

7520435

$3.17

10

SCREW-SH-M6X1.0X40 10.9 ZPC

7517261

$5.56

11

O-RING,45MMX4MM

5416039

Unavailable

12

SENSOR-CRANK POSITION,445MM

4015068

$135.54

13

SCREW-SH-M6X1.0X15 10.9 ZPC

7517272

$7.84

14

O RING

4015068

$135.54

15

GASKET-STATOR COVER

5414562

Unavailable

16

SCREW-SH-M6X1.0X25 10.9 ZPC

7517259

$5.56
