- FTR 1200 CARBON LE (R03) - N20RTR25E8
ENGINE, EXHAUST ASM - N20RTR25 (200997C)

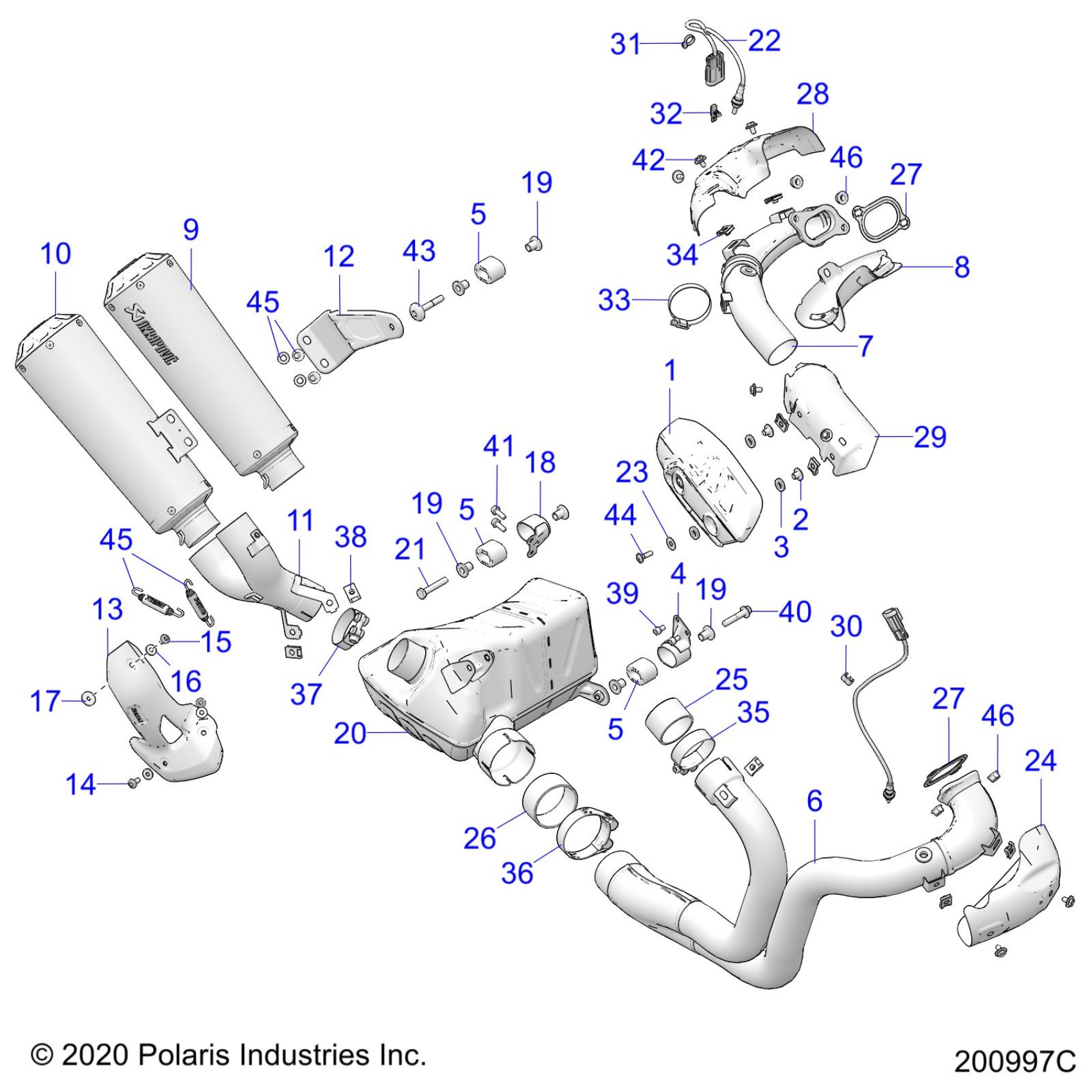

Polaris FTR 1200 CARBON LE (R03) - N20RTR25E8 ENGINE, EXHAUST ASM - N20RTR25 (200997C) Diagram
#
1
ASM-HEATSHIELD,CENTRAL
1263372
Unavailable
2
SPACER,HEAT-SHIELD
5416674
Unavailable
3
WASHER-ISOLATOR,HEAT-SHIELD
7557133
Unavailable
4
ASM-MOUNT,RESONATOR,LH [INCL. 5]
1263248
Unavailable
5
GROMMET-ISOLATOR,RESONATOR
5416612
Unavailable
5
GROMMET-ISOLATOR,RESONATOR
5416612
Unavailable
5
GROMMET-ISOLATOR,RESONATOR
5416612
Unavailable
6
ASM-HEADPIPE,FRONT
1263304
Unavailable
7
ASM-EX-REAR,HEADER [INCL. 8]
1263368
Unavailable
8
WELD-EXH,SHIELD,LWR,REAR
1263371
Unavailable
9
ASM-MUFFLER,UPPER
1263395
Unavailable
9
ASM-MUFFLER,UPPER,BLK
1263395-266
Unavailable
10
ASM-MUFFLER,LOWER
1263396
Unavailable
10
ASM-MUFFLER,LOWER,BLK
1263396-266
Unavailable
11
WELD-EXH TUBE,LOW
1263398
Unavailable
12
ASM-BRKT,EXHAUST,LOW
1263536
Unavailable
13
K-HEAT SHIELD REPLACEMENT, LOW [INCL. 13-17,38]
2208036
Unavailable
14
SCR-HXFL-M6X1.0X12 A2
7521174
Unavailable
15
SCR-HXFL-M6X1.0X16 A2
7521175
Unavailable
16
SPACER-HEATSHIELD 15MM
7521176
Unavailable
17
SPACER-HEATSHIELD 20MM
7521177
Unavailable
18
ASM-MOUNT,RESONATOR,RH
1263249
Unavailable
19
INSERT-EXHAUST,ISOLATOR
5142036
Unavailable
19
INSERT-EXHAUST,ISOLATOR
5142036
Unavailable
19
INSERT-EXHAUST,ISOLATOR
5142036
Unavailable
20
ASM-RESONATOR,WELD [TO 1/18/2021]
1263408
Unavailable
20
ASM., RESONATOR,WELD [FROM 1/18/2021]
1263435
Unavailable
21
SCR-HH M8X1.25X45 8.8 ZOD
7519097
$1.59
22
SENSOR-OXYGEN
4016021
$159.99
23
WASHER
7556565
$2.39
24
HEAT-SHIELD,FRONT
5265785
Unavailable
25
GASKET-EXHAUST,ID51
5267026
Unavailable
26
GASKET-EXHAUST,ID64
5267027
Unavailable
27
GASKET, EXHAUST SEALING
5267312
Unavailable
27
GASKET, EXHAUST SEALING
5267312
Unavailable
28
HEAT-SHIELD,REAR,TOP
5267903
Unavailable
29
HEAT-SHIELD,BASE,CENTRAL
5267905
Unavailable
30
CLIP-BRAKE,TWO-WAY
5455212
Unavailable
31
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
32
CLIP-FIR,HOLE6.35MM
7082134
$3.99
33
CLAMP-WORM DRIVE 2.25 DIA
7082310
Unavailable
34
C-CLIP,M6
7082445
Unavailable
35
CLAMP-EXHAUST,55-59
7082463
Unavailable
36
CLAMP-EXHAUST,68-73
7082464
Unavailable
37
CLAMP-EXHAUST
7082546
Unavailable
38
CLIP-NUT M6X1.0
7082547
Unavailable
39
SCR-SH-M6X1.0X10 8.8 ZPB
7517337
Unavailable
40
SCR-M8X1.25X45 8.8 DOG PT ZPB
7520549
$3.99
41
SCR-SOCFLGHD,M6X1.0X16
7518803
$3.99
42
SCREW-HXFL-M6X1.0X10 8.8 ZPB
7517893
$3.99
43
BOLT-M8,MUFFLER,STYLED,ZNC CLR
7521229
Unavailable
44
SCR-M6X1-20-8.8-BUTTON-FLANGE
7520981
Unavailable
45
K-EXHAUST HARDWARE [INCL. 37,43,45]
2208037
Unavailable
45
SPRING-EXHAUST
7045368
Unavailable
45
K-EXHAUST HARDWARE [INCL. 37,43,45]
2208037
Unavailable
45
SPRING-EXHAUST
7045368
Unavailable
46
NUT-HXFLGHD,M8,0600087
7547014
$7.84
46
NUT-HXFLGHD,M8,0600087
7547014
$7.84
