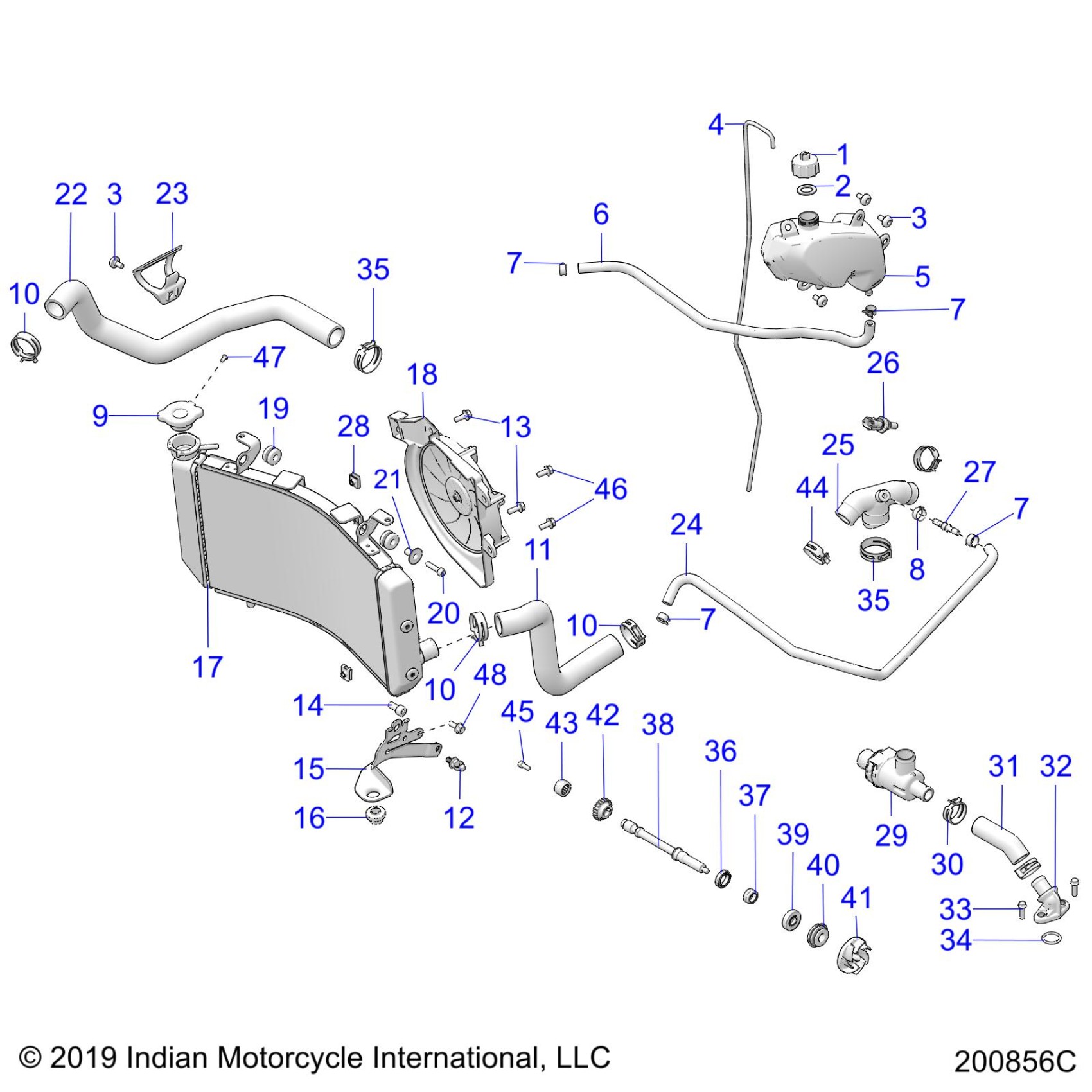

Polaris FTR 1200 CARBON LE (R03) - N20RTR25E8 ENGINE, COOLING - N20RTR25 (200856C) Diagram

#

Description
Price

1

CAP-OVERFLOW BOTTLE,W/FITTING

5437635

$4.84

2

GASKET-OVERFLOW CAP

5810279

$2.41

3

SCREW-M6X1.0,10,HEX,BUT,SHLD,BLK

7519203

$12.99

3

SCREW-M6X1.0,10,HEX,BUT,SHLD,BLK

7519203

$12.99

4

FUEL LINE-70 CENTIMETERS [BULK SVC LENGTH]

8360009-600

Unavailable

5

BOTTLE-COOLANT,RECOVERY

2521982

$72.84

6

FUEL LINE-66 CM

8450120-66

$72.84

7

CLAMP-HOSE,1/2,SPRING-BLK

7082492

$3.17

7

CLAMP-HOSE,1/2,SPRING-BLK

7082492

$3.17

7

CLAMP-HOSE,1/2,SPRING-BLK

7082492

$3.17

7

CLAMP-HOSE,1/2,SPRING-BLK

7082492

$3.17

8

CLAMP-HOSE, 9/16, SPRING-B

7080534

$1.59

9

CAP-PRESSURE,1.1BAR,LOCK,BLK

1241367

$53.24

10

SPRINGBAND-CLAMP 32/12,BLK

7081977

$5.56

10

SPRINGBAND-CLAMP 32/12,BLK

7081977

$5.56

10

SPRINGBAND-CLAMP 32/12,BLK

7081977

$5.56

11

HOSE-RAD,OUT

5416660

$36.41

12

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

13

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.79

14

SCREW-SH-M8X1.25X16 8.8 ZPC

7519894

$4.76

15

BRKT-RADIATOR,BTM

5268115

$36.41

16

BUSHING-MOUNT,TOPHAT

5417018

$2.38

17

RADIATOR-CORE

1241357

$399.99

18

ASM., FAN,160MM

2414502

$198.48

19

ISOLATOR-9.1ID,22.4ODX14.2

5416856

$7.14

20

SCREW-HH-M6X1.0X25 8.8 ZPB

7517510

$5.22

21

SPACER-6.6ID,9.1ODX14.2

5416857

Unavailable

22

HOSE-RAD,IN

5416659

$36.41

23

CLIP-COOLANT LINE

5455730

$6.35

24

HOSE-COOLANT,BLEED

5417059

$40.46

25

JUNCTION-COOLANT

5418558

$14.99

26

SENSOR-THERMISTER

4010644

$91.97

26

O-RING-3/8X1/2X1/16

5142712

$0.79

27

FITTING-STRAIGHT,1/4X1/4,BARB

7052716

$4.76

28

NUT-CLIP,U

7547974

$3.17

29

ASM., THERMOSTAT

1205798

$124.99

30

SPRINGBAND-CLAMP 26/12

7081692

$2.74

31

HOSE-COOLANT,BYPASS

5416543

$12.13

32

FITTING-COOLANT,BYPASS

5454710

$36.41

33

SCREW-HXFL-M6X1.0X20 8.8 ZPC

7520035

$4.76

34

O-RING 20.30MMX2.62MM

5413563

$1.60

35

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.32

35

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.32

36

BEARING-6802,C3,15X24X5

3514878

$33.32

37

NUT-SPC,M14X1.5

7547688

$27.78

38

SHAFT-WATER PUMP

5138723

$40.46

39

SEAL-SHAFT,12X28X7

3610228

$15.87

40

SEAL-WATERPUMP SHAFT,WATER

3610173

$15.87

41

IMPELLER-WATER PUMP

5141334

$32.37

42

ASM., GEAR,DRIVEN,WATERPUMP

1333199

$48.40

43

BEARING-NDL,14X20X12

3514802

$19.84

44

SPRINGBAND-CLAMP 29/12,BLK

7080842

$7.14

45

SCREW-SH-M5X0.8X12 10.9 ZPC D204

7517276

$7.14

46

SCREW-HXFL-M6X1.0X14, 8.8 ZPB

7520143

$3.97

47

SCREW-HXBH-M4X0.7X8 10.9 ZPB

7517486

$5.22

48

SCREW-HXFL-M6X1.0X20 8.8 ZPB

7520122

$4.76
