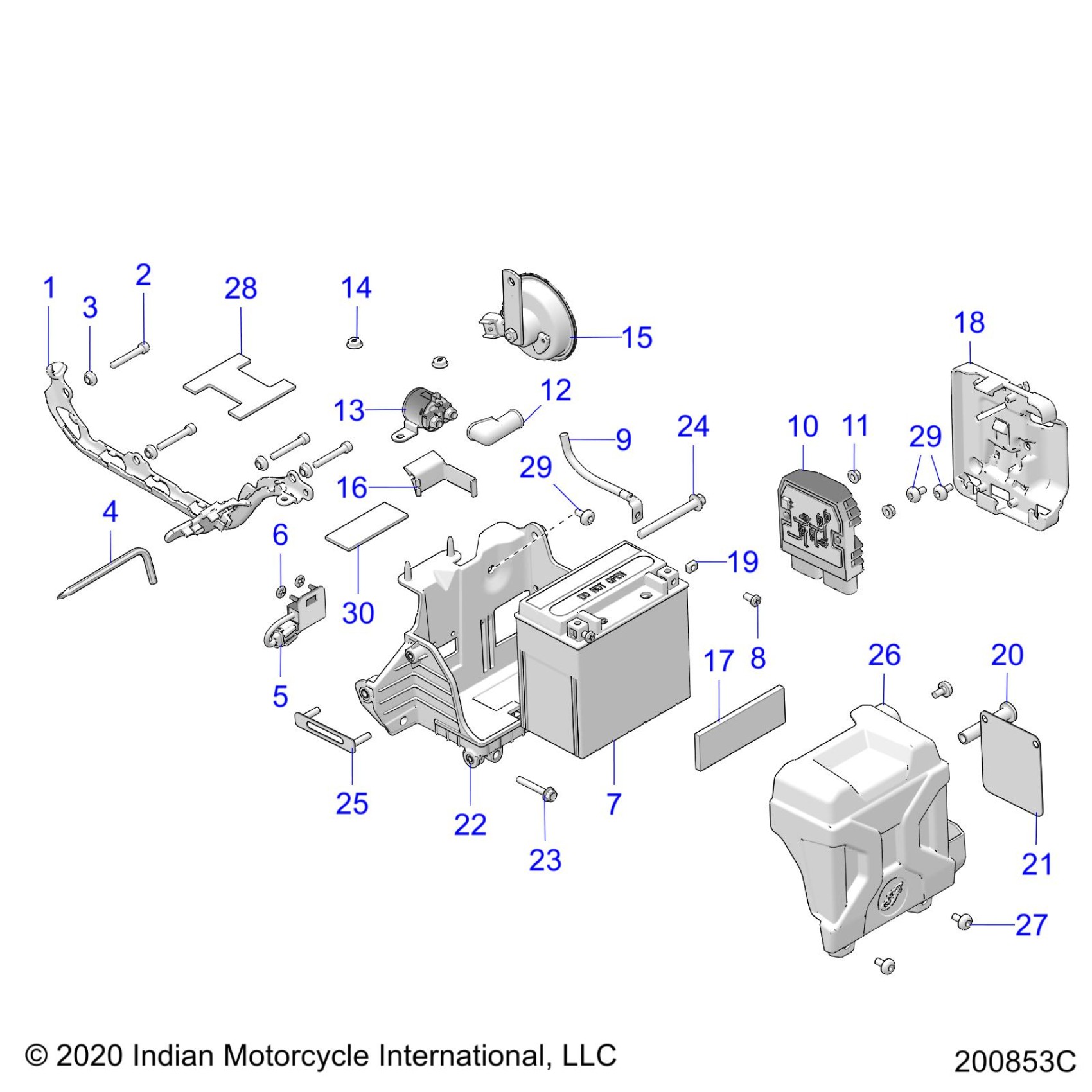

Polaris FTR 1200 CARBON LE (R03) - N20RTR25E8 ELECTRICAL, BATTERY - N20RTR25 (200853C) Diagram

#

Description
Price

1

RETAINER-CABLE, STATOR

5455525

$23.81

2

SCREW-SH-M6X1.0X40 10.9 ZPC

7517261

$5.56

3

LIMITER-COMPRESSION, RETAINER

5142466

$2.38

4

WRENCH-CRUISER,HEX/PHILLIPS

5334438

$3.97

5

SENSOR-ANGLE,65 DEGREE

4017979

$96.81

6

RING-RETAINING,4MM STUD

7710751

$3.97

7

BATTERY-12V240CCA,12AH,YTX14H

4017581

Unavailable

8

SCREW-PHHX-M6X1X12,LPS,BATTERY

7520056

$3.17

9

CABLE-GROUND,TRK,V

4017582

$36.41

10

REGULATOR-3PH,35A,SERIES,105C

4012941

$284.99

11

NUT-HXFL-M6X1.0 10 ZPB

7710495

$5.22

12

BOOT,BTTRY CABLE,RED,POS

5411570

$7.27

13

SOLENOID, STARTER,C1100,W/WASHER

4014471

$47.60

14

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.19

15

HORN-DISK,LOWTONE,TVX,50FK

4017857

Unavailable

16

RETAINER-WIRES,POWER

5455666

$7.14

17

PAD-BATTERY, FRONT

5814831

$6.46

18

MOUNT-ECM

5454542

$28.32

19

NUT-RECT,M6X1,LPS,BATTERY

7547732

$3.97

20

TOPHAT-CRANKCASE,LH

5142198

$13.75

21

PLATE-BACKER, VOLTAGE REG

5265992

$6.46

22

TRAY-BATTERY

5265020

$93.08

23

SCREW-HXFL-M6X1.0X40 8.8 ZPB

7518579

$3.97

24

SCREW-HXFL-M8X1.25X75,10.9,ZPC

7519948

$3.97

25

STUD-MOUNTING,VOLTAGE REG

5265993

$23.81

26

COVER-BATTERY

5268451

$72.84

27

SCREW-HXBH-M6X1.0X10 8.8 ZPB SPC

7521013

$3.97

28

PAD-FUEL TANK

5814857

$6.76

29

SCREW-M6X1.0,10,HEX,BUT,SHLD,BLK

7519203

$12.99

29

SCREW-M6X1.0,10,HEX,BUT,SHLD,BLK

7519203

$12.99

30

PAD-BATTERY

5814119

$4.99
