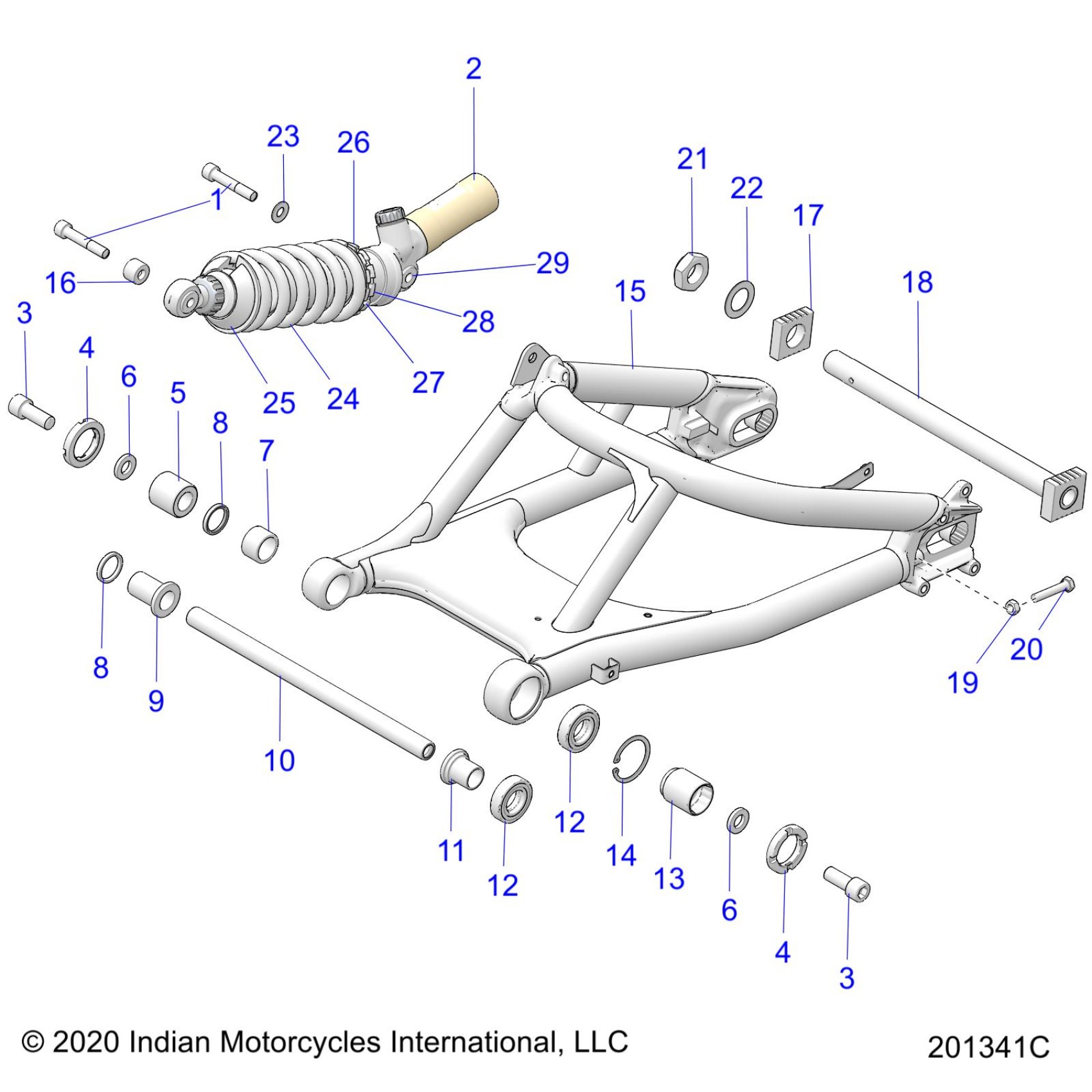

Polaris FTR 1200 CARBON ALL OPTIONS (R03) - N22RZR25A8/B8/C8/E8 SUSPENSION, REAR SWING ARM/SHOCK - N22RZR25 (201341C) Diagram

#

Description
Price

1

SCREW-SH-M10X1.5X55 10.9 SPCL

7521017

$4.76

2

ASM-SHOCK,ELITE,YELLOW

1824984-838

$1,259.99

3

SCREW-SH-M14X2X35 10.9 ZPC D204

7521139

$8.08

3

SCREW-SH-M14X2X35 10.9 ZPC D204

7521139

$8.08

4

RING-LOCK,PIVOT

5142051

$23.81

4

RING-LOCK,PIVOT

5142051

$23.81

5

ADJUSTER-PIVOT,RH

5142050

$39.68

6

WASHER-14.5X26.4X4 ZPC

7557189

$4.76

6

WASHER-14.5X26.4X4 ZPC

7557189

$4.76

7

BEARING-NEEDLE ROLLER,HK2520

3514413

$19.84

8

SEAL-SD25X32X4

3610096

$11.90

8

SEAL-SD25X32X4

3610096

$11.90

9

BUSH-PIVOT,RH

5141833

$31.75

10

SHAFT-PIVOT

5143590

$94.99

11

BUSH-PIVOT,LH

5141731

$23.81

12

BEARING,BALL,47X25X12,6005-2RS

3514549

$23.81

12

BEARING,BALL,47X25X12,6005-2RS

3514549

$23.81

13

ADJUSTER-PIVOT,LH

5142049

$39.68

14

RING-SNAP,DIN472,47X1.75MM

7710677

$5.65

15

ASM-SWINGARM,STEEL,IND RED (INCL. 7,8,12,14)

1025419-639

$594.99

15

K-BEARINGS,SWING-ARM (INCL. 7,8,9,12)

2208038

$94.99

16

BUSH-SHOCK,FLOATING

5142556

$19.84

17

PLATE-ADJUSTER,AXLE,RH

5141735

$32.37

18

ASM-AXLE,REAR

1544690

$148.40

19

NUT-HEX-M8X1.25 8 ZPB.

7547076

$2.60

20

SCREW-HH M8X1.25X45 SPCL

7520973

$3.97

21

NUT-HEX,M24X2,LOCK

7548017

$27.78

22

WASHER-25X40X1.2 ZPC

7557132

$3.97

23

WASHER-10.5X22.0X1.6 SPC

7556155

$5.22

24

K-SPRING-REAR,110,OHLINS,YELLOW

2208824-838

$339.99

25

K-RETAINER-SPRING,SHOCK,ELITE

2208834

$56.65

26

K-COLLAR-SHOCK,UPPER,ELITE

2208837

$48.56

27

K-COLLAR-SHOCK,LOWER,ELITE

2208836

$214.99

28

K-WASHER-SPRING,ELITE

2208835

$32.37

29

K-BALL-JOINT,SHOCK,ELITE

2208866

$60.70
