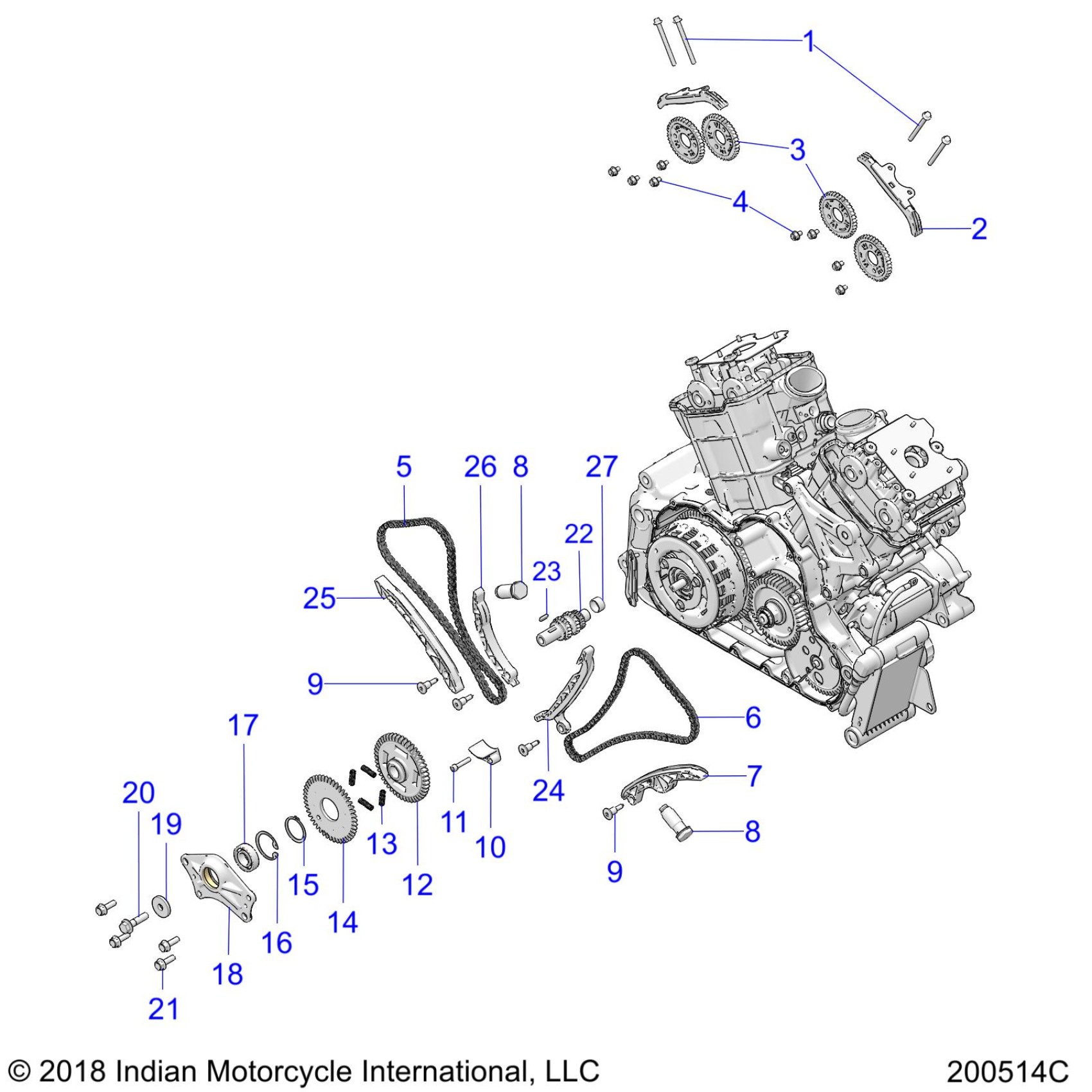

Polaris FTR 1200 CARBON ALL OPTIONS (R03) - N22RZR25A8/B8/C8/E8 ENGINE, CAM CHAINS AND SPROCKETS - N22RZR25 (200514C) Diagram

#

Description
Price

-

ASM., GEAR, CAM IDLER (INCL. 12-15)

1333533

Unavailable

1

SCR-HXFL M6X1.0X70 B18.2.3.4M

7520688

$10.32

2

GUIDE, CAM CHAIN, FIXED, COVER

3022742

$32.37

3

SPROCKET, CAM, DRIVEN

3222227

$48.40

4

SCREW-HXFL,M6X1.0X10 10.9

7519164

$3.97

5

CHAIN-CAM,SILENT,6.35 PITCH

3222212

Unavailable

6

CHAIN-CAM,SILENT,6.35 PITCH

3222212

Unavailable

7

GUIDE-CAM CHAIN,TENSIONER,F

3023998

$54.99

8

TENSION-CAM,CHAIN,HYD

3023997

Unavailable

8

TENSION-CAM,CHAIN,HYD

3023997

Unavailable

9

SCREW-TXPH-M6X1.0X14 8.8 A2K SHB

7519165

$13.49

9

SCREW-TXPH-M6X1.0X14 8.8 A2K SHB

7519165

$13.49

10

GUIDE, CAM CHAIN, LOWER

3022691

$24.27

11

SCREW-SH-M6X1.0X30 10.9 ZPC

7517301

$2.99

12

GEAR-DRIVEN,CAM IDLER [NOT AVAILABLE: MUST ORDER 1333533 ASM]

----

Unavailable

13

SPRING-SPLIT GEAR [NOT AVAILABLE: MUST ORDER 1333533 ASM]

----

Unavailable

14

GEAR-SPLIT [NOT AVAILABLE: MUST ORDER 1333533 ASM]

----

Unavailable

15

RING-RETAINING,EXTERNAL,38MM [NOT AVAILABLE: MUST ORDER 1333533 ASM]

----

Unavailable

16

RING-RTNG,INT,42X1.72,0600097

7670149

$7.14

17

BEARING-BALL,20X42X12

3514801

$15.87

18

PLATE,BEARING SUPPORT,MACH (INCL. WITH 1205769-650)(SEE "ENGINE, CASE ASM.")

----

Unavailable

19

WASHER, CAM RETAINING

7556871

$7.14

20

SCREW-HXFLM10X1.5X40,10.9,P&OP80

7519763

$5.56

21

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

22

ASM., SHAFT, CAM DRIVE (INCL. 23)

1205243

$121.02

23

KEY, ROUND END

7710623

$4.84

24

GUIDE, CAM CHAIN, FIXED, FRONT

3022620

$36.41

25

GUIDE, CAM CHAIN, FIXED, REAR

3022577

$32.37

26

GUIDE-CAM CHAIN,TENSIONER,R

3023999

$124.99

27

BEARING, CAM IDLER

3514820

$34.90
