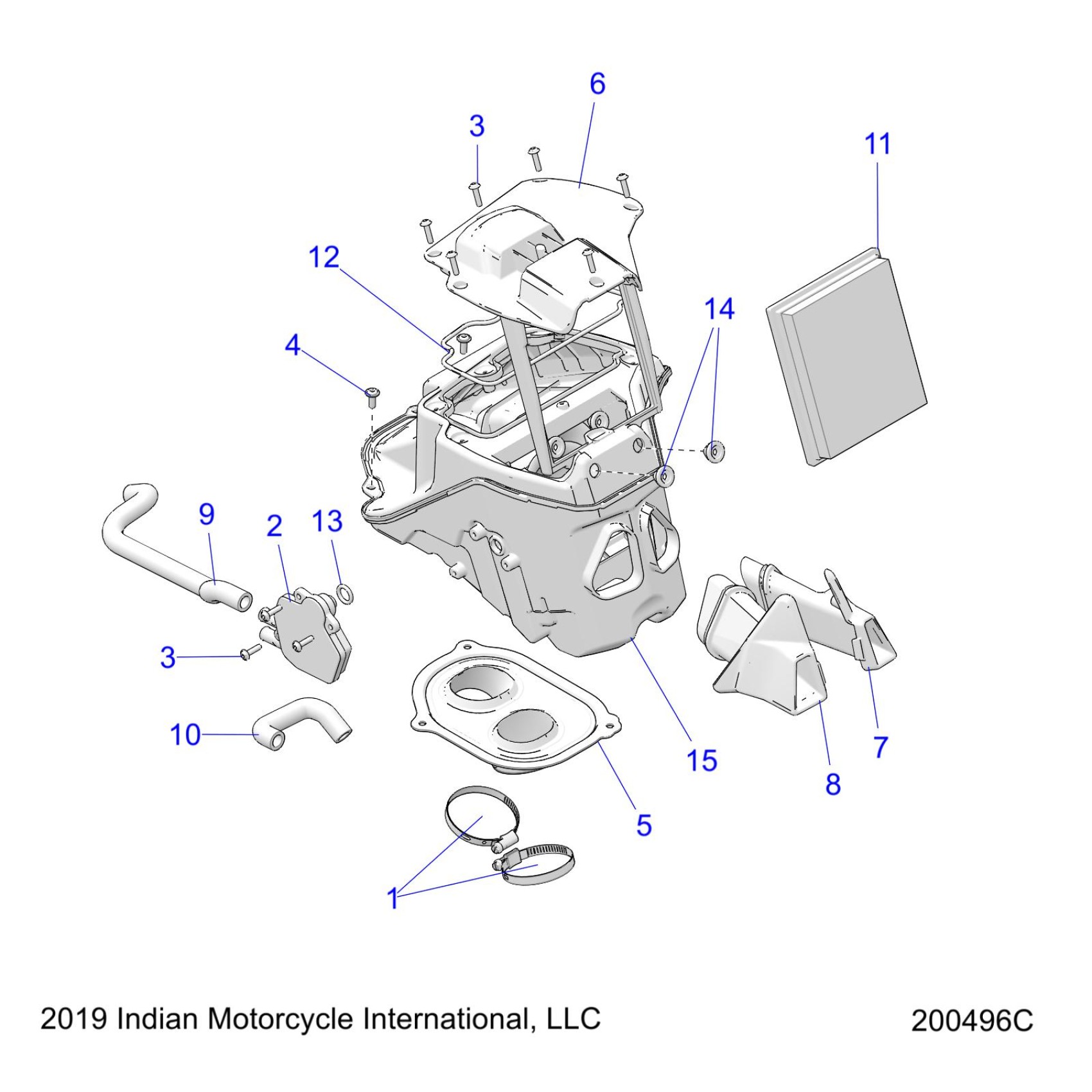

Polaris FTR 1200 CARBON ALL OPTIONS (R03) - N22RZR25A8/B8/C8/E8 ENGINE, AIR INTAKE - N22RZR25 (200496C) Diagram

#

Description
Price

1

CLAMP-NARROW,SLOTTED 50-70MM

7082473

$7.84

2

SEPARATOR-OIL,E5

2522336

$32.37

3

SCREW-PLASTITE,5.0MMX20-PN-T25

7519952

$3.97

3

SCREW-PLASTITE,5.0MMX20-PN-T25

7519952

$3.97

4

SCREW-M6X1-16-8.8-BUTTON-FLANGE

7520982

$3.97

5

ADAPTOR-INLET,AIRBOX,E5

5417373

$80.94

6

COVER,AIR-FILTER,E5

5457154

$134.99

7

AIR-INLET-LH-E5

5417375

$33.32

8

AIR-INLET-RH-E5

5417374

$33.32

9

HOSE-BREATHER,REAR

5416672

$40.46

10

HOSE-BREATHER,FRONT

5416673

$32.37

11

K-FILTER,AIR,E5

2208939

$30.54

12

SEAL-AIRBOX,COVER

3610321

$23.81

13

O-RING,SEAL

3610320

$7.94

14

GROMMET-ISOLATOR

5416609

$4.76

15

ASM-AIR BOX,E5 (INCL. 6,11,12,14)

1206245

$198.48

15

BOX-AIR,INTAKE,E5

1206244

$104.75
