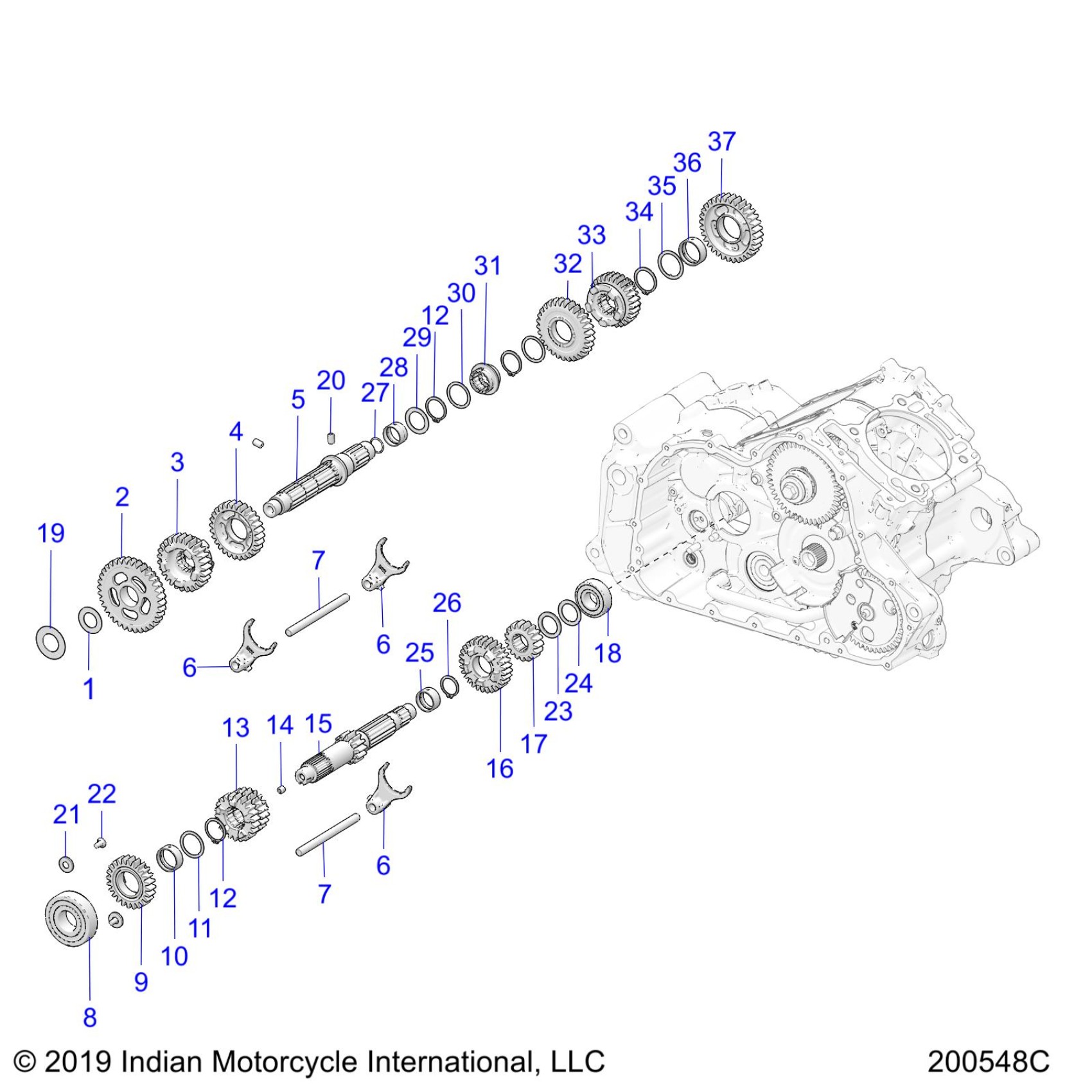

Polaris FTR 1200 CARBON ALL OPTIONS (R03) - N22RZR25A8/B8/C8/E8 DRIVE TRAIN, INPUT AND OUTPUT SHAFTS - N22RZR25 (200548C) Diagram

#

Description
Price

-

ASM-INPUT,6 SPEED (INCL. 9-17,23-26)

1334509

$644.99

-

ASM-OUTPUT,6 SPEED (INCL. 1-5,12,27-37)

1334510

$854.99

1

WSHR-FLAT, 20.2X35X0.8

7556909

$4.76

2

GEAR, OUTPUT, 1ST

6230938

$198.48

3

GEAR, 5TH, OUTPUT

6230847

$188.79

4

GEAR-4TH,OUTPUT

6231156

$188.79

5

SHAFT, OUTPUT

6230848

$274.99

6

FORK-SHIFT,2ND/4TH

5138520

$72.60

6

FORK-SHIFT,2ND/4TH

5138520

$72.60

6

FORK-SHIFT,2ND/4TH

5138520

$72.60

7

RAIL, SHIFT FORK

5138750

$28.32

7

RAIL, SHIFT FORK

5138750

$28.32

8

BRG-BALL,63/28ZZ,C0,28X68X18

3514884

$38.08

9

GEAR-5TH,INPUT

6231157

$198.48

10

BUSHING-PLAIN,28X32

6230940

$19.84

11

WSHR-FLAT,28X35

7556903

$7.14

12

RING, RETAINING, EXT. 28MM

7710801

$10.32

12

RING, RETAINING, EXT. 28MM

7710801

$10.32

13

GEAR-3RD/4TH,INPUT

6231151

$198.48

14

PLUG-OIL,M8-1.25X8

2521423

$40.46

15

SHAFT-INPUT/1ST GEAR,6 SPD

6230839

$194.99

16

GEAR-6TH,INPUT

6231152

$150.06

17

GEAR, 2ND, INPUT

6230835

$174.27

18

BRG-BALL,6204,C3,ZZ,20X47X14

3514810

Unavailable

19

PLATE, OIL DEFLECTOR

5259394

$6.46

20

RESTRICTOR-OIL,1MM

5138744

$28.32

21

PLATE, BEARING RETAINER

5138188

$4.76

22

SCREW-M6X12 TORX DR FH

7517598

$11.33

23

WSHR-FLAT,25X34X2

7556904

$5.56

24

WSHR-FLAT 24.4X34X1

7556905

$4.76

25

BUSH-PLAIN,24X28

6230837

$26.17

26

RING-RTNG,EXT .91

7710802

$5.56

27

O-RING-17.5X1.5,HNBR

5415457

$7.14

28

BUSHING-PLAIN,24X27

6230939

$19.84

29

WSHR-FLAT,24X35

7556906

$4.76

30

WSHR-FLAT-TOOTH,28X35

7556908

$4.76

31

BUSHING, SPLINED

6230846

$71.41

32

GEAR-3RD,OUTPUT

6231154

$135.54

33

GEAR, 6TH, OUTPUT

6231054

$174.27

34

RING, RETAINING, EXT. 30MM

7710803

$5.56

35

WSHR-FLAT-TOOTH,30X38

7556907

$4.76

36

BUSH-PLAIN,34MM

6230845

$33.32

37

GEAR-2ND,OUTPUT

6231153

$159.75
