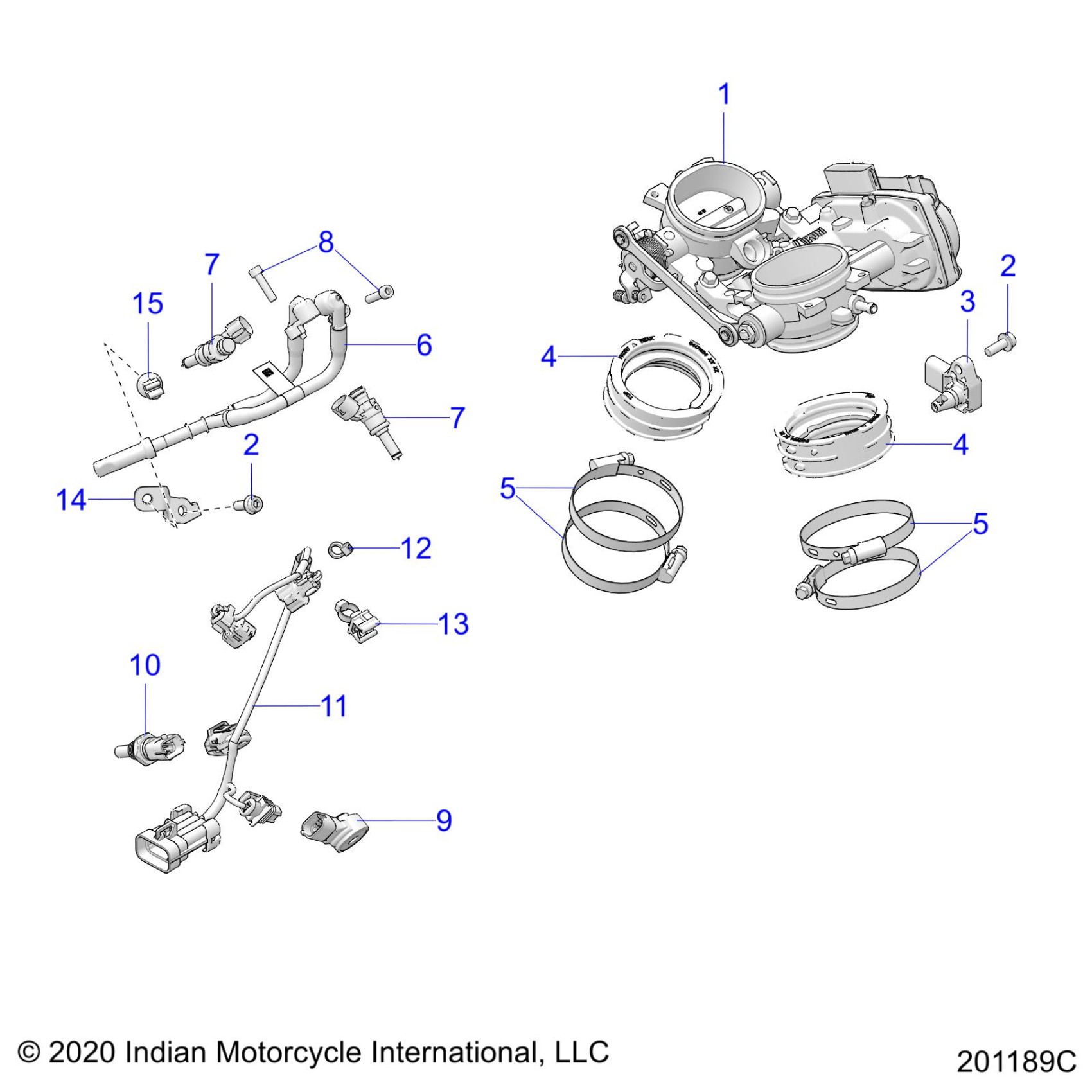

Polaris FTR 1200 ALL OPTIONS (R09) - N22RTE25AV/BV/CV/EV/ZA22A4/G/B4/G/C4/G/E4/S25AF/M/BF/M/CF/M/EF/G/M ENGINE, THROTTLE BODY AND FUEL RAIL - N22RZA22/RZS25/RTE25 (201189C) Diagram

THROTTLE,DUAL BORE,52MM,ETC

1206238

Unavailable

SCREW-SOCFLGHD,M6X1.0X16

7518803

$3.99

SCREW-SOCFLGHD,M6X1.0X16

7518803

$3.99

SENSOR-TMAP

2413061

Unavailable

ADAPTER-THROTTLE BODY

5417364

Unavailable

ADAPTER-THROTTLE BODY

5417364

Unavailable

CLAMP-NARROW,SLOTTED 50-70MM

7082230

$6.39

CLAMP-NARROW,SLOTTED 50-70MM

7082230

$6.39

RAIL-FUEL,V-TWIN,4-BAR

2522333

Unavailable

INJECTOR-FUEL,EV-SE,EXT-TIP

2522332

Unavailable

O-RING BOSCH,EV-SE,UPPER (BLUE - 1 PER INJECTOR)

5416412

$7.19

O-RING BOSCH,EV-SE,LOWER (BLACK - 1 PER INJECTOR)

5416413

$7.19

INJECTOR-FUEL,EV-SE,EXT-TIP

2522332

Unavailable

O-RING BOSCH,EV-SE,UPPER (BLUE - 1 PER INJECTOR)

5416412

$7.19

O-RING BOSCH,EV-SE,LOWER (BLACK - 1 PER INJECTOR)

5416413

$7.19

SCR-SH-M5X0.8X20 8.8 ZB3

7520113

$3.19

SENSOR-KNOCK BOSCH

2413713

$59.99

SENSOR-THERMISTER

4010644

$87.13

HARNESS-AP SENSOR JUMPER (INCL. 12,13)

2415446

Unavailable

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

BRKT-SUPPORT,FUEL,INLET

2522005

Unavailable

CLIP-ROUTING,8

5454313

Unavailable
