Description

Price

1

ASM., HEATSHIELD,CENTRAL

1263372

$43.56

2

SPACER,HEAT-SHIELD

5144768

$9.52

3

WASHER-ISOLATOR,HEAT-SHIELD

7558792

$3.97

3

WASHER-ISOLATOR,HEAT-SHIELD

7558792

$3.97

4

ASM., HEAT SHIELD,MUFFLER (INCL. 5)

1263216

$91.97

4

ASM., HEAT SHIELD,MUFFLER (INCL. 5)

1263216

$91.97

5

GROMMET-HEAT-SHIELD,MUFFLER

5416610

$4.76

6

ASM-HEADPIPE,REAR

1263463

$554.99

7

ASM-MUFFLER,BLK (INCL. 8-10)

1263581-463

$719.99

8

TIP-MUFFLER,TOP

1263295

$125.86

9

TIP-MUFFLER,BTM

1263296

$125.86

10

SCREW-M5X.8X16 TX BTN PIN-IN-HD

7520360

$3.17

11

ASM-RESONATOR,MOUNT,LH (INCL. 12)

1263635

$109.99

12

GROMMET-ISOLATOR,RESONATOR

5417643

$5.56

12

GROMMET-ISOLATOR,RESONATOR

5417643

$5.56

13

ASM-RESONATOR,MOUNT,RH (INCL. 12)

1263636

$84.99

14

SENSOR, OXYGEN

4016021

$169.98

14

SENSOR, OXYGEN

4016021

$169.98

15

INSERT-EXHAUST,ISOLATOR

5142036

$4.03

16

GASKET-EXHAUST,PORT

5271218

$43.65

16

GASKET-EXHAUST,PORT

5271218

$43.65

17

HEAT-SHIELD,CENTRAL,STEEL

5268829

$43.56

18

HEAT-SHIELD,FRONT

5269140

$64.99

19

HEAT-SHIELD,REAR,TOP

5269379

$69.99

20

GROMMET-ISOLATOR,RESONATOR

5416612

$23.81

21

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

22

CLIP-FIR,HOLE6.35MM

7082134

$3.97

23

C-CLIP,M6

7082445

$3.97

23

C-CLIP,M6

7082445

$3.97

23

C-CLIP,M6

7082445

$3.97

23

C-CLIP,M6

7082445

$3.97

23

C-CLIP,M6

7082445

$3.97

25

CLAMP-EXHAUST

7082628

$35.71

26

SCREW-HXBH-M6X1.0X10 10.9 ZPC

7517406

$4.76

27

SCR-HXFL-M6X1.0X10 8.8 ZPC

7518140

$3.17

27

SCR-HXFL-M6X1.0X10 8.8 ZPC

7518140

$3.17

27

SCR-HXFL-M6X1.0X10 8.8 ZPC

7518140

$3.17

28

SCREW-SOCFLGHD,M6X1.0X16

7518803

$3.97

28

SCREW-SOCFLGHD,M6X1.0X16

7518803

$3.97

29

SCREW-M6X1-20-8.8-BUTTON-FLANGE

7520981

$3.97

30

BOLT-M8,MUFFLER,STYLED,ZNC CLR

7521229

$5.99

31

NUT-HXFLGHD,M8,0600087

7547014

$7.84

31

NUT-HXFLGHD,M8,0600087

7547014

$7.84

32

WASHER-6.4X18.0X1.6 ZC

7556565

$2.38

33

ASM-RESONATOR,COLLECTOR,NA

1263578

$1,429.99

33

ASM-RESONATOR,COLLECTOR (INTL.)

1263465

$2,484.99

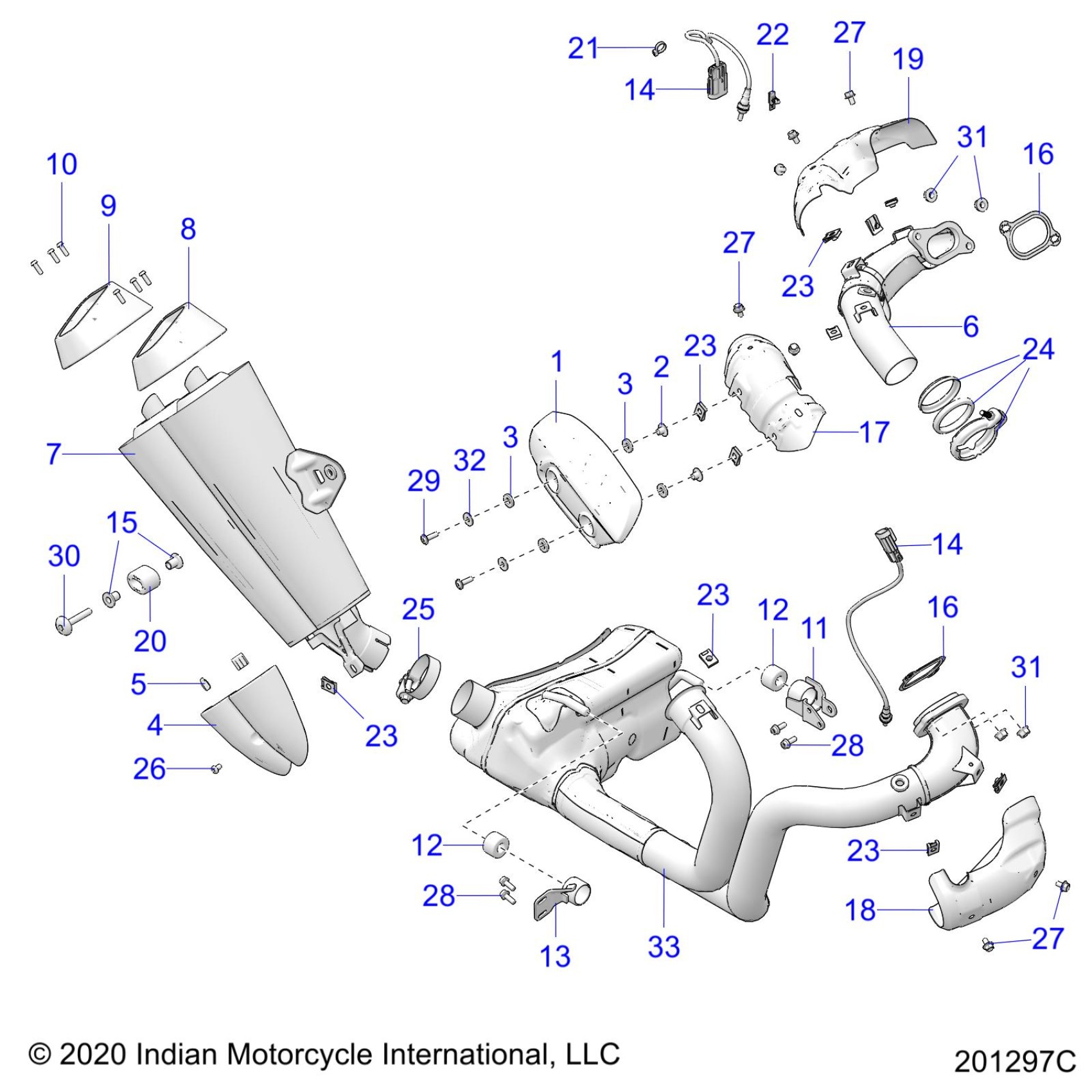

Polaris FTR 1200 ALL OPTIONS (R09) - N22RTE25AV/BV/CV/EV/ZA22A4/G/B4/G/C4/G/E4/S25AF/M/BF/M/CF/M/EF/G/M ENGINE, EXHAUST ASM (FTR 1200) - N22RZA22 (201297C) Diagram

ASM., HEATSHIELD,CENTRAL

SPACER,HEAT-SHIELD

WASHER-ISOLATOR,HEAT-SHIELD

WASHER-ISOLATOR,HEAT-SHIELD

ASM., HEAT SHIELD,MUFFLER (INCL. 5)

ASM., HEAT SHIELD,MUFFLER (INCL. 5)

GROMMET-HEAT-SHIELD,MUFFLER

ASM-HEADPIPE,REAR

ASM-MUFFLER,BLK (INCL. 8-10)

TIP-MUFFLER,TOP

TIP-MUFFLER,BTM

SCREW-M5X.8X16 TX BTN PIN-IN-HD

ASM-RESONATOR,MOUNT,LH (INCL. 12)

GROMMET-ISOLATOR,RESONATOR

GROMMET-ISOLATOR,RESONATOR

ASM-RESONATOR,MOUNT,RH (INCL. 12)

SENSOR, OXYGEN

SENSOR, OXYGEN

INSERT-EXHAUST,ISOLATOR

GASKET-EXHAUST,PORT

GASKET-EXHAUST,PORT

HEAT-SHIELD,CENTRAL,STEEL

HEAT-SHIELD,FRONT

HEAT-SHIELD,REAR,TOP

GROMMET-ISOLATOR,RESONATOR

CABLE-TIE,DIA12-50MM,WTHR-RES.

CLIP-FIR,HOLE6.35MM

C-CLIP,M6

C-CLIP,M6

C-CLIP,M6

C-CLIP,M6

C-CLIP,M6

CLAMP-EXHAUST

SCREW-HXBH-M6X1.0X10 10.9 ZPC

SCR-HXFL-M6X1.0X10 8.8 ZPC

SCR-HXFL-M6X1.0X10 8.8 ZPC

SCR-HXFL-M6X1.0X10 8.8 ZPC

SCREW-SOCFLGHD,M6X1.0X16

SCREW-SOCFLGHD,M6X1.0X16

SCREW-M6X1-20-8.8-BUTTON-FLANGE

BOLT-M8,MUFFLER,STYLED,ZNC CLR

NUT-HXFLGHD,M8,0600087

NUT-HXFLGHD,M8,0600087

WASHER-6.4X18.0X1.6 ZC

ASM-RESONATOR,COLLECTOR,NA

ASM-RESONATOR,COLLECTOR (INTL.)
