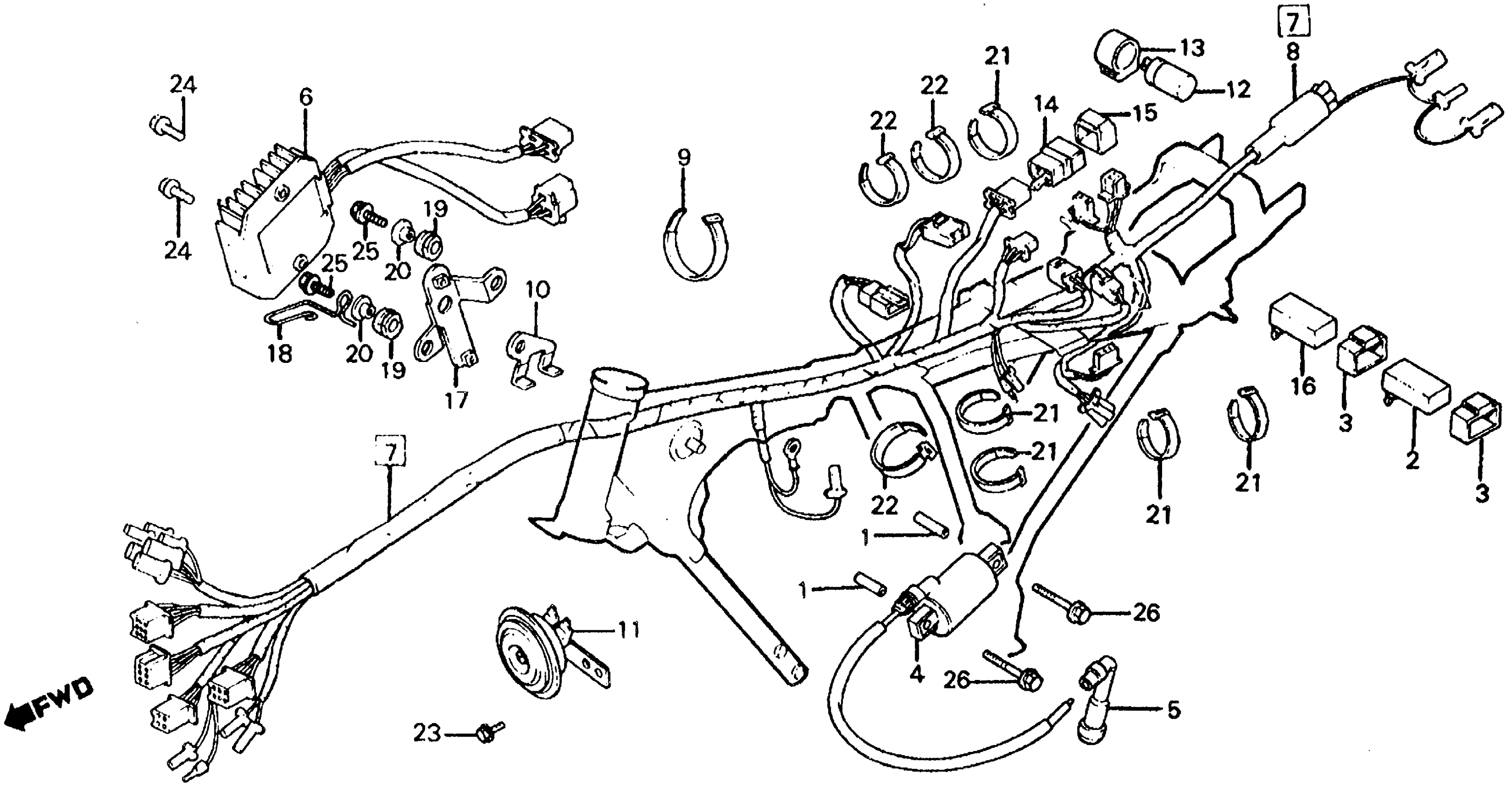

Honda FT500A (83) ASCOT, JPN, VIN# JH2PC070-DM000001 TO JH2PC070-DM002498 WIRE HARNESS Diagram

#

Description
Price

1

COLLAR, AIR CLEANER BRACKET (NOT AVAILABLE)

17202-415-000

Unavailable

2

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)

30401-MC8-003

Unavailable

3

SUSPENSION, IGNITION CONTROL MODULE (NOT AVAILABLE)

30406-MC8-000

Unavailable

4

SET,IGN COIL This part replaces 30500-437-010.

30500-KB1-305

Unavailable

5

CAP ASSY., NOISE SUPPRESSOR

30700-MC8-000

Unavailable

6

RECTIFIER ASSY., REGULATOR

31600-KV8-681

Unavailable

6

RECTIFIER ASSY., REGULATOR This part replaces 31600-413-008.

31600-KV8-681

Unavailable

7

WIRE HARNESS (NOT AVAILABLE)

32100-MC8-000

Unavailable

8

COVER, WIRE HARNESS CONNECTOR

32108-046-000

Unavailable

9

BAND, WIRE

32161-399-000

Unavailable

10

CLIP A, WIRE HARNESS (NOT AVAILABLE)

32812-471-000

Unavailable

11

HORN This part replaces 38110-MB6-671.

38110-ML8-711

Unavailable

11

HORN This part replaces 38110-MC8-000.

38110-ML8-711

Unavailable

12

RELAY, TURN SIGNAL This part replaces 38300-415-P00.

38300-MG2-008

Unavailable

12

RELAY, TURN SIGNAL This part replaces 38300-415-004.

38300-MG2-008

Unavailable

12

RELAY, TURN SIGNAL This part replaces 38300-415-671.

38300-MG2-008

Unavailable

12

RELAY, TURN SIGNAL This part replaces 38301-415-004.

38300-MG2-008

Unavailable

13

SUSPENSION, TURN SIGNAL RELAY

38306-292-000

$3.76

14

RELAY, SOLENOID (NOT AVAILABLE)

38500-473-305

Unavailable

14

RELAY, SOLENOID (NOT AVAILABLE) This part replaces 38501-473-008.

38500-473-305

Unavailable

15

SUSPENSION, STARTER RELAY (NOT AVAILABLE)

38506-187-701

Unavailable

16

CONTROL UNIT, STARTER (NOT AVAILABLE)

38901-MC8-003

Unavailable

17

STAY, REGULATOR (NOT AVAILABLE)

50132-MC8-000

Unavailable

18

GUIDE, TACHOMETER CABLE (NOT AVAILABLE)

50726-MC8-000

Unavailable

19

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

20

WASHER, FR. COVER SETTING

90501-124-000

$3.74

21

BAND B1, WIRE

32161-404-000

$2.23

21

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

22

BAND A2, WIRE

95014-61200

$2.33

23

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

23

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

24

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

24

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

25

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

25

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

26

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

26

BOLT, FLANGE (6X40)

95701-06040-00

$1.80
