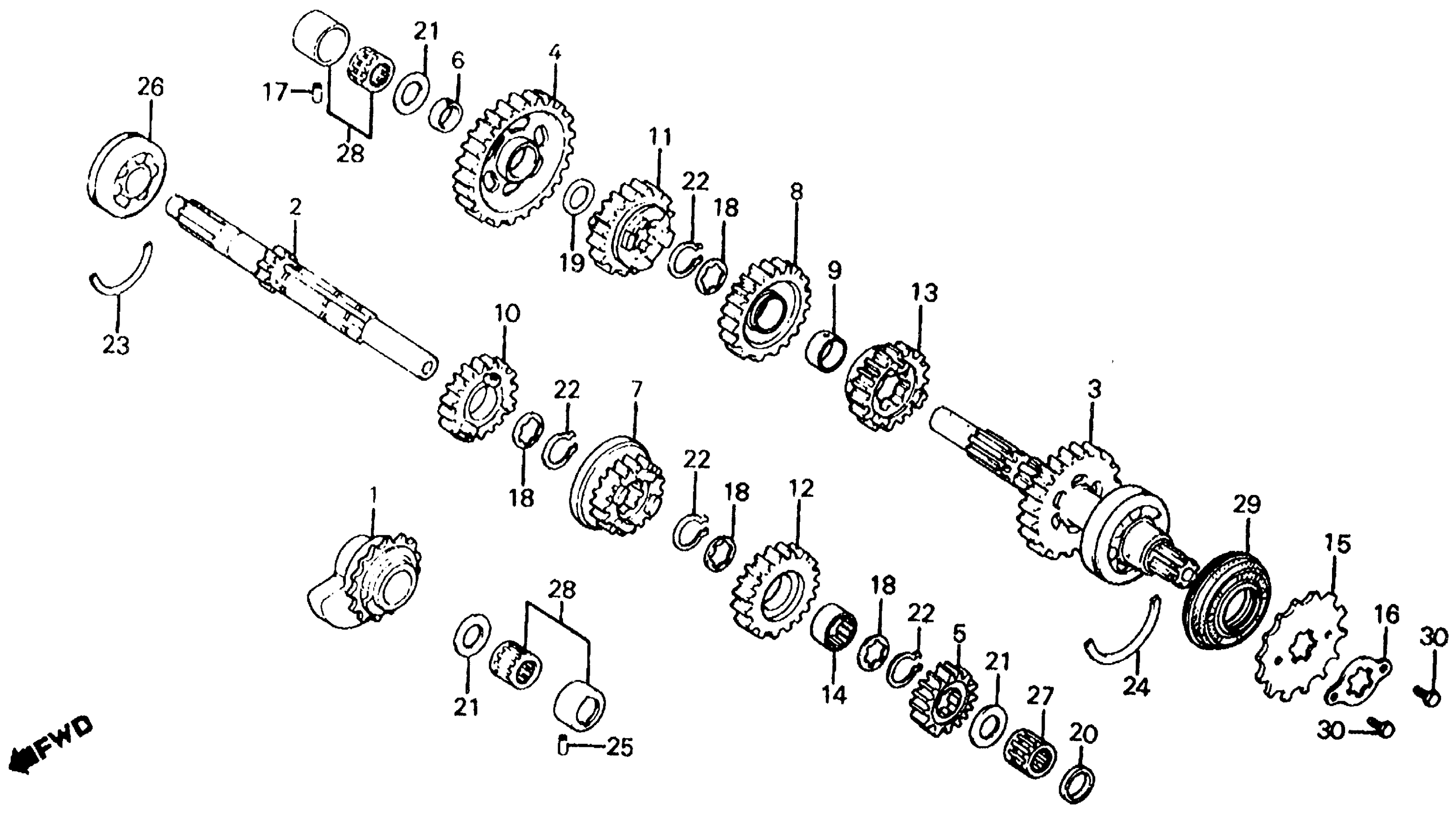

Honda FT500A (83) ASCOT, JPN, VIN# JH2PC070-DM000001 TO JH2PC070-DM002498 TRANSMISSION + REAR BALANCER Diagram

#

Description
Price

1

WEIGHT, RR. BALANCER (NOT AVAILABLE)

13420-MC8-000

Unavailable

2

MAINSHAFT, TRANSMISSION (NOT AVAILABLE)

23210-435-730

Unavailable

3

COUNTERSHAFT, TRANSMISSION (28T) (NOT AVAILABLE)

23220-MC8-000

Unavailable

4

GEAR, COUNTERSHAFT LOW (32T) (NOT AVAILABLE)

23411-429-000

Unavailable

5

GEAR, MAINSHAFT SECOND (17T) (NOT AVAILABLE)

23421-MC8-000

Unavailable

6

BUSH (20MM) (NOT AVAILABLE)

23422-428-000

Unavailable

7

GEAR, MAINSHAFT THIRD (20T) (NOT AVAILABLE)

23441-MC8-000

Unavailable

8

GEAR, COUNTERSHAFT THIRD (25T) (NOT AVAILABLE)

23451-MC8-000

Unavailable

9

BUSH (25MM) (NOT AVAILABLE)

23452-MC8-000

Unavailable

10

GEAR, MAINSHAFT FOURTH (23T) (NOT AVAILABLE)

23461-MC8-000

Unavailable

11

GEAR, COUNTERSHAFT FOURTH (23T) (NOT AVAILABLE)

23471-MC8-000

Unavailable

12

GEAR, MAINSHAFT FIFTH (25T) (NOT AVAILABLE)

23481-MC8-000

$94.75

13

GEAR, COUNTERSHAFT FIFTH (21T) (NOT AVAILABLE)

23491-MC8-000

Unavailable

14

BUSH, SPLINE (NOT AVAILABLE)

23492-MC8-000

Unavailable

15

SPROCKET, DRIVE (15T) (NOT AVAILABLE)

23801-MC8-000

Unavailable

16

PLATE, DRIVE SPROCKET FIXING

23811-292-000

$2.51

17

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

18

WASHER, THRUST (25MM)

90451-413-000

$3.26

19

WASHER, THRUST (20MM)

90454-428-000

$2.53

20

SPACER (20MM) (NOT AVAILABLE)

90454-429-000

Unavailable

21

WASHER, THRUST (20MM)

90458-292-000

$3.54

22

CIRCLIP (25MM)

90601-107-000

$3.74

23

SET-RING (56MM) (NOT AVAILABLE)

90601-393-000

Unavailable

24

SET-RING (62MM) (NOT AVAILABLE)

90602-428-000

Unavailable

25

PIN, BEARING SETTING (NOT AVAILABLE)

90705-428-010

Unavailable

26

BEARING, RADIAL BALL (63/22) (NOT AVAILABLE) This part replaces 91007-393-003.

91007-438-003

Unavailable

27

BEARING, NEEDLE (20X26X20)

91011-P48-008

Unavailable

27

BEARING, NEEDLE (20X26X20) This part replaces 91011-428-008.

91011-P48-008

Unavailable

27

BEARING, NEEDLE (20X26X20) This part replaces 91011-473-000.

91011-P48-008

Unavailable

28

BEARING, NEEDLE (20X34X16.8) (NTN) This part replaces 91022-426-008.

91023-MKP-D01

$34.39

28

BEARING, NEEDLE (20X34X16.8) (NTN) This part replaces 91023-MM4-003.

91023-MKP-D01

$34.39

29

OIL SEAL (34X62X14)

91206-KB7-005

$27.44

29

OIL SEAL (34X62X14) This part replaces 91206-428-005.

91206-KB7-005

$27.44

30

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

30

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

30

BOLT, HEX. (6X12)

92101-06012-0A

$1.49
