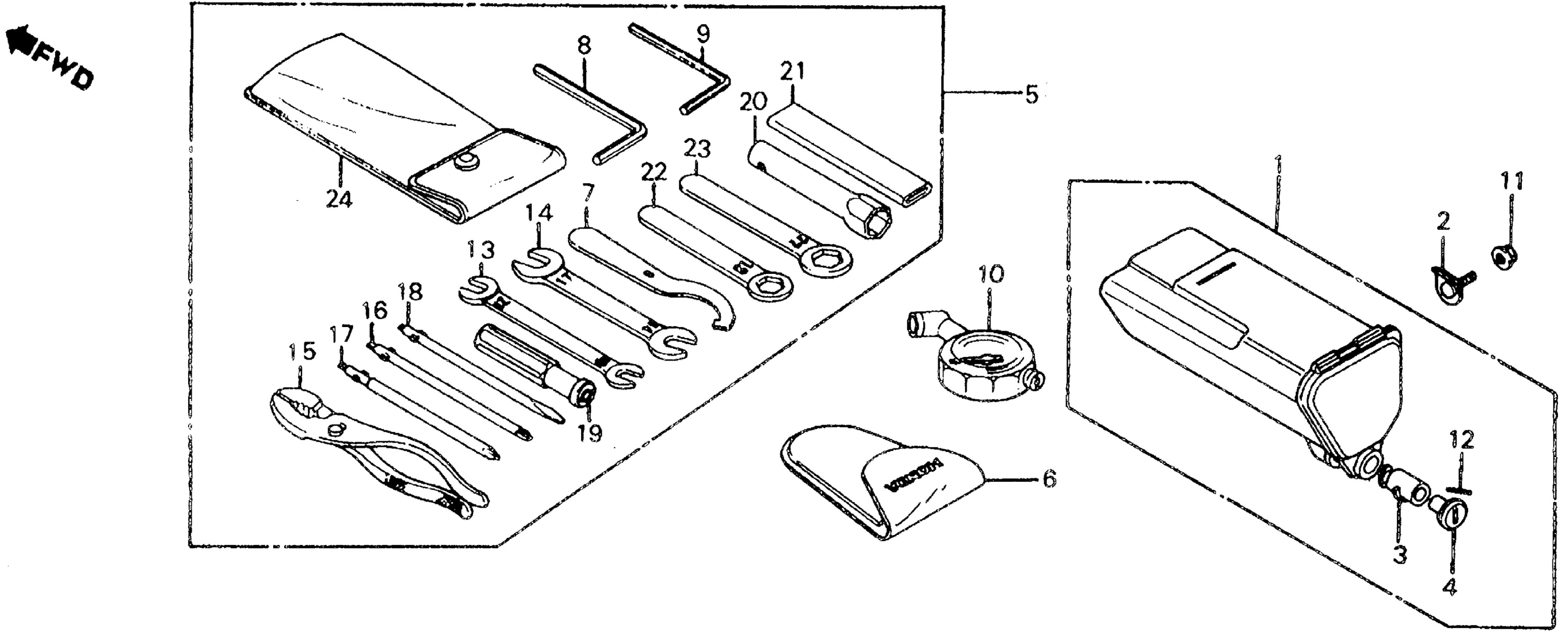

Honda FT500A (83) ASCOT, JPN, VIN# JH2PC070-DM000001 TO JH2PC070-DM002498 TOOLS Diagram

#

Description
Price

1

BOX ASSY., TOOL

83500-MC8-000

Unavailable

2

BOLT, TOOL BOX SETTING (NOT AVAILABLE)

83502-MC8-000

Unavailable

3

BODY, KEY

83507-422-000

$3.53

4

STOPPER, KEY BODY

83508-KBG-000

$2.90

4

STOPPER, KEY BODY This part replaces 83508-438-000.

83508-KBG-000

$2.90

5

TOOL SET This part replaces 89010-MC8-000.

89010-MC8-010

Unavailable

6

BAG, AIR PRESSURE GAUGE | (Optional).

89102-469-003

$6.57

7

SPANNER, PIN

89215-404-670

$7.60

8

WRENCH, HEX. (6MM)

89221-371-000

$4.28

9

WRENCH, HEX. (5MM)

89221-429-000

$3.90

10

GAUGE, AIR PRESSURE | (Optional). This part replaces 89301-MG9-951.

89301-MN5-003

$28.98

10

GAUGE, AIR PRESSURE | (Optional).

89301-MN5-003

$28.98

10

GAUGE, AIR PRESSURE | (Optional). This part replaces 89301-463-771.

89301-MN5-003

$28.98

11

NUT, FLANGE (6MM)

94050-06080

$1.49

12

PIN, SPRING (2X14)

94305-20141

$1.49

13

SPANNER (10X12)

99001-10120

$4.69

14

SPANNER (14X17)

99001-14170

$7.49

15

PLIERS (135) (KOWA)

89210-GBJ-J10

$13.57

15

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$13.57

16

DRIVER 1, PLUS SCREW (NO.2)

99003-10000

$3.27

17

DRIVER 2, PLUS SCREW (NO.3)

99003-20000

$3.27

18

DRIVER 3, MINUS SCREW (NO.2)

99003-30000

$3.27

19

GRIP, SCREW DRIVER

99003-50000

$3.27

20

WRENCH, BOX (P18)

99004-18001

$4.08

21

HANDLE, EYE WRENCH (12MM)

99006-12000

$2.87

22

WRENCH, EYE (19MM)

99006-19000

$4.16

23

WRENCH, EYE (22MM)

99006-22000

$4.16

24

BAG, TOOL (160MM)

99008-01600

$2.22
