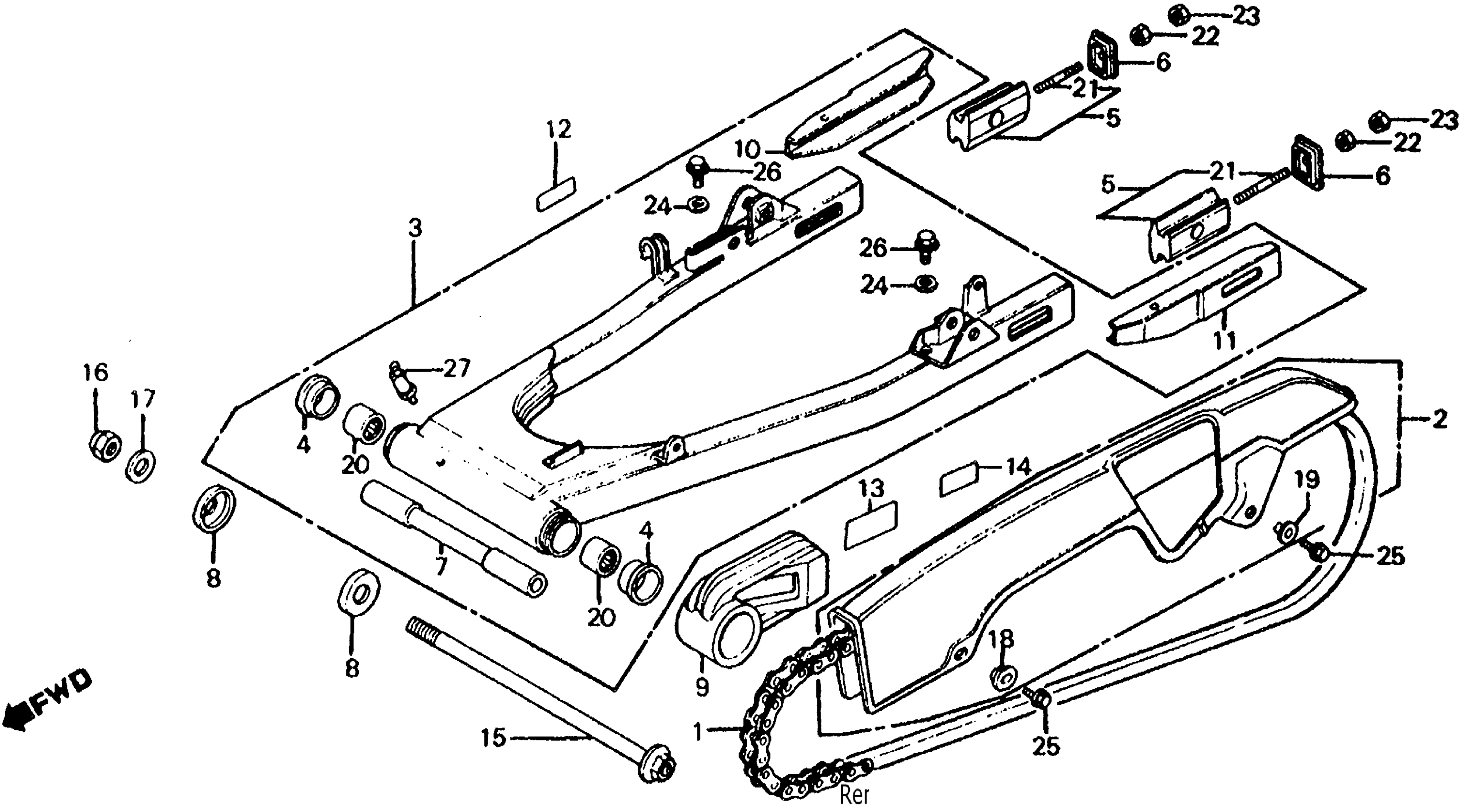

Honda FT500A (83) ASCOT, JPN, VIN# JH2PC070-DM000001 TO JH2PC070-DM002498 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CHAIN SET, DRIVE (NOT AVAILABLE) This part replaces 405A3-MC8-670.

405A3-MC8-671

Unavailable

1

CHAIN SET, DRIVE (NOT AVAILABLE)

405A3-MC8-671

Unavailable

1

CHAIN SET, DRIVE (NOT AVAILABLE) This part replaces 405A3-MC8-770.

405A3-MC8-671

Unavailable

1

CHAIN SET, DRIVE (NOT AVAILABLE) This part replaces 405B3-MC8-671.

405A3-MC8-671

Unavailable

2

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-MC8-000

Unavailable

3

SWINGARM ASSY., RR. (NOT AVAILABLE)

52100-MC8-670

Unavailable

4

BUSH, PIVOT THRUST

52109-430-300

$16.01

5

COLLAR, CHAIN TENSIONER (NOT AVAILABLE)

52120-MC8-000

Unavailable

6

PLATE, CHAIN TENSIONER (NOT AVAILABLE)

52121-MC8-000

Unavailable

7

COLLAR, SWINGARM CENTER (NOT AVAILABLE)

52141-MC8-000

Unavailable

8

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK) This part replaces 52144-286-000.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK) This part replaces 52144-356-003.

52144-356-005

$17.31

8

CAP, SWINGARM DUST SEAL (NOK)

52144-356-005

$17.31

9

SLIDER, DRIVE CHAIN (NOT AVAILABLE)

52155-MC8-000

Unavailable

10

REINFORCEMENT, R. SWINGARM (NOT AVAILABLE)

52161-MC8-670

Unavailable

11

REINFORCEMENT, L. SWINGARM (NOT AVAILABLE)

52165-MC8-670

Unavailable

12

MARK, MUFFLER CAUTION

87504-028-670

$2.92

13

LABEL, TIRE CAUTION (NOT AVAILABLE)

87505-MC8-670

Unavailable

14

LABEL, DRIVE CHAIN CAUTION (NOT AVAILABLE)

87507-425-611

Unavailable

15

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-MC8-000

Unavailable

16

NUT, AXLE (14MM) This part replaces 90305-197-003.

90305-197-013

$6.14

16

NUT, U (14MM)

90305-197-013

$6.14

17

WASHER, SWINGARM PIVOT

90501-447-000

Unavailable

18

WASHER (6X9)

90513-323-000

$1.84

19

WASHER, NUMBER BRACKET MOUNTING

90563-045-000

$3.12

20

BEARING, NEEDLE (20X26X20) (NTN)

91070-GC4-601

$24.72

20

BEARING, NEEDLE (20X26X20) (TOYO) This part replaces 91071-430-003.

91070-GC4-601

$24.72

21

BOLT, STUD (8X80) (NOT AVAILABLE)

92745-08080-0B

Unavailable

22

NUT, HEX. (8MM)

94001-08000-0S

$1.49

23

NUT, HEX. (8MM)

94002-08000-0S

$1.49

24

WASHER, SPRING (8MM) (NOT AVAILABLE)

94111-08700

Unavailable

25

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

25

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

26

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

26

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

27

NIPPLE, GREASE (B.T6S)

96201-80000

$2.56
