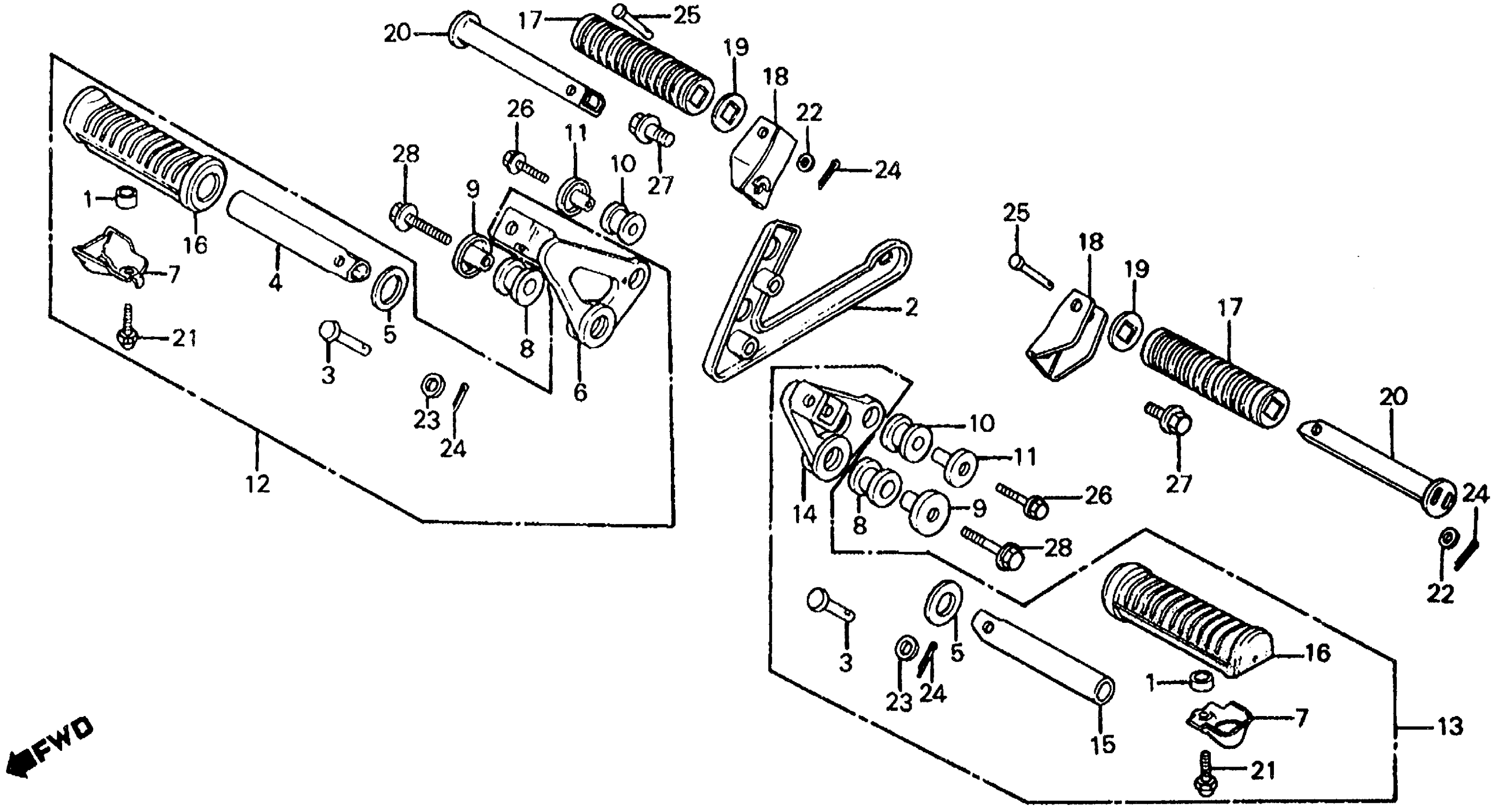

Honda FT500A (83) ASCOT, JPN, VIN# JH2PC070-DM000001 TO JH2PC070-DM002498 STEP Diagram

#

Description
Price

1

COLLAR, METER SETTING

37243-323-000

Unavailable

2

STIFFENER, PILLION STEP BRACKET (NOT AVAILABLE)

50600-MC8-670

Unavailable

3

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

3

PIN, STEP BAR JOINT

50603-033-010

$3.30

4

BAR, R. STEP (NOT AVAILABLE)

50612-473-000

Unavailable

5

WASHER, MAIN STEP

50614-413-000

Unavailable

6

ARM, R. STEP (NOT AVAILABLE)

50615-MC8-000

Unavailable

6

ARM, R. STEP (NOT AVAILABLE) This part replaces 50615-MC8-670.

50615-MC8-000

Unavailable

7

STOPPER, STEP RUBBER

50619-425-010

Unavailable

8

RUBBER A, STEP MOUNTING (NOT AVAILABLE)

50621-473-000

Unavailable

9

COLLAR A, STEP (NOT AVAILABLE)

50622-MC8-000

Unavailable

10

RUBBER B, STEP MOUNTING

50623-473-000

$2.31

11

COLLAR B, STEP (NOT AVAILABLE)

50624-MC8-000

Unavailable

12

STEP ASSY., R. (NOT AVAILABLE)

50630-MC8-000

Unavailable

13

STEP ASSY., L. (NOT AVAILABLE)

50640-MC8-000

Unavailable

14

ARM, L. STEP (NOT AVAILABLE)

50641-MC8-000

Unavailable

15

BAR, L. STEP (NOT AVAILABLE)

50643-473-000

Unavailable

16

RUBBER, FOOTPEG

50661-425-670

$13.34

17

RUBBER, PILLION FOOTPEG This part replaces 50710-377-000.

50716-371-660

$14.21

17

RUBBER, PILLION FOOTPEG

50716-371-660

$14.21

18

BRACKET, R. PILLION STEP

50711-425-610

Unavailable

19

WASHER, PILLION STEP

50712-413-000

$3.47

20

BAR, PILLION STEP (COO) This part replaces 50715-413-000.

50715-413-305

$17.81

20

BAR, PILLION STEP (COO)

50715-413-305

$17.81

21

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

21

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

22

WASHER, PLAIN (6MM)

94101-06800

$1.49

23

WASHER, PLAIN (8MM)

94101-08000

$1.49

24

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

24

PIN, COTTER (1.6X25)

94201-16250

$1.49

25

PIN A, PILLION STEP

95015-81000

$2.21

26

BOLT, FLANGE (8X28) This part replaces 95700-08028-07.

95701-08028-07

$1.49

26

BOLT, FLANGE (8X28)

95701-08028-07

$1.49

27

BOLT, FLANGE (10X25) This part replaces 95700-10025-00.

95701-10025-00

$2.19

27

BOLT, FLANGE (10X25)

95701-10025-00

$2.19

28

BOLT, FLANGE (10X40) This part replaces 95700-10040-07.

95701-10040-07

$1.90

28

BOLT, FLANGE (10X40)

95701-10040-07

$1.90
