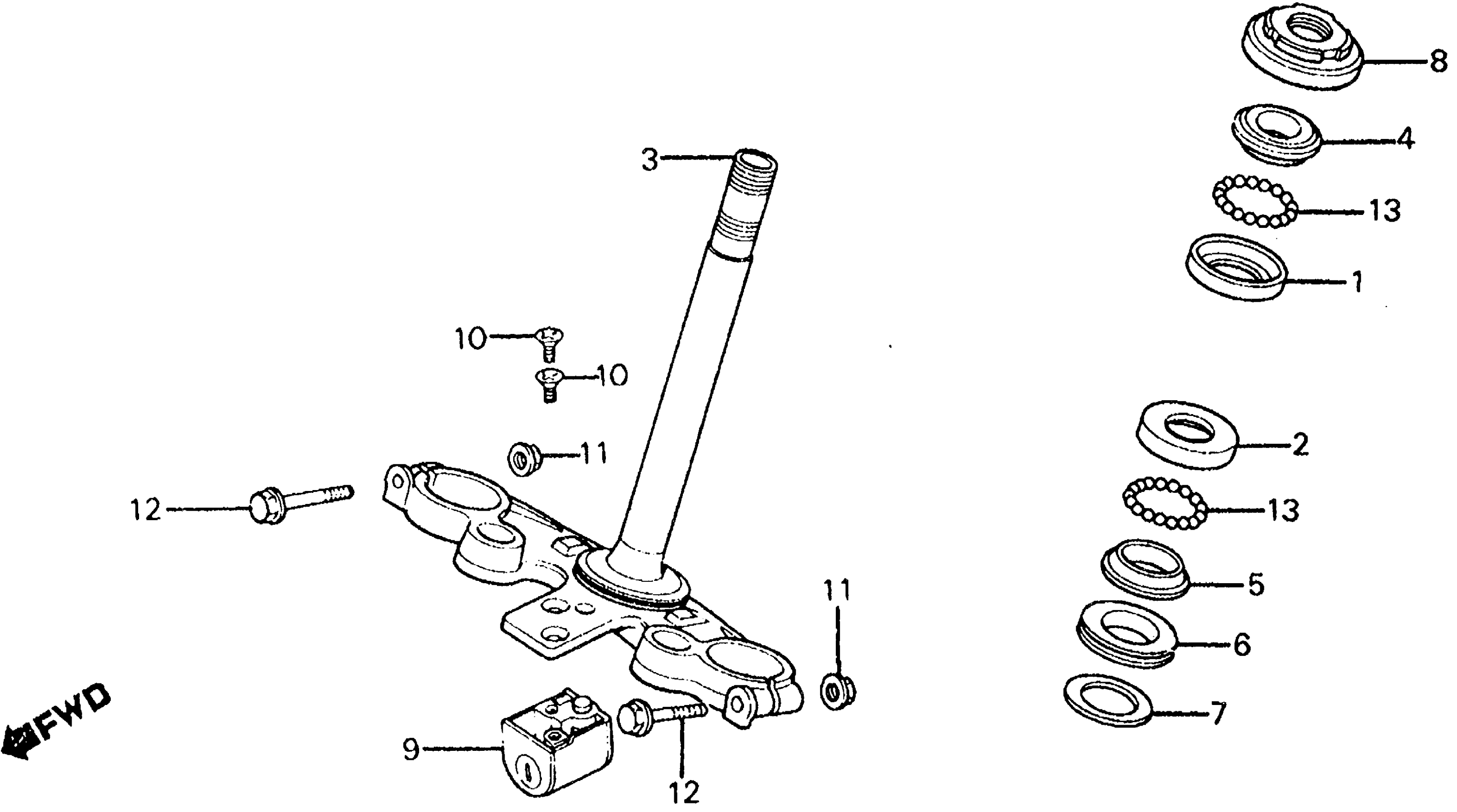

Honda FT500A (83) ASCOT, JPN, VIN# JH2PC070-DM000001 TO JH2PC070-DM002498 STEERING STEM Diagram

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$19.29

RACE, STEERING TOP BALL

50301-268-010

$19.29

RACE, STEERING BALL (LOWER) This part replaces 50302-268-000.

50302-268-010

$18.94

RACE, STEERING BALL (LOWER)

50302-268-010

$18.94

STEM, STEERING (NOT AVAILABLE)

53200-MC8-650

Unavailable

RACE, STEERING TOP CONE This part replaces 53211-268-000.

53211-268-010

$23.45

RACE, STEERING TOP CONE

53211-268-010

$23.45

RACE, STEERING CONE (LOWER) This part replaces 53212-250-000.

53212-250-010

$18.81

RACE, STEERING CONE (LOWER)

53212-250-010

$18.81

DUST SEAL This part replaces 53214-250-000.

53214-K0T-J00

$2.81

WASHER, STEERING HEAD DUST SEAL

53215-250-000

$2.13

THREAD, STEERING HEAD (UPPER)

53220-286-000

Unavailable

LOCK, HANDLEBAR

53600-086-007

$43.61

LOCK, HANDLEBAR This part replaces 53600-471-000.

53600-086-007

$43.61

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.64

NUT, FLANGE (10MM)

94050-10000

$1.41

BOLT, FLANGE (10X55) (NOT AVAILABLE)

95830-10055-00

Unavailable

BALL, STEEL (#8) (1/4)

96211-08000

$1.13
