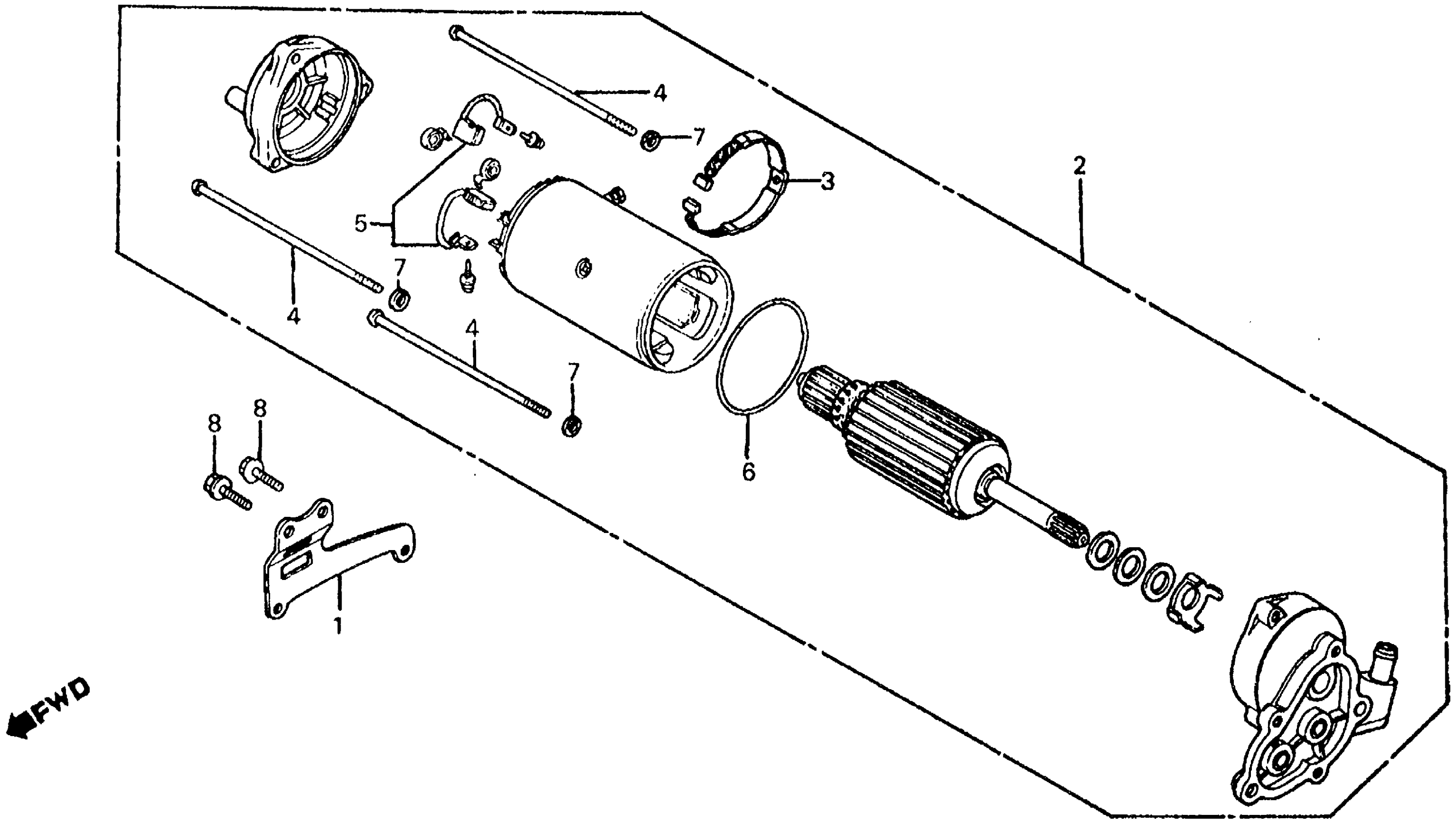

Honda FT500A (83) ASCOT, JPN, VIN# JH2PC070-DM000001 TO JH2PC070-DM002498 STARTER MOTOR Diagram

#

Description

Price

1

STAY, STARTER MOTOR (NOT AVAILABLE)

31190-MC8-000

Unavailable

2

STARTER MOTOR ASSY. This part replaces 31200-MC8-018.

31200-MC8-405

Unavailable

3

TERMINAL SET, BRUSH

31201-KM3-000

$15.85

3

TERMINAL SET, BRUSH

31201-MC8-008

$15.85

4

BOLT, SETTING (NOT AVAILABLE)

31205-371-005

Unavailable

5

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31206-MC8-008.

31206-MM5-008

Unavailable

5

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31206-MM5-008

Unavailable

6

RING, SEAL

31207-179-711

$4.04

7

WASHER, SPRING (5MM)

94111-05000

$1.04

8

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

Unavailable

8

BOLT, FLANGE (6X14)

96001-06014-00

Unavailable
