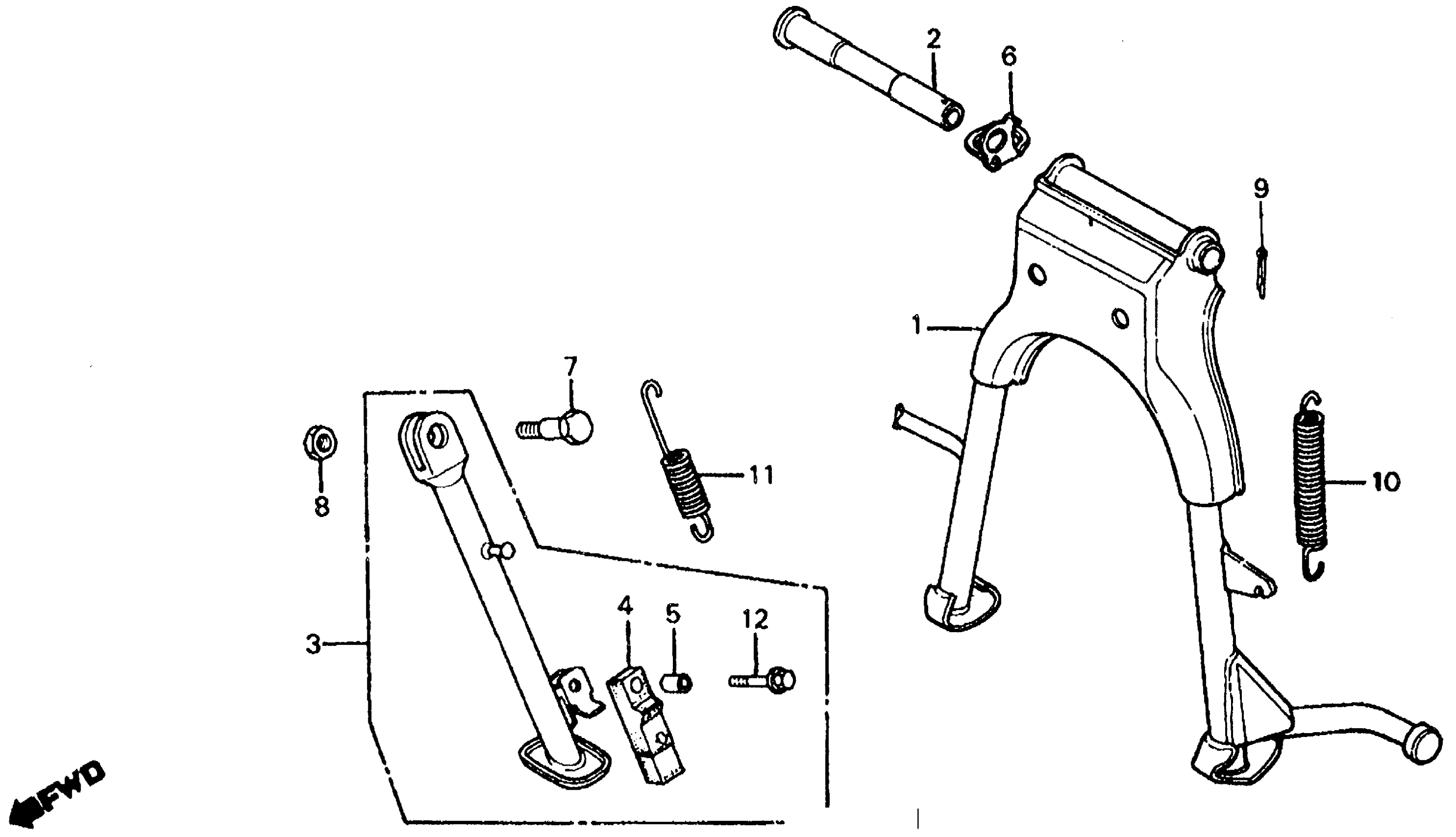

Honda FT500A (83) ASCOT, JPN, VIN# JH2PC070-DM000001 TO JH2PC070-DM002498 STAND Diagram

#

Description

Price

1

STAND, MAIN (NOT AVAILABLE)

50500-MC8-000

Unavailable

2

SHAFT, MAIN STAND PIVOT (NOT AVAILABLE)

50526-471-000

Unavailable

3

STAND ASSY., SIDE (NOT AVAILABLE)

50540-MC8-610

Unavailable

4

RUBBER, STAND

50548-356-700

$9.41

5

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.46

6

GUIDE, OVERFLOW TUBE (NOT AVAILABLE)

50730-471-000

Unavailable

7

SCREW, SIDE STAND PIVOT

90108-223-000

$4.77

8

NUT, HEX. (10MM)

94031-10000

$0.81

9

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$0.94

9

PIN, SPLIT (2.5X30)

94201-25300

$0.94

10

SPRING F, MAIN STAND

95014-71602

Unavailable

11

SPRING D, SIDE STAND

95014-72402

$2.80

12

BOLT, FLANGE (6X28)

95700-06028-00

$1.65

12

BOLT, FLANGE (6X28)

95701-06028-00

$1.65
