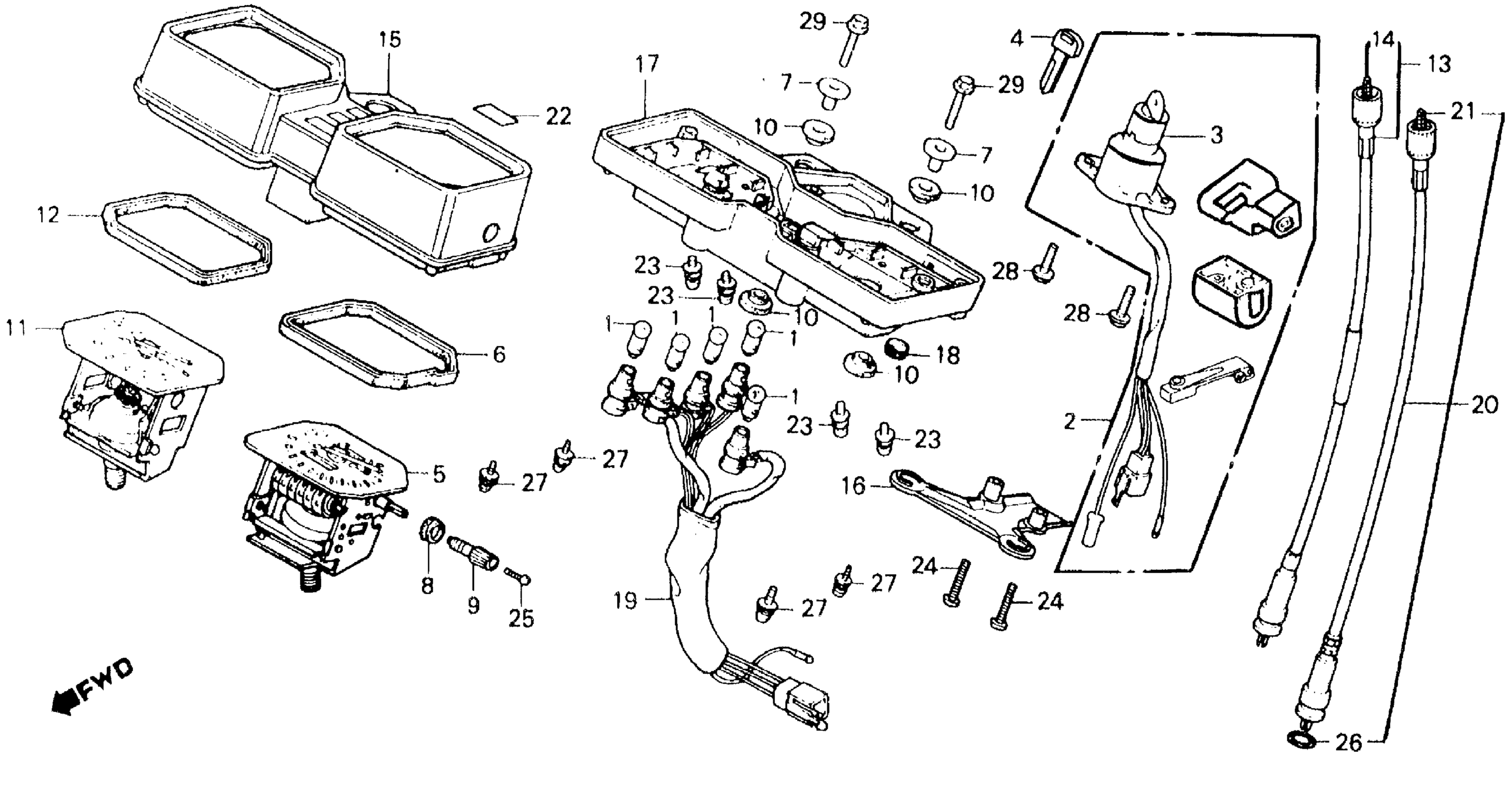

Honda FT500A (83) ASCOT, JPN, VIN# JH2PC070-DM000001 TO JH2PC070-DM002498 SPEEDOMETER + TACHOMETER + KEY SET Diagram

#

Description
Price

1

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS)

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

2

LOCK SET (NOT AVAILABLE)

35010-471-900

Unavailable

3

SWITCH ASSY., COMBINATION (NOT AVAILABLE)

35100-473-007

Unavailable

4

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MM8-811.

35121-MR1-770

$9.74

4

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-MR1-770

$9.74

4

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-402-811.

35121-MR1-770

$9.74

4

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MM8-811.

35122-MR1-770

$9.74

4

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-MR1-770

$9.74

4

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-402-811.

35122-MR1-770

$9.74

5

SPEEDOMETER ASSY. (NOT AVAILABLE)

37200-MC8-770

Unavailable

6

GASKET, SPEEDOMETER (NOT AVAILABLE)

37203-471-008

Unavailable

7

COLLAR, METER SETTING

37206-471-000

$6.97

8

GROMMET, TRIP

37207-471-008

Unavailable

9

KNOB, TRIP (NOT AVAILABLE)

37220-471-008

Unavailable

10

RUBBER, METER SETTING (NOT AVAILABLE)

37242-471-000

Unavailable

11

TACHOMETER ASSY. (RPM) (NOT AVAILABLE)

37250-MC8-671

Unavailable

12

GASKET, TACHOMETER (NOT AVAILABLE)

37253-471-008

Unavailable

13

CABLE ASSY., TACHOMETER

37260-MA1-730

Unavailable

13

CABLE ASSY., TACHOMETER This part replaces 37260-MC8-000.

37260-MA1-730

Unavailable

14

CABLE, TACHOMETER (INNER) (NOT AVAILABLE)

37261-MC8-000

Unavailable

15

CASE, METER (UPPER) (NOT AVAILABLE)

37610-MC8-008

Unavailable

16

COVER, WIRE (NOT AVAILABLE)

37616-MC8-008

Unavailable

17

CASE, METER (LOWER) (NOT AVAILABLE)

37617-MC8-008

Unavailable

18

GROMMET (NOT AVAILABLE)

37618-471-601

Unavailable

19

WIRE ASSY. (NOT AVAILABLE)

37619-MC8-000

Unavailable

20

CABLE ASSY., SPEEDOMETER This part replaces 44830-MC8-000.

44830-ME5-000

Unavailable

20

CABLE ASSY., SPEEDOMETER

44830-ME5-000

Unavailable

21

CABLE (INNER) (NOT AVAILABLE) This part replaces 44831-MC8-000.

44831-ME5-300

Unavailable

21

CABLE (INNER) (NOT AVAILABLE)

44831-ME5-300

Unavailable

22

LABEL, BREAK IN CAUTION (NOT AVAILABLE)

87523-102-720

Unavailable

23

SCREW-WASHER, SPECIAL (4X10)

90035-166-008

$2.67

24

SCREW-WASHER (4X25) (NOT AVAILABLE)

90102-MC8-000

Unavailable

25

SCREW, PAN (2X6) This part replaces 90102-434-671.

90600-KJ9-700

Unavailable

25

SCREW, PAN (2X6)

90600-KJ9-700

Unavailable

26

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

26

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

26

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

27

SCREW-WASHER (4X12)

93893-04012-07

$1.49

27

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

28

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

28

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

29

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

29

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
