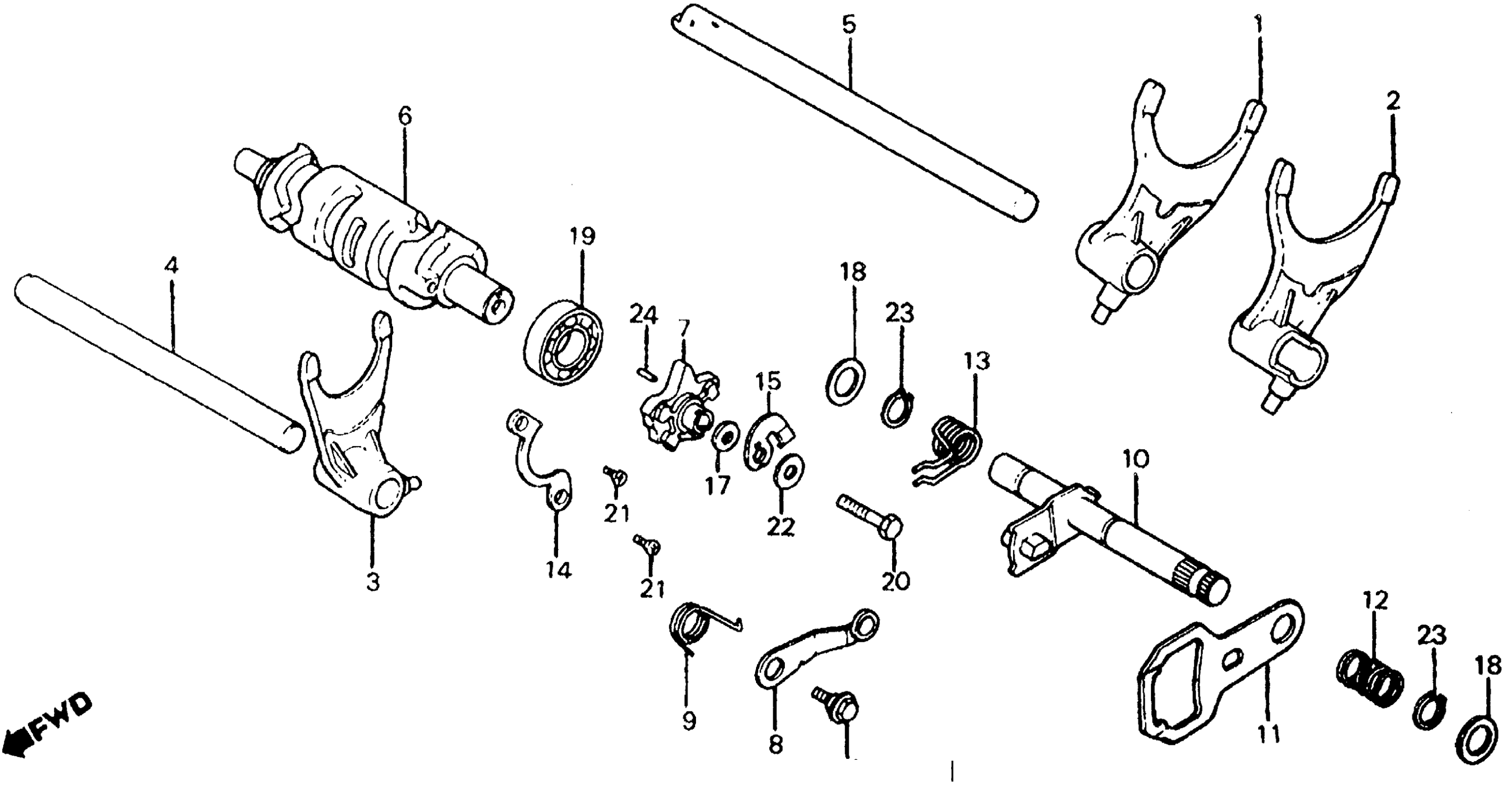

Honda FT500A (83) ASCOT, JPN, VIN# JH2PC070-DM000001 TO JH2PC070-DM002498 SHIFT DRUM + SHIFT FORK Diagram

#

Description
Price

1

FORK, R. GEARSHIFT (NOT AVAILABLE)

24211-429-010

Unavailable

2

FORK, L. GEARSHIFT

24212-429-000

Unavailable

3

FORK, CENTER GEARSHIFT (NOT AVAILABLE)

24213-429-000

Unavailable

4

SHAFT, GEARSHIFT FORK GUIDE

24241-399-000

$16.72

5

MAINSHAFT, GEARSHIFT FORK (NOT AVAILABLE)

24265-MC8-000

Unavailable

6

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-471-000

Unavailable

7

CAM, GEARSHIFT (NOT AVAILABLE)

24410-471-305

Unavailable

7

CAM, GEARSHIFT (NOT AVAILABLE) This part replaces 24411-428-771.

24410-471-305

Unavailable

7

CAM, GEARSHIFT (NOT AVAILABLE) This part replaces 24411-428-772.

24410-471-305

Unavailable

8

STOPPER, GEARSHIFT DRUM

24430-428-000

Unavailable

9

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE) This part replaces 24435-471-000.

24435-413-000

Unavailable

10

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-428-000

Unavailable

11

PLATE, GEARSHIFT (NOT AVAILABLE)

24621-428-000

Unavailable

12

SPRING, GEARSHIFT PLATE

24631-362-000

Unavailable

13

SPRING, GEARSHIFT RETURN (NOT AVAILABLE)

24651-428-000

Unavailable

14

PLATE, BEARING SETTING (NOT AVAILABLE)

24710-362-000

Unavailable

15

ROTOR, NEUTRAL SWITCH (NOT AVAILABLE)

35753-428-010

Unavailable

16

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

16

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

17

WASHER, ROTOR SETTING (NOT AVAILABLE)

90405-428-000

Unavailable

18

WASHER, CHAIN GUIDE ROLLER THRUST (NOT AVAILABLE)

90452-500-000

Unavailable

19

BEARING, RADIAL BALL (16003) This part replaces 91008-KK6-000.

91011-KK6-013

$15.40

19

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$15.40

19

BEARING, RADIAL BALL (16003) This part replaces 91010-HC0-003.

91011-KK6-013

$15.40

19

BEARING, RADIAL BALL (16003)

91011-KK6-013

$15.40

20

BOLT, HEX. (6X28) (NOT AVAILABLE)

92200-06028

Unavailable

21

SCREW, FLAT (6X12) This part replaces 93600-06012.

93600-06012-0A

$1.49

21

SCREW, FLAT (6X12)

93600-06012-0A

$1.49

22

WASHER, PLAIN (6MM)

94101-06800

$1.49

23

CIRCLIP, OUTER (12MM)

94510-12000

$1.78

24

ROLLER (3X8.5)

96220-30085

$1.49
