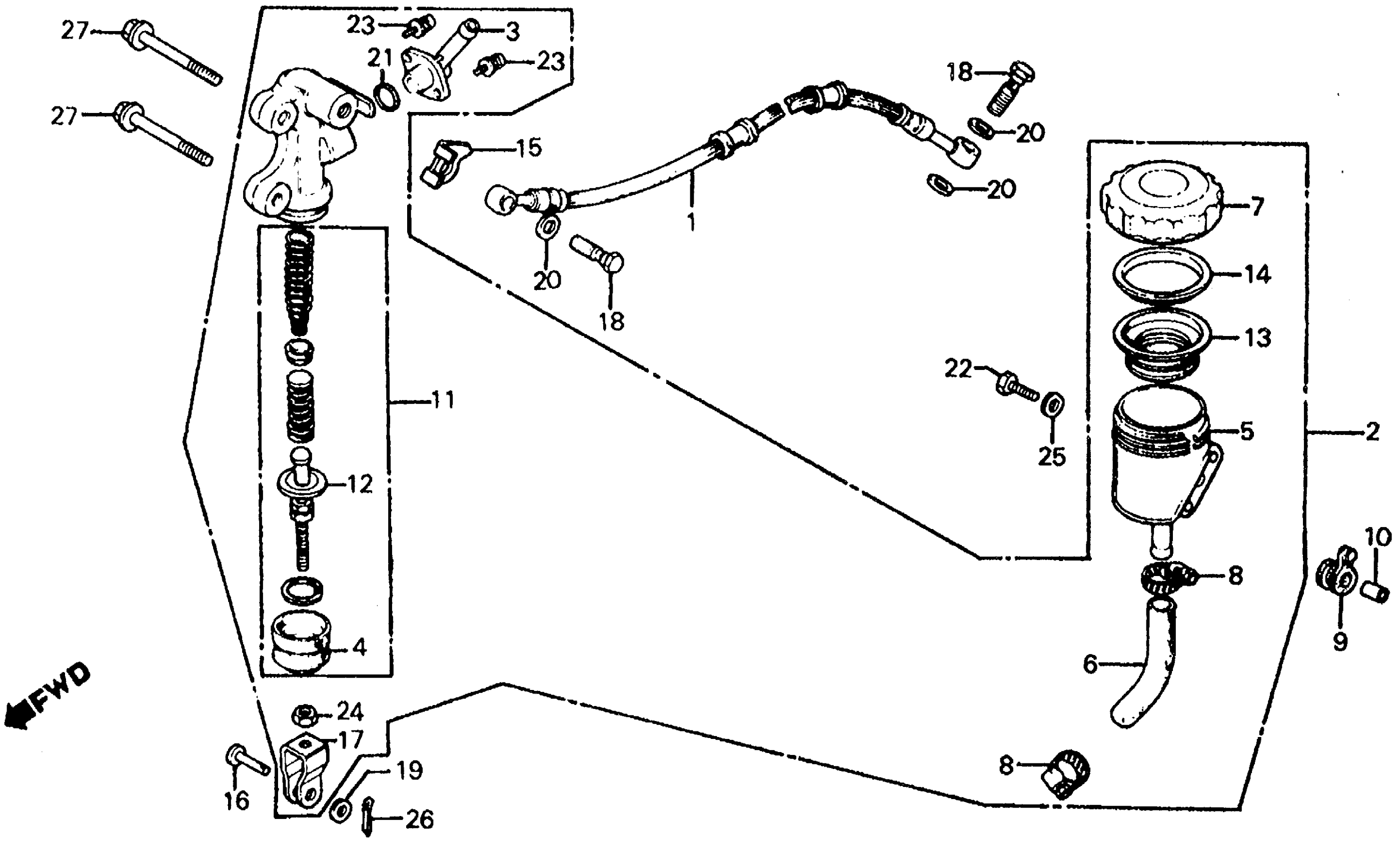

Honda FT500A (83) ASCOT, JPN, VIN# JH2PC070-DM000001 TO JH2PC070-DM002498 RR. BRAKE MASTER CYL. Diagram

#

Description
Price

1

HOSE, RR. BRAKE (NOT AVAILABLE) This part replaces 43310-MC8-671.

43310-MC8-672

Unavailable

1

HOSE, RR. BRAKE (NOT AVAILABLE)

43310-MC8-672

Unavailable

2

MASTER CYLINDER ASSY., RR. BRAKE (NOT AVAILABLE) This part replaces 43500-MC8-671.

43500-MC8-672

Unavailable

2

MASTER CYLINDER ASSY., RR. BRAKE (NOT AVAILABLE)

43500-MC8-672

Unavailable

3

CONNECTOR, MASTER CYLINDER

43503-422-006

Unavailable

4

BOOT, MASTER CYLINDER

43504-371-013

$9.54

5

CUP, MASTER CYLINDER OIL (NOT AVAILABLE)

43511-MC8-671

Unavailable

6

HOSE, RR. MASTER CYLINDER (NOT AVAILABLE) This part replaces 43512-MC8-670.

43512-MC8-671

Unavailable

6

HOSE, RR. MASTER CYLINDER (NOT AVAILABLE)

43512-MC8-671

Unavailable

7

CAP, OIL CUP

43513-MJ6-006

Unavailable

7

CAP, OIL CUP This part replaces 43513-461-771.

43513-MJ6-006

Unavailable

8

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$12.27

9

RUBBER, MASTER CYLINDER CUP BUSH (NOT AVAILABLE)

43515-MC8-000

Unavailable

10

COLLAR, RR. MASTER CYLINDER CUP (NOT AVAILABLE)

43516-MC8-000

Unavailable

11

MASTER CYLINDER SET (NOT AVAILABLE)

43520-MC8-305

Unavailable

12

ROD, MASTER CYLINDER PUSH (NOT AVAILABLE)

43530-MC8-671

Unavailable

13

DIAPHRAGM

45520-300-000

$9.05

14

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

14

PLATE, DIAPHRAGM This part replaces 45521-300-010.

45521-MJ6-006

$4.06

15

WASHER, RR. OIL BOLT (NOT AVAILABLE)

45535-MC8-000

Unavailable

16

PIN, BRAKE ROD

46503-371-000

Unavailable

17

JOINT, BRAKE ROD (NOT AVAILABLE)

46504-445-771

Unavailable

18

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

18

BOLT, OIL

90145-300-010

$9.68

18

BOLT, OIL This part replaces 90145-961-000.

90145-300-010

$9.68

19

WASHER (7X12)

90501-310-000

$1.74

20

WASHER, OIL BOLT

90545-300-000

$3.99

21

O-RING (14.8X2.4)

91212-422-006

$2.56

22

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

22

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

23

SCREW-WASHER (4X12)

93893-04012-08

$1.49

23

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

24

NUT, HEX. (8MM)

94002-08000-0S

$1.49

25

WASHER, PLAIN (6MM)

94103-06000

$1.49

26

PIN, SPLIT (1.6X12)

94201-16120

$1.49

27

BOLT, FLANGE (8X45) This part replaces 95700-08045-07.

95701-08045-07

$2.17

27

BOLT, FLANGE (8X45)

95701-08045-07

$2.17
