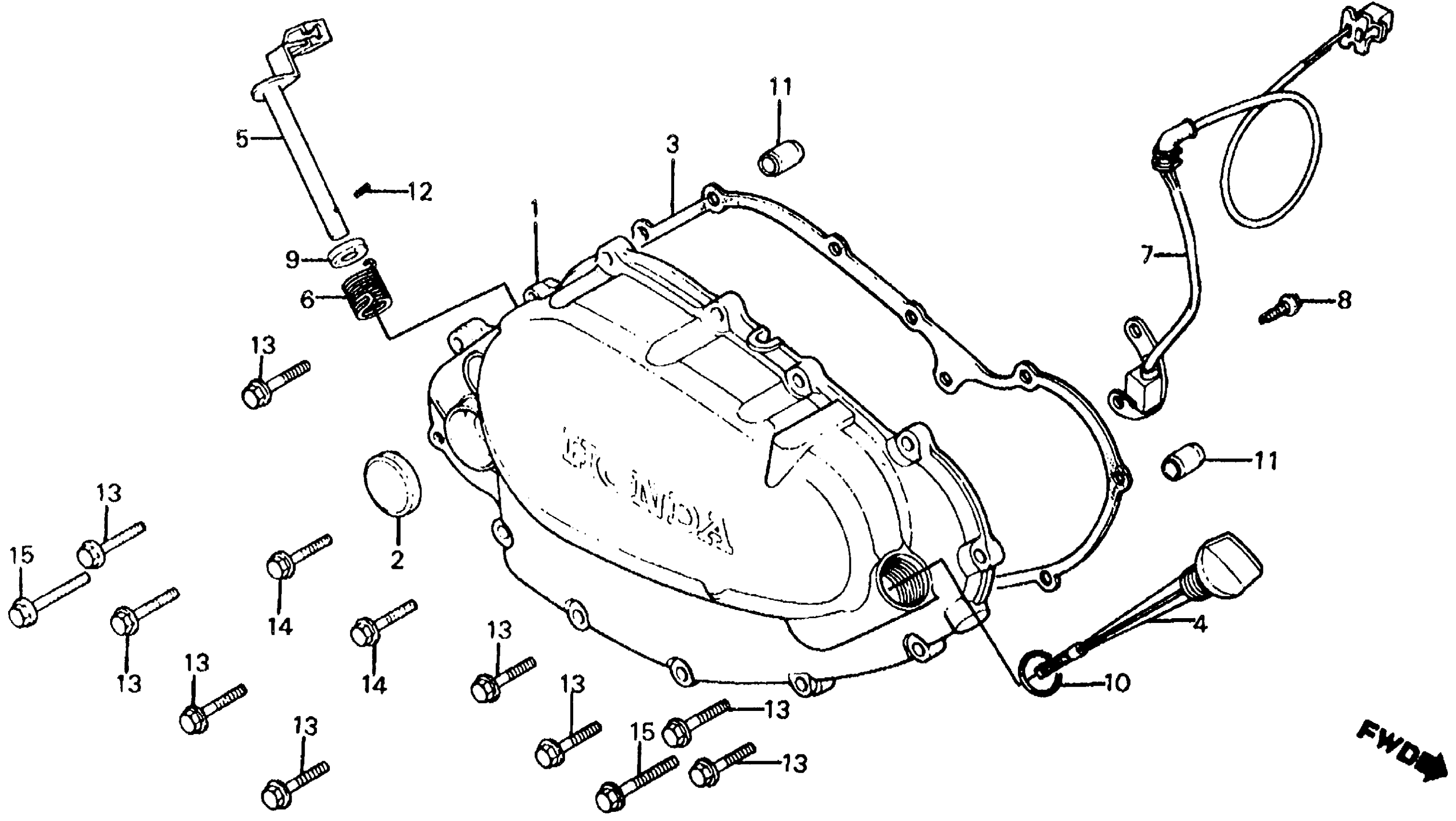

Honda FT500A (83) ASCOT, JPN, VIN# JH2PC070-DM000001 TO JH2PC070-DM002498 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-MC8-000

Unavailable

SEAL, KICK SHAFT (NOT AVAILABLE)

11331-473-000

Unavailable

GASKET, R. This part replaces 11394-MC8-000.

11394-MC8-306

Unavailable

DIPSTICK, OIL

15650-MC8-000

Unavailable

LEVER, CLUTCH

22810-429-000

Unavailable

SPRING, CLUTCH LEVER

22815-428-000

$3.28

GENERATOR ASSY., PULSE (TOYO) (NOT AVAILABLE)

30300-KB7-154

Unavailable

GENERATOR ASSY., PULSE (TOYO) (NOT AVAILABLE) This part replaces 30300-MC8-154.

30300-KB7-154

Unavailable

SCREW, TAPPING (6X16) (NOT AVAILABLE)

90190-663-671

Unavailable

OIL SEAL (12X22X5)

91201-965-000

$4.06

OIL SEAL (12X22X5) This part replaces 91203-MC8-003.

91201-965-000

$4.06

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

O-RING (18X3)

91307-035-000

$2.92

PIN, DOWEL (10X16)

94301-10160

$2.28

PIN, SPRING (3X10)

94305-30102

$1.74

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
