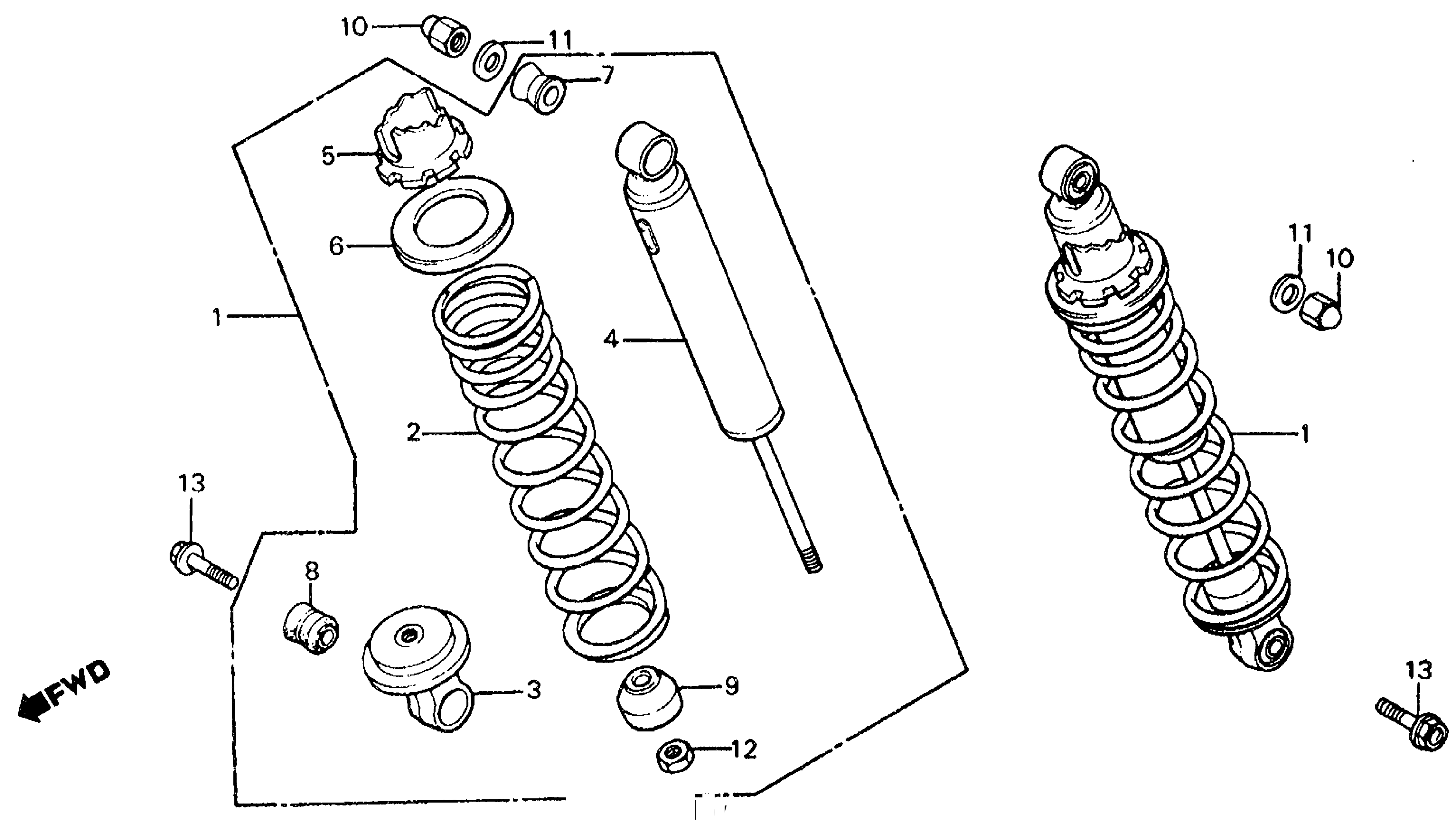

Honda FT500A (83) ASCOT, JPN, VIN# JH2PC070-DM000001 TO JH2PC070-DM002498 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)

52400-MC8-003

Unavailable

2

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-MC8-003

Unavailable

3

JOINT (UPPER) (NOT AVAILABLE)

52403-MC8-003

Unavailable

4

DAMPER, RR. (NOT AVAILABLE)

52410-MC8-003

Unavailable

5

ADJUSTER, SPRING (NOT AVAILABLE)

52422-410-003

Unavailable

6

SEAT, SPRING (NOT AVAILABLE)

52458-MC8-003

Unavailable

7

RUBBER, JOINT

52484-292-000

$5.61

8

BUSH, SHOCK ABSORBER

52489-473-003

$7.08

9

RUBBER, STOPPER

52517-404-003

$5.12

10

NUT, FLANGE (10MM)

90309-315-000

Unavailable

11

WASHER (10.3MM)

90521-292-000

$3.26

12

NUT, HEX. (10MM)

94002-10000-0S

$4.20

13

BOLT, FLANGE (10X35) This part replaces 95700-10035-00.

95701-10035-00

$1.40

13

BOLT, FLANGE (10X35)

95701-10035-00

$1.40
