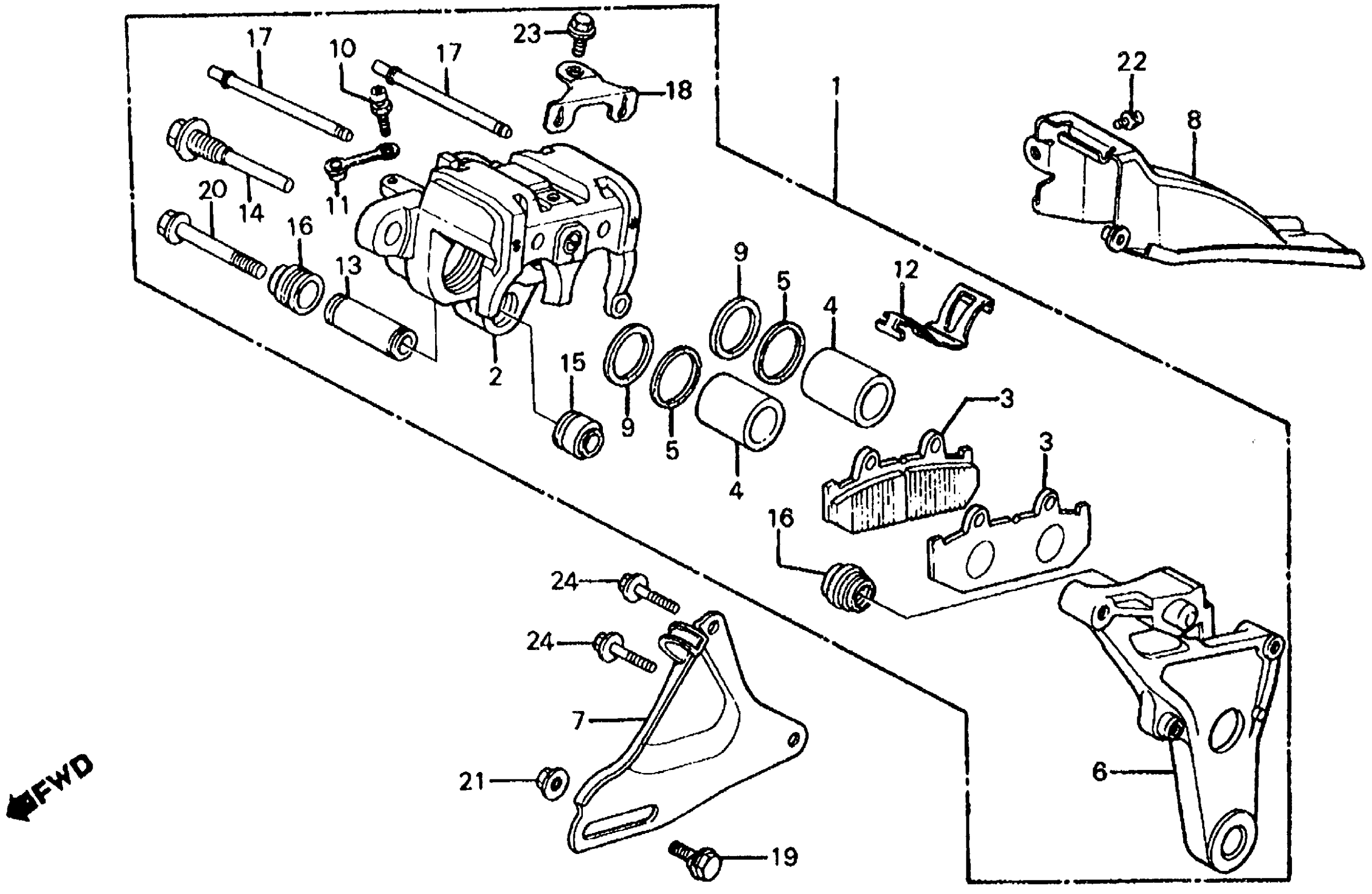

Honda FT500A (83) ASCOT, JPN, VIN# JH2PC070-DM000001 TO JH2PC070-DM002498 REAR BRAKE CALIPER Diagram

#

Description
Price

NI

PAD SET This part replaces 431A0-MC7-024.

06435-MC7-405

Unavailable

1

CALIPER ASSY., RR. (JB) (NOT AVAILABLE)

43100-MC8-671

Unavailable

2

CALIPER, RR. (NOT AVAILABLE)

43101-MA3-006

Unavailable

3

PAD SET This part replaces 431A0-MC7-024.

06435-MC7-405

Unavailable

3

PAD SET This part replaces 43105-MC7-014.

06435-MC7-405

Unavailable

3

PAD SET This part replaces 43105-MJ6-004.

06435-MC7-405

Unavailable

3

PAD SET This part replaces 43105-MJ6-014.

06435-MC7-405

Unavailable

4

PISTON

43107-MA3-006

$32.99

5

DUST SEAL

43109-MA3-006

$5.73

6

BRACKET A, RR. CALIPER (NOT AVAILABLE)

43110-MC8-670

Unavailable

7

BRACKET B, RR. CALIPER (NOT AVAILABLE)

43111-MC8-670

Unavailable

8

COVER, RR. DISK (NOT AVAILABLE)

43140-MA3-000

Unavailable

9

SEAL, PISTON

43209-MA3-006

$7.04

10

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

11

CAP, BLEEDER

43353-461-771

$5.05

12

SPRING, PAD

45108-MA3-006

$6.28

13

SLEEVE

45111-MA3-006

$13.38

14

BOLT, PIN

45131-MA3-006

$17.59

15

BOOT B

45133-MA3-006

$5.46

16

BOOT, PIN

45133-166-016

$3.85

17

PIN, HANGER

45215-MA3-006

$12.77

18

PLATE

45217-MA3-006

$4.45

19

BOLT, RR. BRAKE STOPPER (NOT AVAILABLE)

90120-MC8-000

Unavailable

20

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

20

BOLT, FLANGE (8X49)

90180-MN8-006

$6.07

21

NUT, AXLE (10MM)

90304-GA6-003

$2.89

22

SCREW-WASHER (5X10)

93892-05010-07

$1.49

23

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

23

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

24

BOLT, FLANGE (8X20) This part replaces 95700-08020-07.

95701-08020-07

$1.87

24

BOLT, FLANGE (8X20)

95701-08020-07

$1.87
