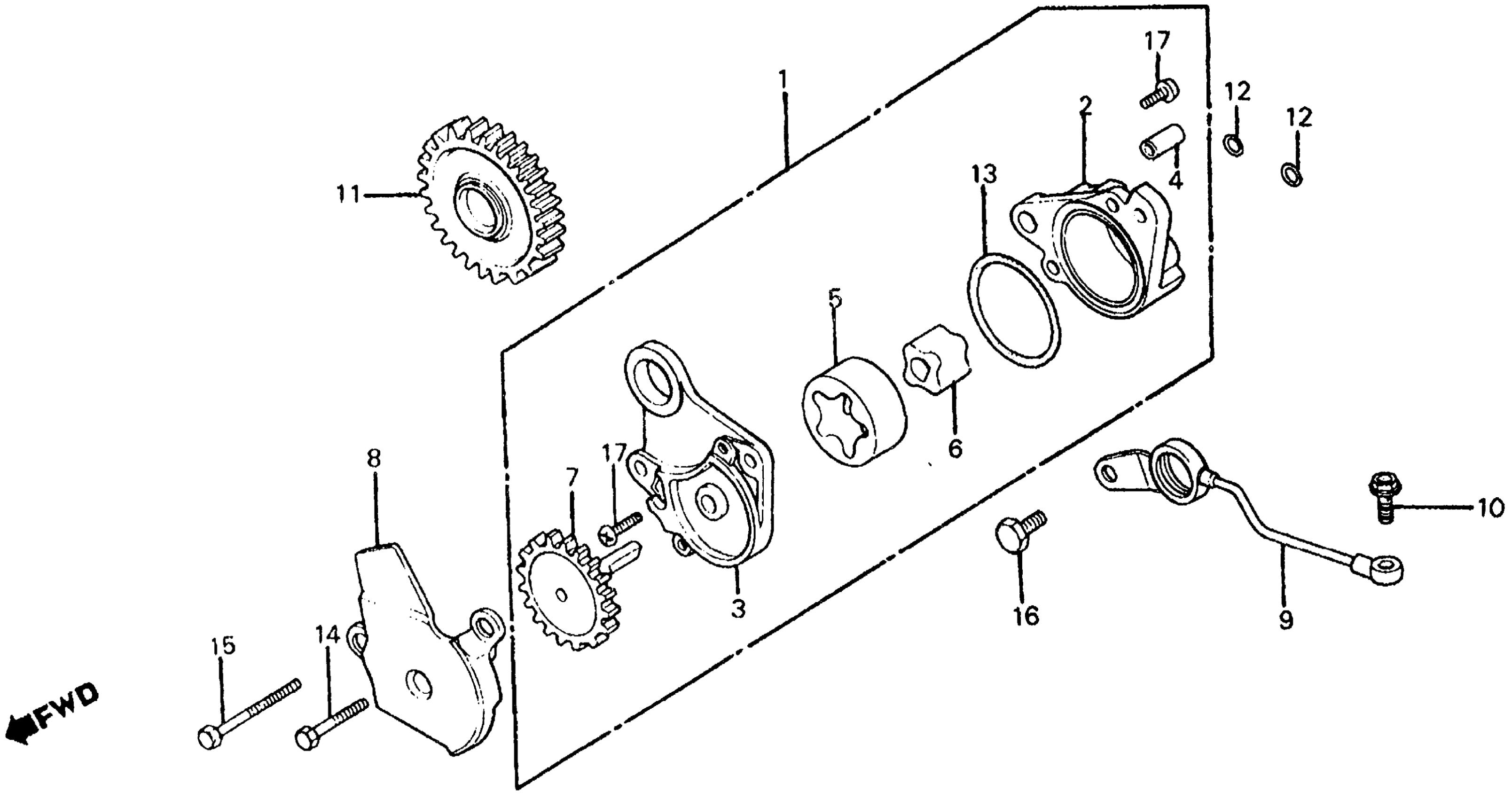

Honda FT500A (83) ASCOT, JPN, VIN# JH2PC070-DM000001 TO JH2PC070-DM002498 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL (NOT AVAILABLE)

15100-MC8-000

Unavailable

2

BODY, OIL PUMP (NOT AVAILABLE)

15111-MC8-000

Unavailable

3

COVER, OIL PUMP (NOT AVAILABLE)

15121-MC8-000

Unavailable

4

PIN, DOWEL (8X18) (NOT AVAILABLE)

15122-428-000

Unavailable

5

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE)

15122-429-000

Unavailable

6

ROTOR, OIL PUMP (INNER) (NOT AVAILABLE)

15123-429-000

Unavailable

7

GEAR, OIL PUMP DRIVE (17T) (NOT AVAILABLE)

15130-MC8-000

Unavailable

8

PLATE, OIL PUMP SETTING (NOT AVAILABLE)

15197-MC8-000

Unavailable

9

TUBE, OIL (NOT AVAILABLE)

15511-MC8-000

Unavailable

10

BOLT, FLANGE (7X20) (NOT AVAILABLE)

15533-MA6-000

Unavailable

11

GEAR, KICK STARTER IDLE (24T)

28221-429-010

Unavailable

12

O-RING (7X1.7)

91301-473-003

$2.72

12

O-RING (6.8X1.9) This part replaces 91302-HA0-004.

91306-PJ4-000

$3.01

12

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

13

O-RING (32.5X2.5)

91307-MC8-005

Unavailable

14

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

14

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

15

BOLT, HEX. (6X35) This part replaces 92000-06035.

92101-06035-0A

$1.77

15

BOLT, HEX. (6X35) This part replaces 92000-06035-0A.

92101-06035-0A

$1.77

15

BOLT, HEX. (6X35)

92101-06035-0A

$1.77

16

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

16

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

17

SCREW, PAN (5X14)

93500-05014-0A

$1.49
