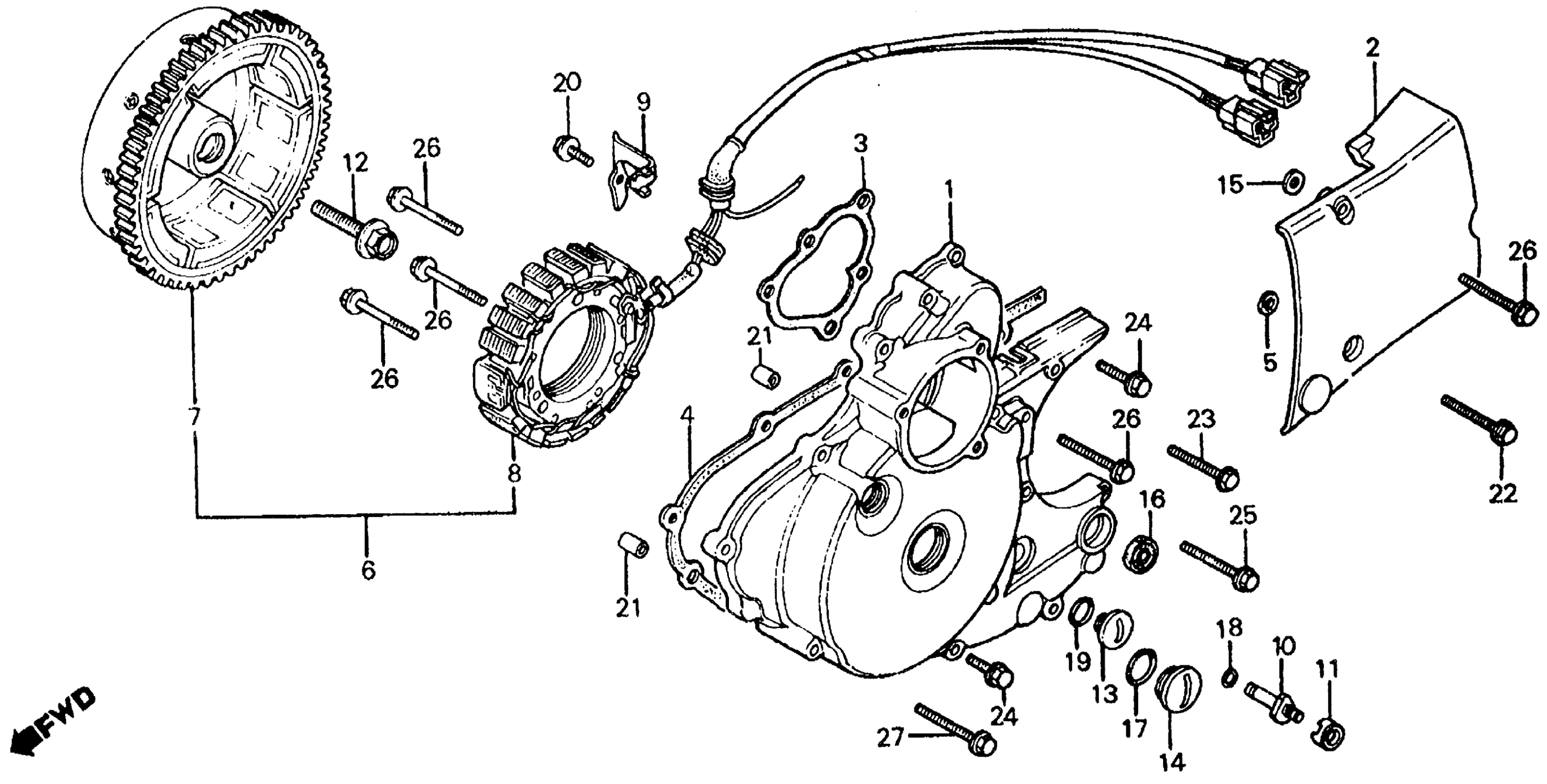

Honda FT500A (83) ASCOT, JPN, VIN# JH2PC070-DM000001 TO JH2PC070-DM002498 LEFT CRANKCASE COVER + ALTERNATOR Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-MC8-000

Unavailable

2

COVER, L. RR. (NOT AVAILABLE)

11351-MC8-300

Unavailable

3

GASKET, FR. BRACKET This part replaces 11367-MC8-000.

11367-MC8-306

Unavailable

4

GASKET, L. CRANKCASE COVER This part replaces 11395-MA0-000.

11395-MA0-306

Unavailable

4

GASKET, L. CRANKCASE COVER

11395-MA0-306

Unavailable

5

GASKET, L. RR. COVER This part replaces 11396-MC4-300.

11396-MC4-306

Unavailable

6

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-MC8-005

Unavailable

7

ROTOR (HITACHI) (NOT AVAILABLE)

31110-MC8-005

Unavailable

8

STATOR (HITACHI) (NOT AVAILABLE)

31120-473-005

Unavailable

9

CLAMP, CABLE (NOT AVAILABLE)

32111-473-000

$4.13

10

CONTACT ASSY., NEUTRAL SWITCH (NOT AVAILABLE)

35750-028-000

Unavailable

11

SPACER, NEUTRAL SWITCH (NOT AVAILABLE)

35752-329-310

Unavailable

12

BOLT, FLANGE (12X50)

90023-471-000

$13.00

13

CAP, ALTERNATOR

90084-471-000

Unavailable

14

CAP (30MM) This part replaces 90087-471-000.

90087-MR1-000

$19.89

15

WASHER, SEALING (6MM)

90441-706-000

$1.49

16

OIL SEAL (12X25X7) (NOT AVAILABLE)

91202-MC8-005

Unavailable

17

O-RING (27X2.0)

91301-028-000

$2.92

17

O-RING (27X2) (ARAI) This part replaces 91305-KF0-000.

91305-KF0-003

$2.92

17

O-RING (27X2) (ARAI)

91305-KF0-003

$2.92

18

O-RING (7X1.7)

91301-473-003

$2.72

18

O-RING (6.8X1.9) This part replaces 91302-HA0-004.

91306-PJ4-000

$3.01

18

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

19

O-RING (13.8X2.5)

91303-MG7-003

$3.12

19

O-RING (13.8X2.5)

91303-377-000

$3.42

19

O-RING (13.8X2.5) This part replaces 91303-426-000.

91303-MG7-003

$3.12

20

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

20

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

20

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

21

PIN, DOWEL (10X16)

94301-10160

$2.28

22

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

22

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

23

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

23

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

24

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

24

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

25

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

25

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

26

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

26

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

27

BOLT, FLANGE (6X45) This part replaces 96000-06045-00.

96001-06045-00

$1.95

27

BOLT, FLANGE (6X45)

96001-06045-00

$1.95
