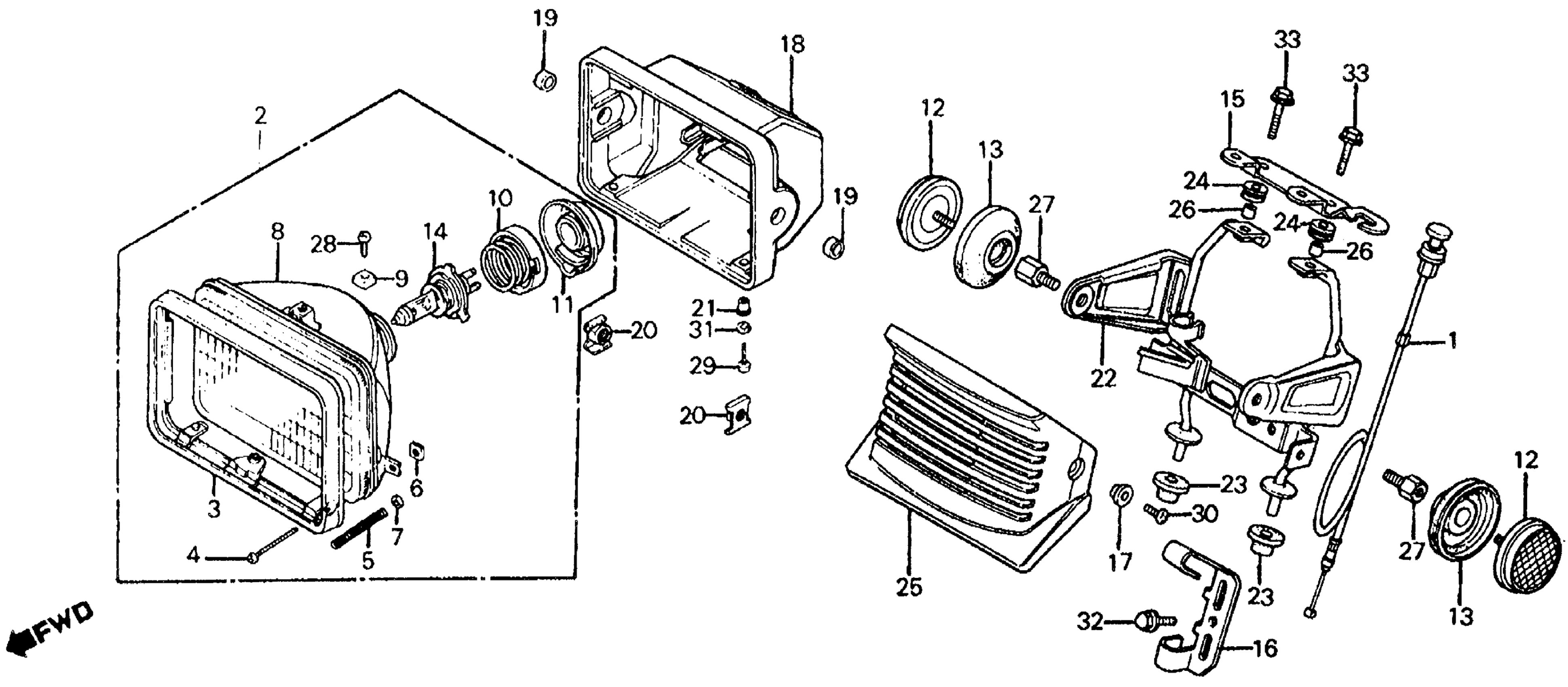

Honda FT500A (83) ASCOT, JPN, VIN# JH2PC070-DM000001 TO JH2PC070-DM002498 HEADLIGHT Diagram

#

Description
Price

1

CABLE, CHOKE (NOT AVAILABLE)

17950-MC8-000

Unavailable

2

HEADLIGHT ASSY.

33100-MC8-671

Unavailable

3

RIM, HEADLIGHT

33101-471-003

Unavailable

4

SCREW, BEAM ADJUSTING

33103-MW3-610

$7.36

4

SCREW, BEAM ADJUSTING This part replaces 33103-346-670.

33103-MW3-610

$7.36

5

SPRING, HEADLIGHT BEAM ADJUSTING

33107-300-003

$2.80

6

NUT, HEADLIGHT BEAM ADJUSTING

33117-001-023

$2.17

7

WASHER, BEAM ADJUSTING

33119-371-003

$2.58

8

HEADLIGHT UNIT

33120-MC8-671

Unavailable

9

NUT, UNIT HOLDER

33128-471-003

$1.48

10

HOLDER, HEADLIGHT SOCKET

33131-471-901

Unavailable

11

COVER, RUBBER This part replaces 33180-471-901.

33180-471-902

$10.87

11

COVER, RUBBER

33180-471-902

$10.87

12

REFLECTOR, FR. REFLEX

33741-102-870

$32.19

12

REFLECTOR, FR. REFLEX This part replaces 33741-428-671.

33741-102-870

$32.19

13

BASE, FR. REFLECTOR

33743-425-600

Unavailable

14

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601.

34901-MC7-602

$33.38

14

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601AH.

34901-MC7-602

$33.38

14

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-371-601.

34901-MC7-602

$33.38

15

BRACKET, COMBINATION METER (NOT AVAILABLE)

37211-MC8-000

Unavailable

16

CLAMP, BRAKE HOSE (NOT AVAILABLE)

45148-MC8-000

Unavailable

17

COLLAR, FR. ORNAMENT

61104-MC8-000

Unavailable

18

CASE, HEADLIGHT

61301-471-000

Unavailable

19

COLLAR, HEADLIGHT CASE

61302-471-000

Unavailable

20

NUT, HEADLIGHT CASE

61303-105-000

$3.55

21

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.22

22

STAY, HEADLIGHT (NOT AVAILABLE)

61311-MC8-000

Unavailable

23

RUBBER, HEADLIGHT STAY MOUNTING (NOT AVAILABLE)

61316-MC8-000

Unavailable

24

RUBBER, HEADLIGHT STAY SETTING (NOT AVAILABLE)

61317-MC8-000

Unavailable

25

ORNAMENT, FR. (NOT AVAILABLE)

61320-MC8-000

Unavailable

26

COLLAR, BATTERY TRAY SETTING (NOT AVAILABLE)

84706-307-000

Unavailable

27

BOLT, HEADLIGHT STAY

90123-428-000

Unavailable

28

SCREW, PAN (5X8)

93500-05008-0H

$0.83

29

SCREW, PAN (5X16)

93500-05016-0B

$1.29

30

SCREW, PAN (6X12)

93500-06012-0G

$0.90

31

WASHER, SPRING (5MM)

94111-05000

$1.03

32

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.81

32

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

33

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.64

33

BOLT, FLANGE (6X25)

95701-06025-07

$1.64
