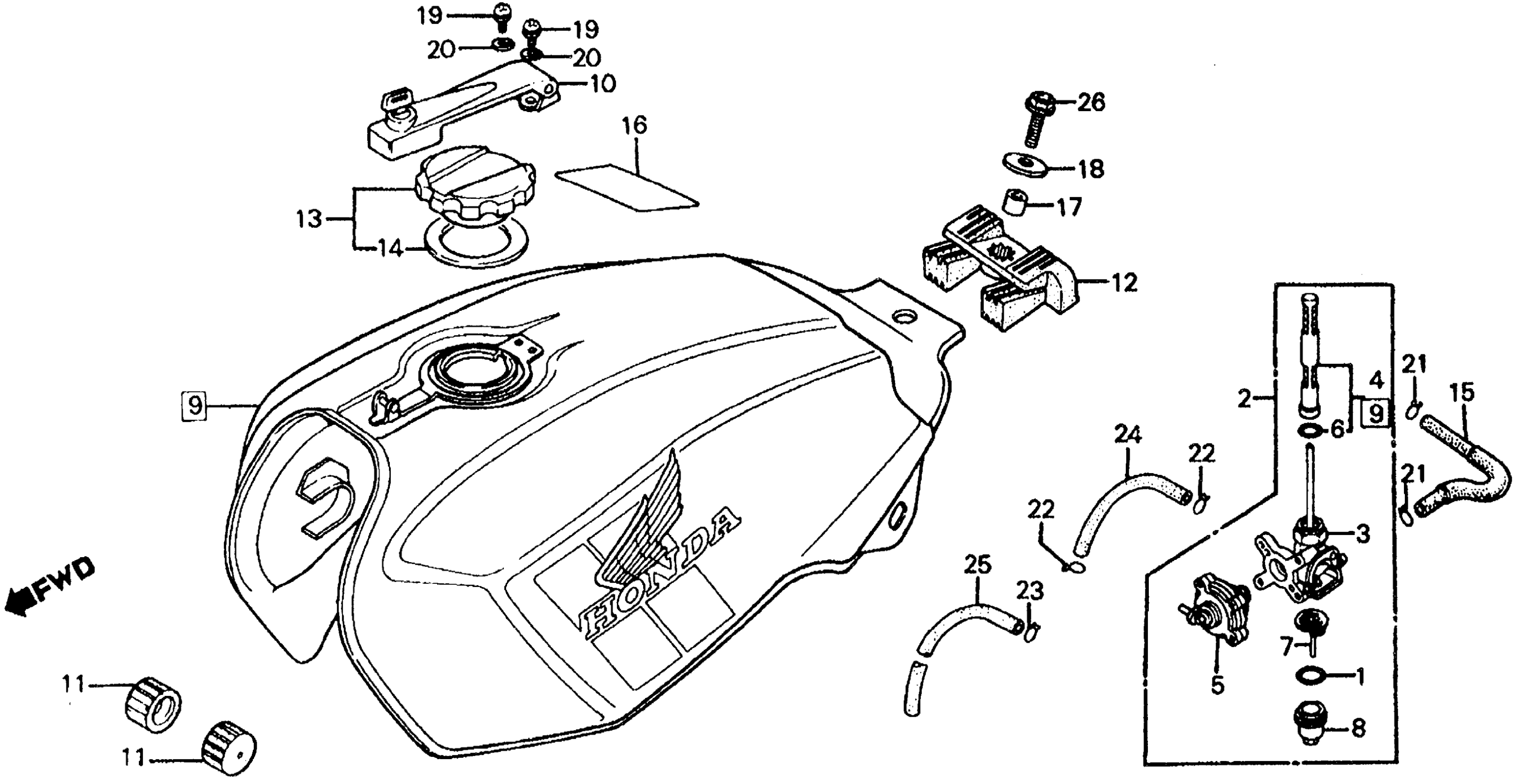

Honda FT500A (83) ASCOT, JPN, VIN# JH2PC070-DM000001 TO JH2PC070-DM002498 FUEL TANK Diagram

#

Description
Price

1

O-RING (2.4X18.6)

16075-GHB-B00

$4.67

1

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$24.34

1

GASKET, FUEL STRAINER CUP

16173-001-004

$5.17

1

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.67

1

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.67

1

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.67

2

VALVE ASSY., AUTO (NOT AVAILABLE) This part replaces 16950-MA1-731.

16950-MC9-830

Unavailable

2

VALVE ASSY., AUTO (NOT AVAILABLE) This part replaces 16950-MA1-732.

16950-MC9-830

Unavailable

2

VALVE ASSY., AUTO (NOT AVAILABLE)

16950-MC9-830

Unavailable

3

BODY, PETCOCK This part replaces 16951-MA1-731.

16951-MA1-732

Unavailable

3

BODY, PETCOCK

16951-MA1-732

Unavailable

4

SCREEN SET, FUEL STRAINER

16952-461-771

$47.80

5

COVER SET, PETCOCK This part replaces 16953-ME5-005.

16953-ME5-025

$44.58

5

COVER SET, PETCOCK This part replaces 16953-ME5-015.

16953-ME5-025

$44.58

5

COVER SET, PETCOCK

16953-ME5-025

$44.58

5

COVER SET, PETCOCK This part replaces 16953-449-751.

16953-ME5-025

$44.58

6

O-RING This part replaces 16195-657-300.

16075-GHB-720

$2.93

6

O-RING This part replaces 16958-MA1-731.

16075-GHB-720

$2.93

7

FILTER, CUP

16959-461-751

$17.88

8

CUP, FUEL STRAINER

16967-MA2-771

$25.08

9

TANK SET, FUEL *R110* (MONZA RED) (NOT AVAILABLE)

17540-MC8-770ZA

Unavailable

9

TANK SET, FUEL *NH1* (BLACK) (NOT AVAILABLE)

17540-MC8-770ZB

Unavailable

10

LID, FUEL TANK (NOT AVAILABLE) This part replaces 17530-422-017.

17530-443-305

Unavailable

10

LID, FUEL TANK (NOT AVAILABLE)

17530-443-305

Unavailable

10

LID, FUEL TANK (NOT AVAILABLE) This part replaces 17530-443-611.

17530-443-305

Unavailable

10

LID, FUEL TANK (NOT AVAILABLE) This part replaces 17530-443-612.

17530-443-305

Unavailable

11

CUSHION, FR. FUEL TANK

17611-KE8-000

$4.22

11

RUBBER, FR. FUEL TANK This part replaces 17611-286-000.

17611-KE8-000

$4.22

12

RUBBER, RR. FUEL TANK

17613-473-000

$25.42

13

CAP, FUEL FILLER This part replaces 17620-449-003.

17620-469-000

Unavailable

13

CAP, FUEL FILLER

17620-469-000

Unavailable

14

GASKET, FUEL FILLER CAP

17632-422-000

Unavailable

15

TUBE ASSY., FUEL (NOT AVAILABLE)

17681-MC8-670

Unavailable

16

MARK, DRIVE CAUTION (TYPEW) This part replaces 87560-375-680A.

87560-375-680ZF

$4.04

16

MARK, DRIVE CAUTION (TYPEB) This part replaces 87560-375-680B.

87560-375-680ZE

Unavailable

16

MARK, DRIVE CAUTION (TYPEW) This part replaces 87560-375-680ZA.

87560-375-680ZF

$4.04

16

MARK, DRIVE CAUTION (TYPEB) This part replaces 87560-375-680ZB.

87560-375-680ZE

Unavailable

16

MARK, DRIVE CAUTION (TYPEB)

87560-375-680ZE

Unavailable

16

MARK, DRIVE CAUTION (TYPEW)

87560-375-680ZF

$4.04

17

COLLAR (8MM)

90324-300-000

$4.35

18

WASHER (8.3MM)

90534-011-000

$1.49

19

SCREW-WASHER (4X6)

93892-04006-00

$1.49

20

WASHER, SPRING (4MM)

94111-04000

$1.49

21

CLIP, TUBE (B12)

95002-02120

$2.00

22

CLIP, TUBE (B6.5)

95002-02650

$1.49

23

CLIP, TUBE (C6.5)

95002-35000

$1.49

24

BULK HOSE, VACUUM (3.5X1000) (3.5X150)

95005-35001-20M

$9.67

25

BULK HOSE, VACUUM (3.5X1000) (3.5X570)

95005-35001-30M

$8.63

26

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

26

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
