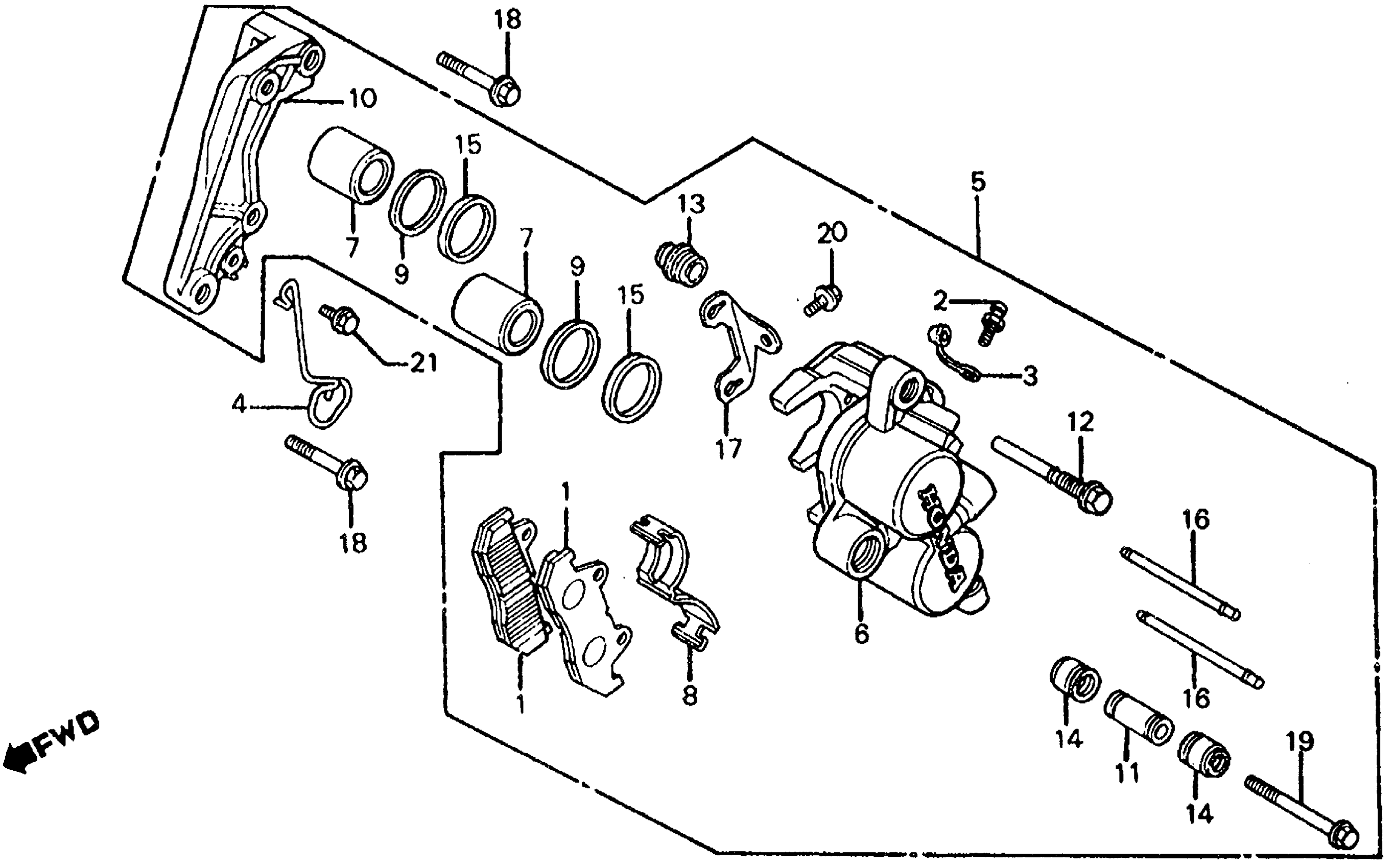

Honda FT500A (83) ASCOT, JPN, VIN# JH2PC070-DM000001 TO JH2PC070-DM002498 FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

PAD SET This part replaces 431A0-MC7-024.

06435-MC7-405

Unavailable

1

PAD SET This part replaces 431A0-MC7-024.

06435-MC7-405

Unavailable

1

PAD SET This part replaces 43105-MC7-004.

06435-MC7-405

Unavailable

1

PAD SET This part replaces 43105-MC7-007.

06435-MC7-405

Unavailable

1

PAD SET This part replaces 43105-MC7-014.

06435-MC7-405

Unavailable

1

PAD SET This part replaces 43105-MJ6-004.

06435-MC7-405

Unavailable

1

PAD SET This part replaces 43105-MJ6-014.

06435-MC7-405

Unavailable

2

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

3

CAP, BLEEDER

43353-461-771

$5.05

4

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

44832-MC8-000

Unavailable

5

CALIPER ASSY., L. FR. (NOT AVAILABLE)

45100-MC8-671

Unavailable

6

CALIPER, L. (NOT AVAILABLE)

45101-MA3-006

Unavailable

7

PISTON

45107-MA3-006

$50.26

8

SPRING, PAD

45108-MA3-006

$6.28

9

DUST SEAL

45109-166-006

$6.41

10

BRACKET, L. FR. (NOT AVAILABLE)

45110-MA5-006

Unavailable

11

SLEEVE

45111-MA3-006

$13.38

12

BOLT, PIN

45131-MA3-006

$17.59

13

BOOT B

45133-MA3-006

$5.46

14

BOOT, PIN

45133-166-016

$3.85

15

SEAL, PISTON

45209-166-006

$8.64

16

PIN, HANGER

45215-MA3-006

$12.77

17

PLATE

45217-MA3-006

$4.45

18

BOLT, FLANGE (10X37) (NOT AVAILABLE)

90003-MA2-000

Unavailable

19

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

19

BOLT, FLANGE (8X49)

90180-MN8-006

$6.07

20

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

20

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

21

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

21

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
