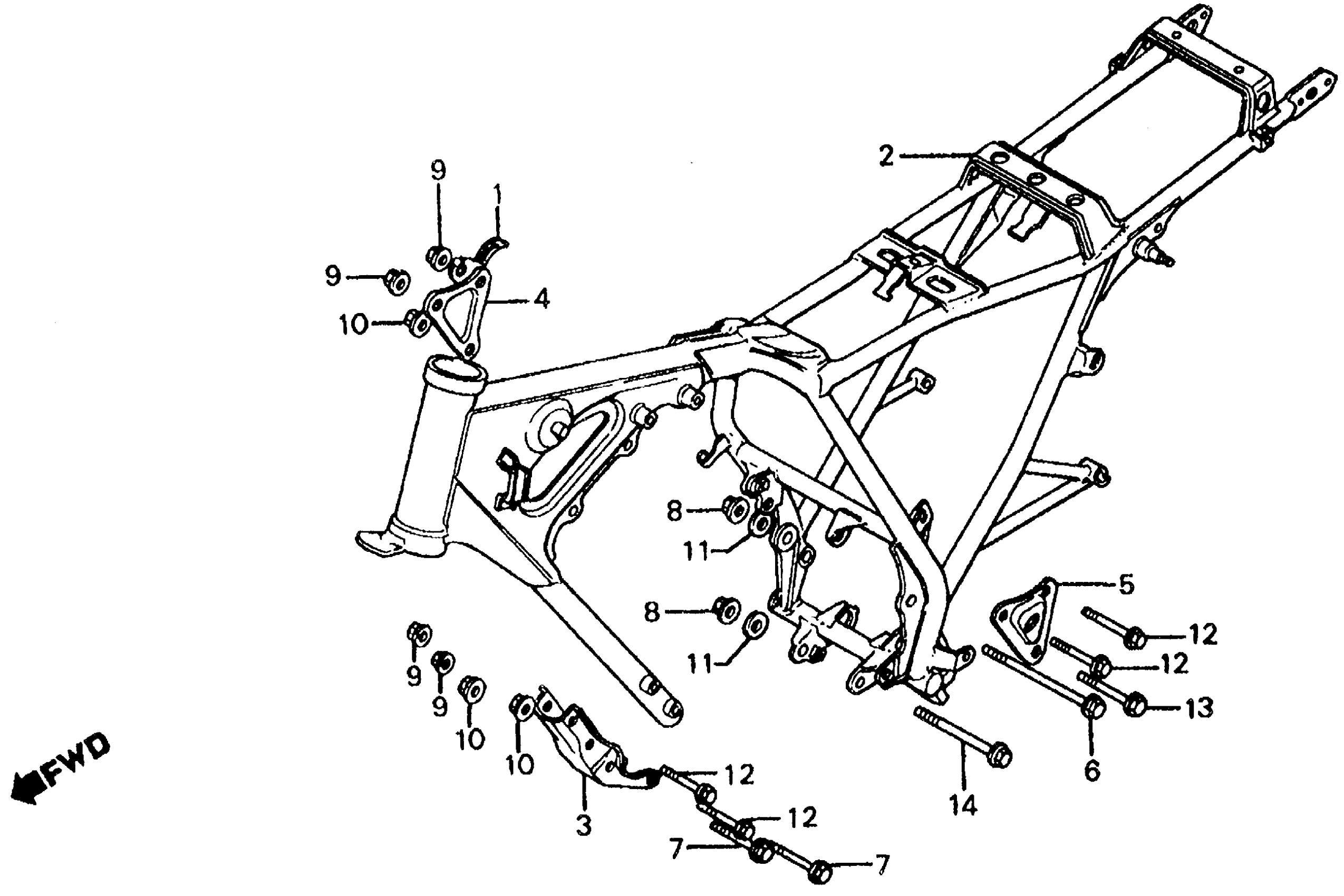

Honda FT500A (83) ASCOT, JPN, VIN# JH2PC070-DM000001 TO JH2PC070-DM002498 FRAME Diagram

GUARD, CABLE HARNESS (NOT AVAILABLE)

32811-MC8-000

Unavailable

FRAME *NH1* (BLACK) (NOT AVAILABLE)

50100-MC8-650ZA

Unavailable

PLATE, FR. ENGINE HANGER (NOT AVAILABLE)

50351-MC8-000

Unavailable

PLATE, R. ENGINE HANGER (UPPER) (NOT AVAILABLE)

50352-MC8-000

Unavailable

PLATE, L. ENGINE HANGER (UPPER) (NOT AVAILABLE)

50353-MC8-000

Unavailable

BOLT, FLANGE (12X125) (NOT AVAILABLE)

90100-MC8-000

Unavailable

BOLT, HEX. (10X60) This part replaces 92200-10060-0A.

92201-10060-0A

$3.02

BOLT, HEX. (10X60)

92201-10060-0A

$3.02

NUT, HEX. (12MM)

94001-12000-0S

$1.66

NUT, FLANGE (8MM)

94050-08000

$1.49

NUT, FLANGE (10MM)

94050-10000

$1.59

WASHER, PLAIN (12MM)

94101-12000

$1.49

BOLT, FLANGE (8X65) This part replaces 95800-08065-00.

95801-08065-00

$2.75

BOLT, FLANGE (8X65)

95801-08065-00

$2.75

BOLT, FLANGE (10X70) This part replaces 95800-10070-00.

95801-10070-00

$1.80

BOLT, FLANGE (10X70)

95801-10070-00

$1.80

BOLT, FLANGE (12X125) (NOT AVAILABLE)

95800-12125-00

Unavailable
