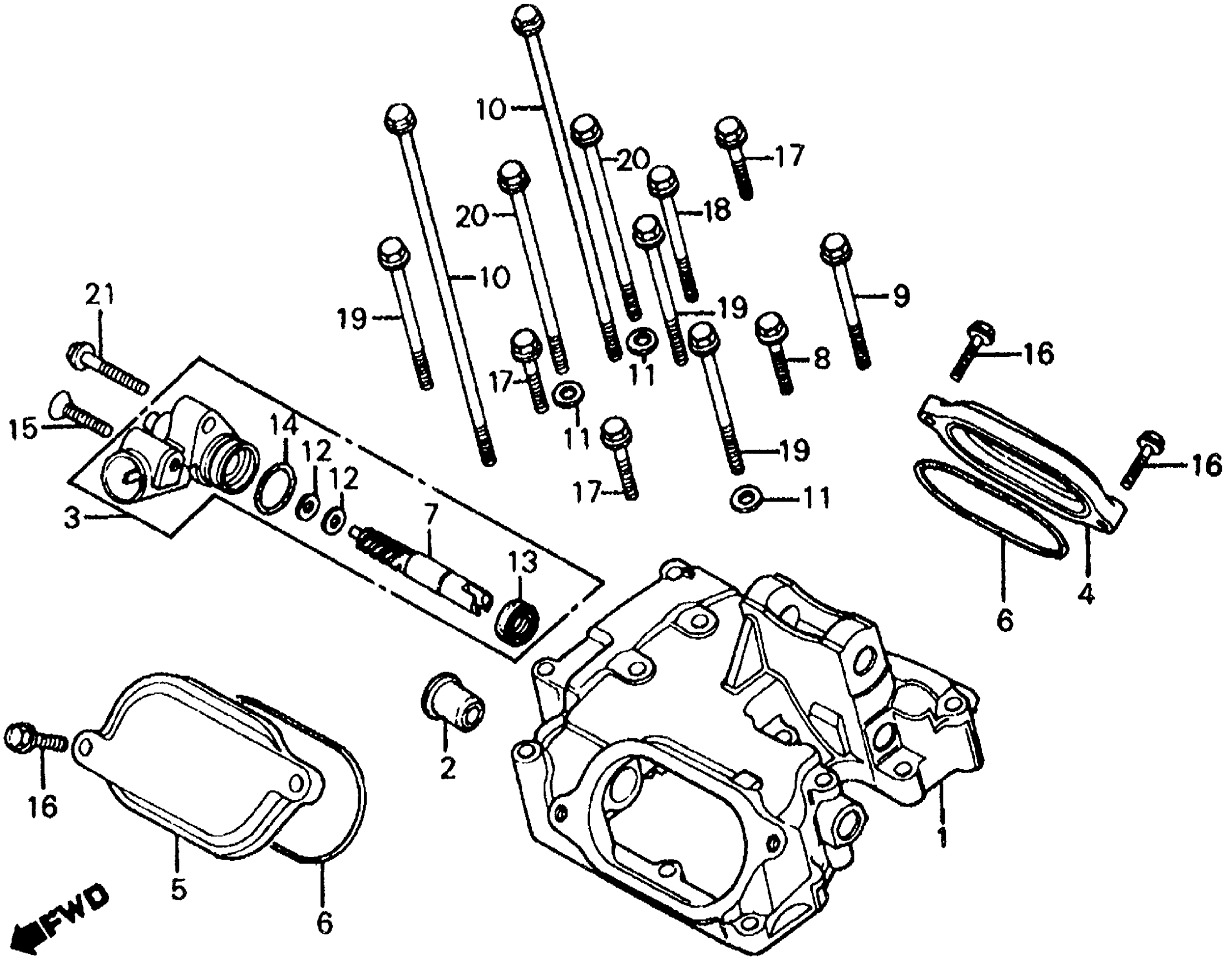

Honda FT500A (83) ASCOT, JPN, VIN# JH2PC070-DM000001 TO JH2PC070-DM002498 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD (NOT AVAILABLE)

12310-MC8-000

Unavailable

2

CAP, HEAD COVER (NOT AVAILABLE)

12316-473-000

Unavailable

3

CASE ASSY., TACHOMETER GEAR (NOT AVAILABLE)

12320-471-000

Unavailable

4

COVER, TAPPET ADJUSTING HOLE

12351-428-000

$34.49

5

COVER, TAPPET ADJ. HOLE (NOT AVAILABLE)

12351-471-000

Unavailable

6

GASKET, TAPPET COVER (KOYO)

12392-HC4-005

$3.66

6

GASKET, TAPPET COVER (KOYO) This part replaces 12392-428-000.

12392-HC4-005

$3.66

7

GEAR, TACHOMETER DRIVE (NOT AVAILABLE)

12430-471-003

Unavailable

8

BOLT, FLANGE (7X30) (NOT AVAILABLE)

90025-KA6-670

Unavailable

9

BOLT, FLANGE (7X50) (NOT AVAILABLE)

90026-KA6-670

Unavailable

10

BOLT, FLANGE (6X140) This part replaces 90048-MC8-000.

95701-06140-00

$2.80

10

BOLT, FLANGE (6X140)

95701-06140-00

$2.80

11

WASHER, SEALING (6MM)

90441-706-000

$1.06

12

WASHER B, TACHOMETER (NOT AVAILABLE)

90446-611-920

Unavailable

13

OIL SEAL (11X18X4)

91201-471-000

Unavailable

14

O-RING (18X2.4)

91310-PH3-003

$2.38

14

O-RING (18X2.4) This part replaces 91333-422-003.

91310-PH3-003

$2.38

15

SCREW, OVAL (6X22) This part replaces 93700-06022.

93700-06022-0A

Unavailable

16

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.61

16

BOLT, FLANGE (6X20)

95701-06020-00

$1.61

17

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.64

17

BOLT, FLANGE (6X25)

95701-06025-00

$1.64

18

BOLT, FLANGE (6X45) This part replaces 95700-06045-00.

95701-06045-07

$1.97

18

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$1.97

18

BOLT, FLANGE (6X45)

95701-06045-07

$1.97

19

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$1.97

19

BOLT, FLANGE (6X50)

95701-06050-00

$1.97

20

BOLT, FLANGE (6X80) This part replaces 95700-06080-00.

95701-06080-00

$2.30

20

BOLT, FLANGE (6X80)

95701-06080-00

$2.30

21

BOLT, FLANGE (6X25)

96000-06025-00

$1.91

21

BOLT, FLANGE (6X25)

96001-06025-00

$1.91
