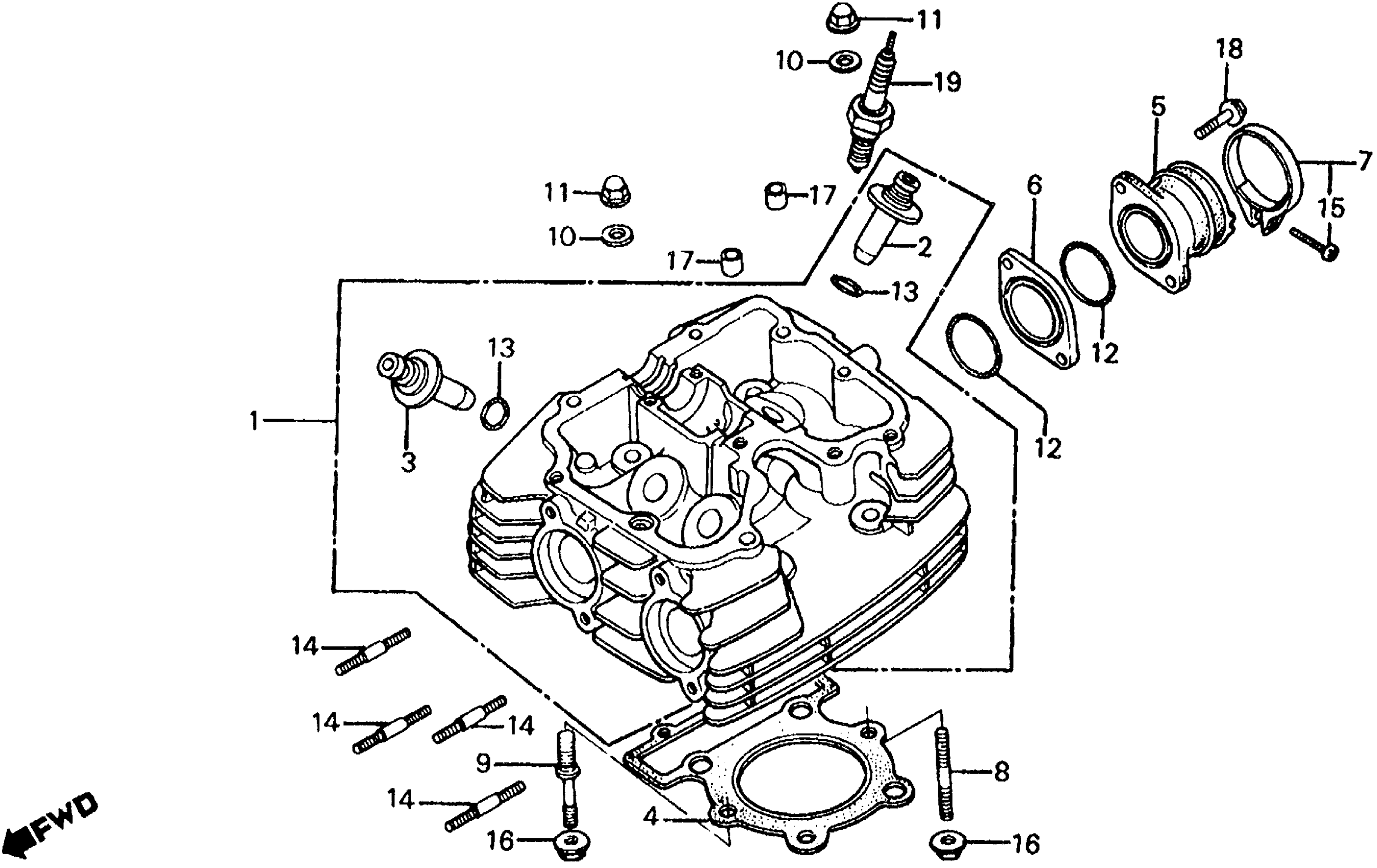

Honda FT500A (83) ASCOT, JPN, VIN# JH2PC070-DM000001 TO JH2PC070-DM002498 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD (NOT AVAILABLE) This part replaces 12200-MC8-000.

12200-MC8-010

Unavailable

1

CYLINDER HEAD (NOT AVAILABLE)

12200-MC8-010

Unavailable

2

GUIDE, VALVE (NOT AVAILABLE)

12231-429-305

Unavailable

3

GUIDE, VALVE (NOT AVAILABLE) This part replaces 12241-429-305.

12231-429-305

Unavailable

4

GASKET, CYLINDER HEAD

06130-MC4-000

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-MC4-004.

06130-MC4-000

Unavailable

5

INSULATOR, CARBURETOR (NOT AVAILABLE)

16211-MC8-003

Unavailable

6

INSULATOR, HEAT (NOT AVAILABLE) This part replaces 16215-429-000.

16215-429-306

Unavailable

6

INSULATOR, HEAT (NOT AVAILABLE)

16215-429-306

Unavailable

7

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 16223-MC8-000.

95018-56200

$9.55

7

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 17255-356-000.

95018-56200

$9.55

7

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 90651-GHB-710.

95018-56200

$9.55

7

BAND, AIR CLEANER CONNECTING TUBE (56)

95018-56200

$9.55

8

BOLT, STUD (8x50MM) This part replaces 90003-428-000.

90064-634-000

Unavailable

9

BOLT, STUD (8MM) (NOT AVAILABLE)

90087-MC8-000

Unavailable

10

WASHER (8MM)

90441-429-000

Unavailable

11

NUT, CAP (8MM)

90443-107-000

$2.89

12

O-RING (40X2.4)

91271-429-000

Unavailable

13

O-RING (10X1.6)

91301-200-000

$3.01

14

BOLT, STUD (6X25) This part replaces 92700-06035-0E.

92900-06025-0E

$1.49

14

BOLT, STUD (6X25)

92900-06025-0E

$1.49

15

SCREW, PAN (5X25)

93500-05025-0G

$1.49

16

NUT-WASHER (8MM)

94071-08080

$1.49

17

PIN, DOWEL (8X14)

94301-08140

$2.25

18

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

18

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

19

SPARK PLUG (DR8ES-L) (NGK) This part replaces 98069-38716.

98069-38719

$2.62

19

SPARK PLUG (DR8ES-L) (NGK)

98069-38719

$2.62

19

SPARK PLUG (DR7ES) (NGK) | (Optional). This part replaces 98069-57716.

98069-57719

$2.44

19

SPARK PLUG (DR7ES) (NGK) | (Optional).

98069-57719

$2.44

19

SPARK PLUG (X22ESR-U) (DENSO) | (Optional).

98069-57726

$2.44

19

SPARK PLUG (DR8ES) (NGK) | (Optional). This part replaces 98069-58716.

98069-58719

$2.50

19

SPARK PLUG (DR8ES) (NGK) | (Optional).

98069-58719

$2.50

19

SPARK PLUG (X24ESR-U) (DENSO)

98069-58726

$2.54

19

SPARK PLUG (X27ESR-U) (DENSO) | (Optional).

98069-59726

$2.54
