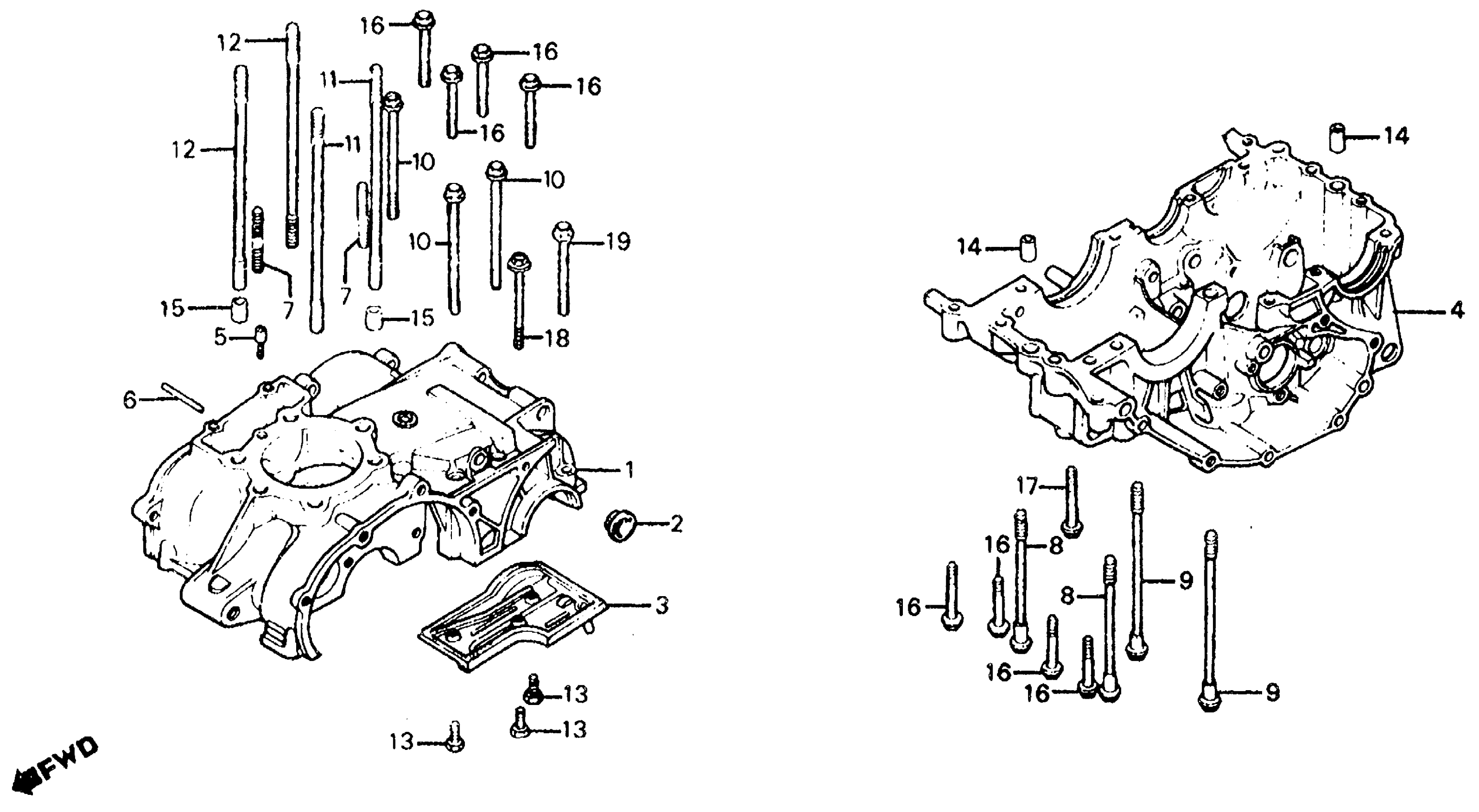

Honda FT500A (83) ASCOT, JPN, VIN# JH2PC070-DM000001 TO JH2PC070-DM002498 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE (UPPER) (NOT AVAILABLE)

11100-MC8-000

Unavailable

2

RUBBER, BREATHER (NOT AVAILABLE)

11105-473-000

Unavailable

3

PLATE, BREATHER (NOT AVAILABLE)

11110-429-000

Unavailable

4

CRANKCASE (LOWER) (NOT AVAILABLE)

11200-MC8-000

Unavailable

5

ORIFICE, OIL (NOT AVAILABLE)

11333-376-000

Unavailable

6

PIPE, OIL PASSAGE (NOT AVAILABLE)

11335-428-000

Unavailable

7

BOLT, STUD (8x50MM) This part replaces 90003-428-000.

90064-634-000

Unavailable

8

BOLT, FLANGE (9X150) (NOT AVAILABLE)

90007-429-000

Unavailable

9

BOLT, FLANGE (10X166) (TOKA1) (NOT AVAILABLE)

90010-371-003

Unavailable

10

BOLT, FLANGE (6X75)

90051-393-000

Unavailable

11

BOLT, STUD (8X193) (NOT AVAILABLE)

90081-429-000

Unavailable

12

BOLT, STUD (8X207) (NOT AVAILABLE)

90083-429-000

Unavailable

13

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

13

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

13

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

14

PIN, DOWEL (10X16)

94301-10160

$2.28

15

PIN, DOWEL (12X20)

94301-12200

$2.29

16

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

16

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

17

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

17

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

18

BOLT, FLANGE (6X55) This part replaces 95700-06055-00.

95701-06055-00

$2.16

18

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

19

BOLT, FLANGE (8X45) This part replaces 95700-08045-00.

95701-08045-00

$1.49

19

BOLT, FLANGE (8X45)

95701-08045-00

$1.49
