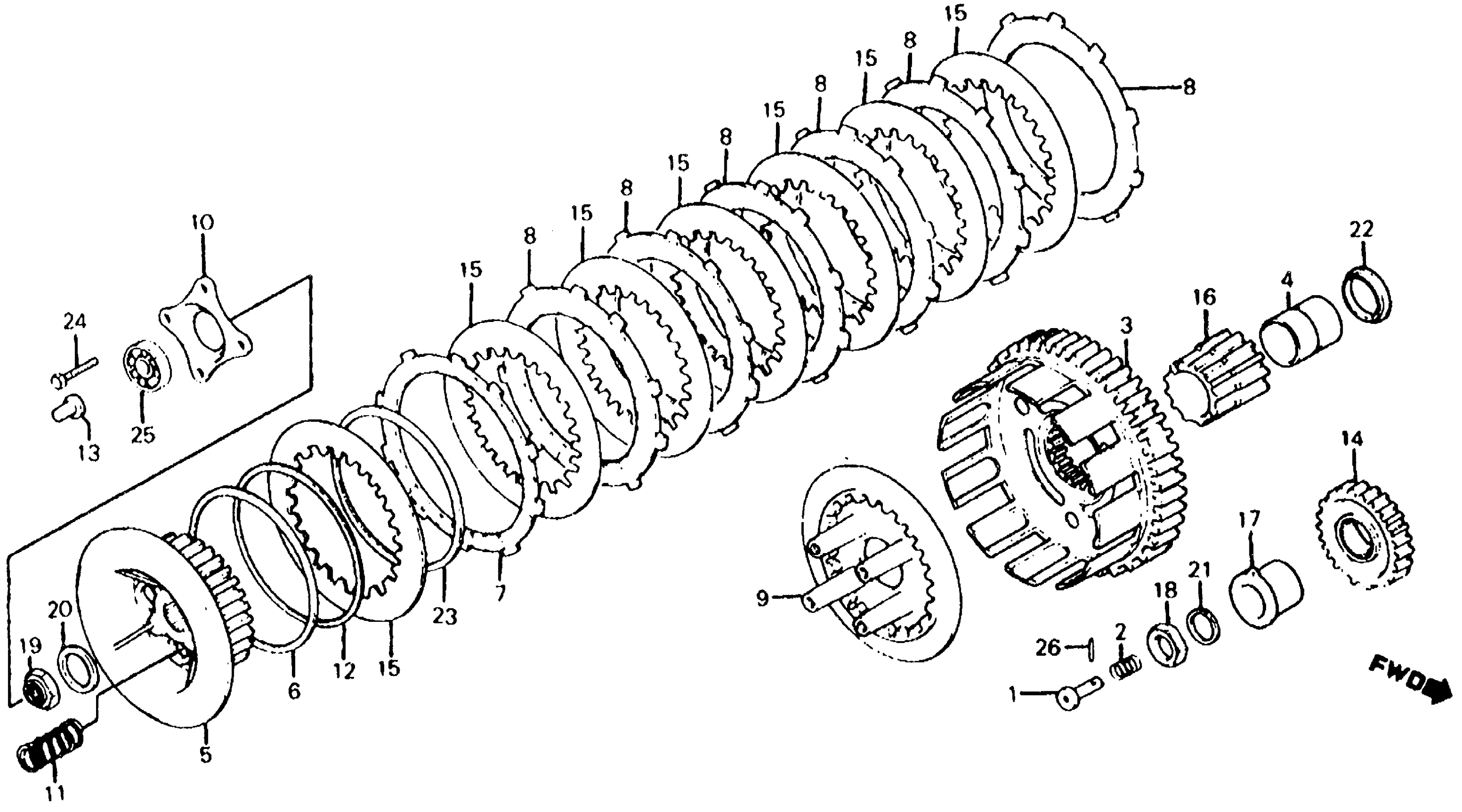

Honda FT500A (83) ASCOT, JPN, VIN# JH2PC070-DM000001 TO JH2PC070-DM002498 CLUTCH Diagram

THROUGH, OIL (NOT AVAILABLE)

15445-428-000

Unavailable

SPRING, OIL THROUGH

15447-149-000

$2.92

CLUTCH (OUTER) (NOT AVAILABLE)

22100-MA0-000

Unavailable

CLUTCH (OUTER) (NOT AVAILABLE) This part replaces 22100-MC4-000.

22100-MA0-000

Unavailable

GUIDE, CLUTCH (OUTER) (NOT AVAILABLE)

22116-429-000

Unavailable

CENTER, CLUTCH (NOT AVAILABLE)

22120-MC8-000

Unavailable

SEAT, JUDDER SPRING

22125-435-000

$9.15

DISK B, CLUTCH FRICTION This part replaces 22201-302-000.

22202-ML4-611

$18.13

DISK B, CLUTCH FRICTION This part replaces 22202-ML4-610.

22202-ML4-611

$18.13

DISK B, CLUTCH FRICTION

22202-ML4-611

$18.13

DISK, CLUTCH FRICTION

22201-ML4-610

$16.40

DISK, CLUTCH FRICTION This part replaces 22201-377-000.

22201-ML4-610

$16.40

PLATE, CLUTCH PRESSURE

22350-KW0-000

Unavailable

PLATE, CLUTCH PRESSURE This part replaces 22350-MC4-000.

22350-KW0-000

Unavailable

PLATE, CLUTCH LIFTER (NOT AVAILABLE)

22361-471-000

Unavailable

SPRING, CLUTCH

22401-MC4-000

Unavailable

SPRING, JUDDER

22402-435-000

$34.37

ROD, CLUTCH LIFTER

22847-166-000

$12.56

GEAR, PRIMARY DRIVE (29T) (NOT AVAILABLE)

23121-429-000

Unavailable

PLATE A, CLUTCH

23311-200-000

$12.22

GEAR, KICK STARTER (NOT AVAILABLE)

28231-429-000

Unavailable

ROTOR, PULSER (NOT AVAILABLE)

30220-MC8-154

Unavailable

NUT, LOCK (18MM)

90235-428-000

Unavailable

NUT, LOCK (18MM)

90235-429-000

Unavailable

WASHER, LOCK

90432-428-000

$7.57

WASHER (18MM)

90451-357-000

Unavailable

WASHER, THRUST (22MM) (NOT AVAILABLE)

90458-429-010

Unavailable

CLIP (OUTER) (94MM) (NOT AVAILABLE)

90609-413-000

Unavailable

BOLT, HEX. (6X25) This part replaces 92025-06025.

92025-06025-0A

$1.49

BOLT, HEX. (6X25)

92025-06025-0A

$1.49

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13

ROLLER (2X13.8)

96220-20138

$1.49
