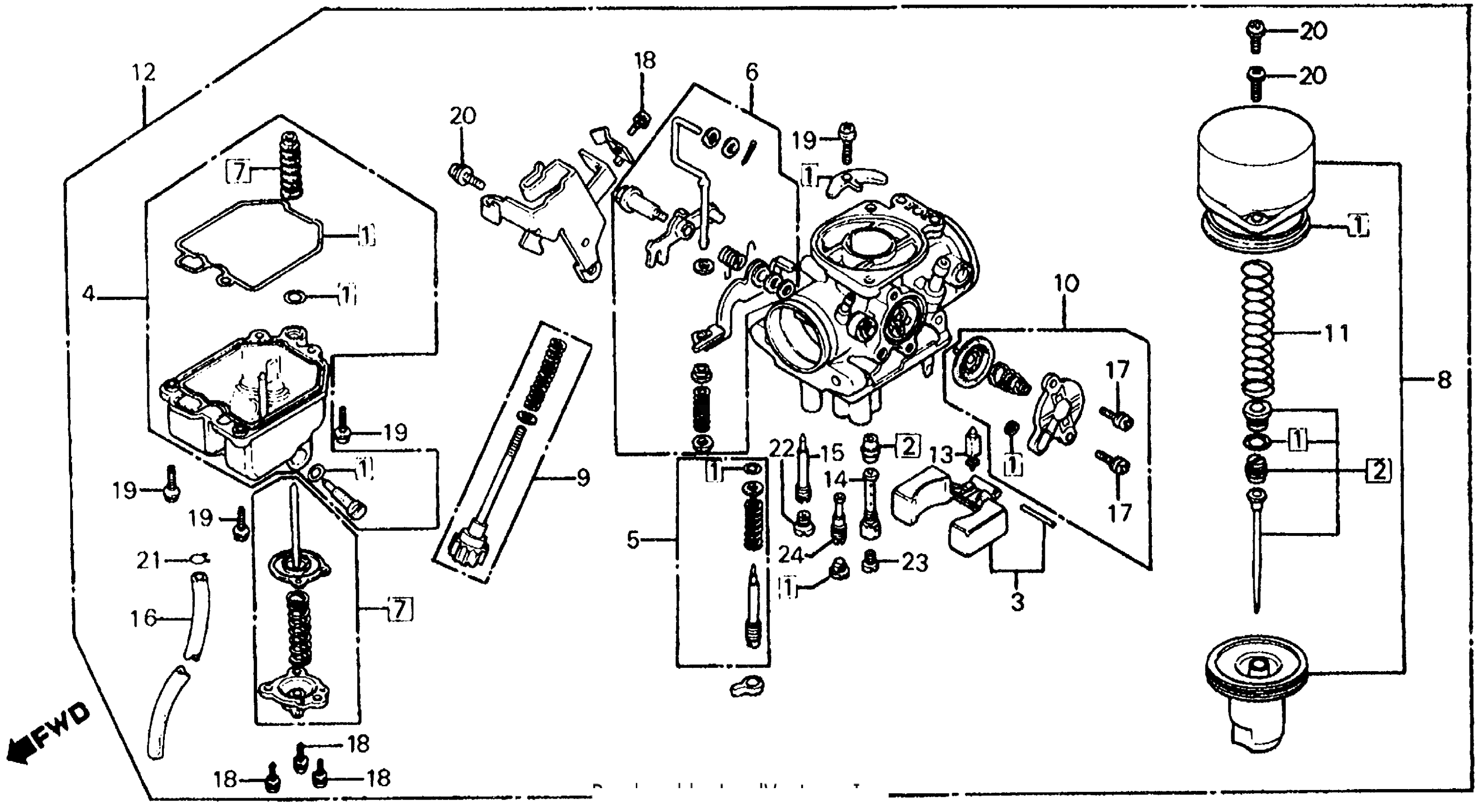

Honda FT500A (83) ASCOT, JPN, VIN# JH2PC070-DM000001 TO JH2PC070-DM002498 CARBURETOR Diagram

#

Description
Price

1

GASKET SET (NOT AVAILABLE)

16010-MC8-671

Unavailable

2

NEEDLE SET, JET (NOT AVAILABLE)

16012-MC8-671

Unavailable

3

FLOAT SET

16013-413-851

$90.77

4

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-MC8-671

Unavailable

5

SCREW SET A

16016-KC2-970

$25.35

5

SCREW SET A This part replaces 16016-413-751.

16016-KC2-970

$25.35

6

ROD SET, PUMP (NOT AVAILABLE)

16019-413-751

$50.74

7

DIAPHRAGM SET, PUMP (NOT AVAILABLE)

16021-MC8-671

Unavailable

8

PISTON SET, VACUUM (NOT AVAILABLE) This part replaces 16022-415-023.

16022-449-771

Unavailable

9

SCREW SET B (NOT AVAILABLE)

16028-425-671

Unavailable

10

VALVE SET, AIR CUT

16048-KB7-901

$149.08

10

VALVE SET, AIR CUT This part replaces 16048-KC4-004.

16048-KB7-901

$149.08

11

SPRING, VACUUM PISTON (NOT AVAILABLE)

16050-415-003

Unavailable

12

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-MC8-671.

16100-MC8-772

Unavailable

12

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-MC8-672.

16100-MC8-772

Unavailable

12

CARBURETOR ASSY. (NOT AVAILABLE)

16100-MC8-772

Unavailable

12

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-MC8-771.

16100-MC8-772

Unavailable

13

VALVE, FLOAT

16155-397-971

$41.45

14

HOLDER, NEEDLE JET

16165-449-771

$31.28

15

NOZZLE, MAIN (NOT AVAILABLE)

16166-415-003

Unavailable

16

TUBE This part replaces 16195-449-405.

16199-MN5-405

$11.86

16

TUBE This part replaces 16195-449-771.

16199-MN5-405

$11.86

16

TUBE, FUEL

16199-MN5-405

$11.86

17

SCREW-WASHER (4X10)

93892-04010-00

$1.49

18

SCREW-WASHER (4X12)

93892-04012-00

$1.49

19

SCREW-WASHER (4X16)

93892-04016-00

$1.49

20

SCREW-WASHER (5X16)

93892-05016-00

$1.49

21

CLIP, TUBE (B6.5)

95002-02650

$1.49

22

JET, PRIMARY MAIN (#68)

99101-393-0680

$11.52

23

JET, MAIN (#140) This part replaces 99101-GHB-1400.

99101-MAL-1400

$11.67

23

JET, MAIN (#140)

99101-MAL-1400

$11.67

23

JET, MAIN (#140) This part replaces 99101-393-1400.

99101-MAL-1400

$11.67

23

JET, MAIN (#140) This part replaces 99102-393-1400.

99101-MAL-1400

$11.67

24

JET, SLOW (#52)

99103-MA1-0520

$20.77
