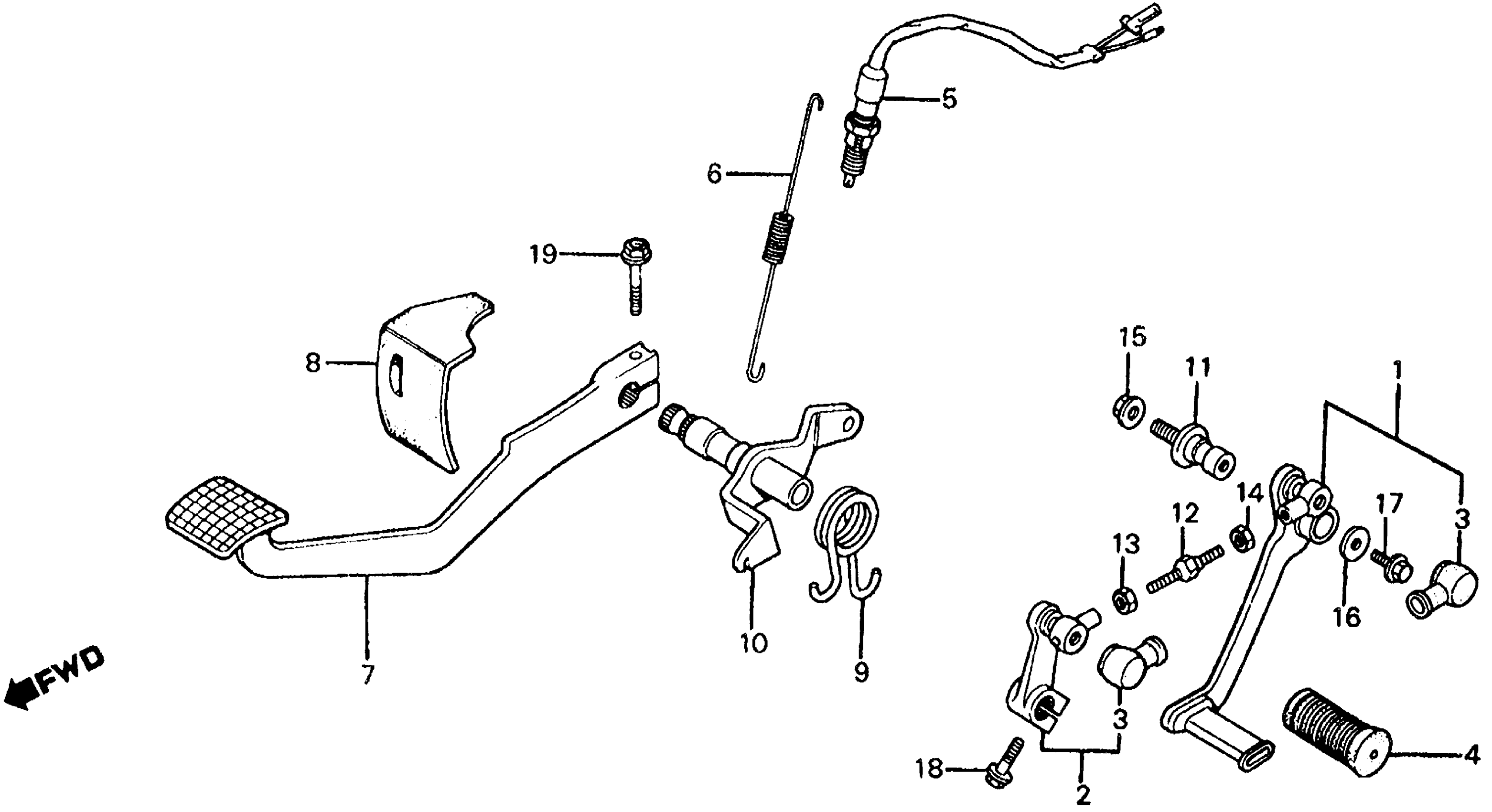

Honda FT500A (83) ASCOT, JPN, VIN# JH2PC070-DM000001 TO JH2PC070-DM002498 BRAKE PEDAL + GEARSHIFT PEDAL Diagram

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-MC8-000

Unavailable

ARM, GEARSHIFT (NOT AVAILABLE)

24710-MC8-000

Unavailable

COVER, DUST

24724-422-000

$6.68

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

SWITCH ASSY., RR. STOP

35350-MA1-405

$19.28

SWITCH ASSY., RR. STOP This part replaces 35350-126-920.

35350-MA1-405

$19.28

SPRING, STOP SWITCH This part replaces 35357-MC8-000.

35357-KV3-000

Unavailable

PEDAL, BRAKE (NOT AVAILABLE)

46500-MC8-670

Unavailable

RUBBER, BRAKE PEDAL GUARD (NOT AVAILABLE)

46502-MC8-000

Unavailable

SPRING, BRAKE RETURN (NOT AVAILABLE)

46514-MC8-670

Unavailable

SHAFT, RR. BRAKE PIVOT (NOT AVAILABLE)

46515-MC8-670

Unavailable

PIVOT, GEARSHIFT PEDAL (NOT AVAILABLE)

50643-MC8-000

Unavailable

BOLT, TIE ROD (NOT AVAILABLE)

90065-422-670

Unavailable

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

90201-700-000

$1.49

NUT, HEX. (6MM)

94002-06020-0S

$1.49

NUT, FLANGE (8MM)

94050-08080

$1.49

WASHER, PLAIN (6MM)

94103-06000

$1.49

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

BOLT, FLANGE (8X28) This part replaces 95700-08028-00.

95701-08028-00

$1.49

BOLT, FLANGE (8X28)

95701-08028-00

$1.49
