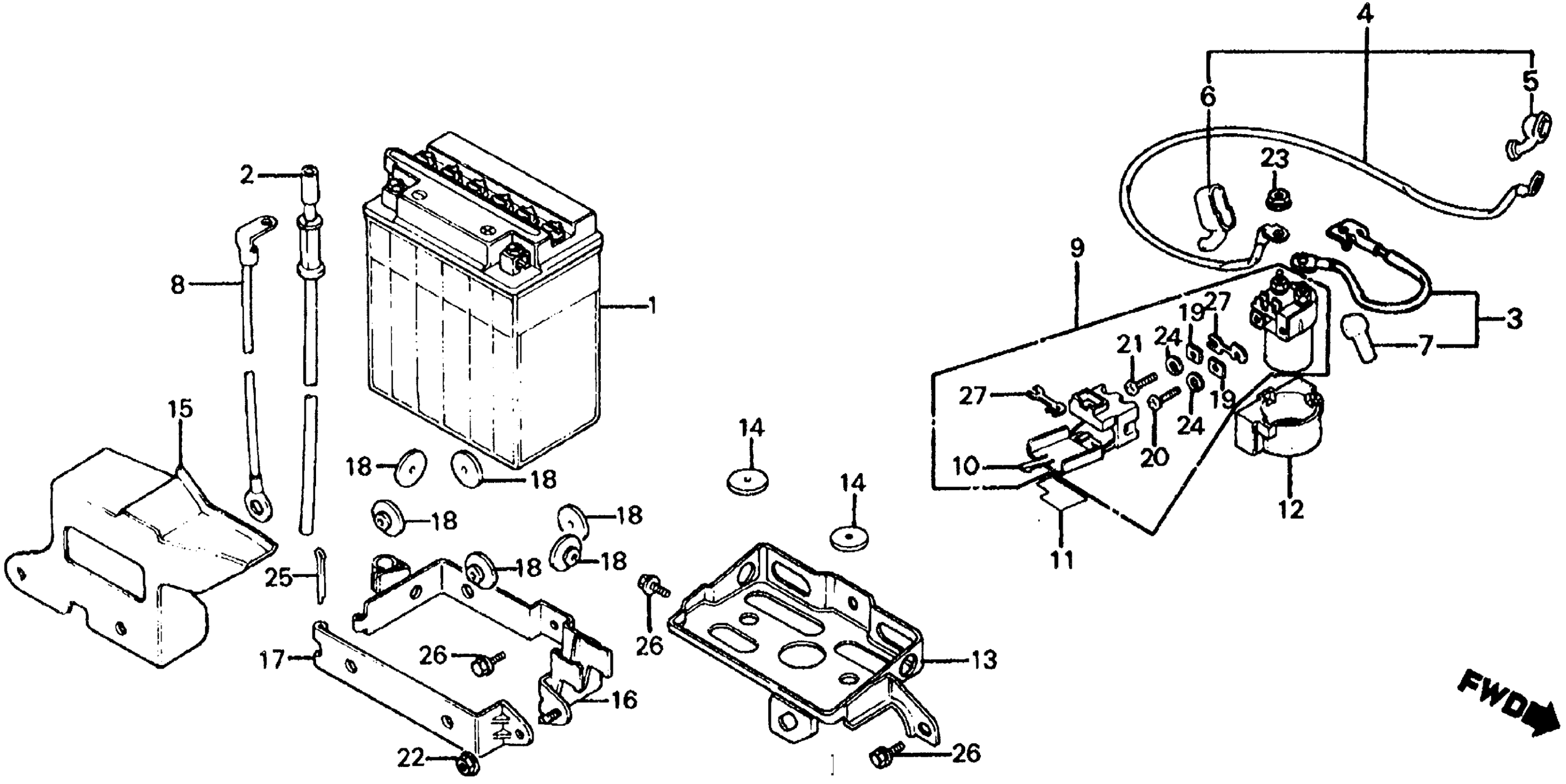

Honda FT500A (83) ASCOT, JPN, VIN# JH2PC070-DM000001 TO JH2PC070-DM002498 BATTERY + C.D.I. UNIT Diagram

#

Description
Price

1

BATTERY (12N14-3A) This part replaces 31500-415-601.

31500-425-672AH

$65.05

1

BATTERY (12N14-3A) This part replaces 31500-415-671.

31500-425-672AH

$65.05

1

BATTERY (12N14-3A) This part replaces 31500-425-671.

31500-425-672AH

$65.05

1

BATTERY (12N14-3A) This part replaces 31500-425-672.

31500-425-672AH

$65.05

1

BATTERY (12V14)

31500-425-672AH

$65.05

1

BATTERY (12N14-3A) This part replaces 31500-425-677.

31500-425-672AH

$65.05

1

BATTERY (12N14-3A) This part replaces 31500-461-770.

31500-425-672AH

$65.05

1

BATTERY (12N14-3A) This part replaces 31500-461-771.

31500-425-672AH

$65.05

1

BATTERY (12N14-3A) This part replaces 31500-461-772.

31500-425-672AH

$65.05

2

TUBE BAT,BREATHER This part replaces 31502-MC8-000.

31502-KG4-405

Unavailable

3

CABLE, STARTER BATTERY (NOT AVAILABLE)

32401-MC8-000

Unavailable

4

CABLE, STARTER MOTOR (NOT AVAILABLE)

32410-MC8-000

Unavailable

5

COVER, TERMINAL

32411-473-000

$6.05

6

COVER A, MAGNETIC SWITCH (NOT AVAILABLE)

32412-443-900

Unavailable

7

COVER A, MAGNETIC SWITCH

32415-425-000

$3.30

8

CABLE, BATTERY GROUND (NOT AVAILABLE)

32601-MC8-000

Unavailable

9

SWITCH ASSY., STARTER MAGNETIC

35850-KE5-000

Unavailable

9

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-MC8-000.

35850-KE5-000

Unavailable

10

COVER, FUSE

35852-425-017

Unavailable

11

LABEL, FUSE COVER (NOT AVAILABLE)

35853-425-300

Unavailable

12

RUBBER, MAGNETIC SHOCK

35856-425-000

$10.91

13

TRAY, BATTERY (NOT AVAILABLE)

50325-MC8-000

Unavailable

14

RUBBER B, BATTERY

50327-300-000

$4.58

15

COVER, BATTERY (NOT AVAILABLE)

50328-MC8-000

Unavailable

16

BAND A, BATTERY (NOT AVAILABLE)

50329-MC8-305

Unavailable

17

BAND B, BATTERY (NOT AVAILABLE)

50330-MC8-305

Unavailable

18

RUBBER, BATTERY BOX

83618-323-000

$2.47

19

WASHER (4MM) (NOT AVAILABLE)

90555-425-007

Unavailable

20

SCREW, PAN (4X6)

93500-04006-0H

$1.49

20

SCREW, PAN (4X6) This part replaces 93500-04006-1H.

93500-04006-0H

$1.49

21

SCREW, PAN (4X10)

93500-04010-0H

$1.49

21

SCREW, PAN (4X10) This part replaces 93500-04010-1H.

93500-04010-0H

$1.49

22

NUT, FLANGE (6MM)

94050-06000

$1.49

23

NUT, FLANGE (6MM)

94050-06080

$1.49

24

WASHER, SPRING (4MM)

94111-04800

$1.49

25

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

25

PIN, SPLIT (3.0X45)

94201-30450

$1.49

26

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

26

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

27

FUSE F (15A)

98200-51500

$1.49
