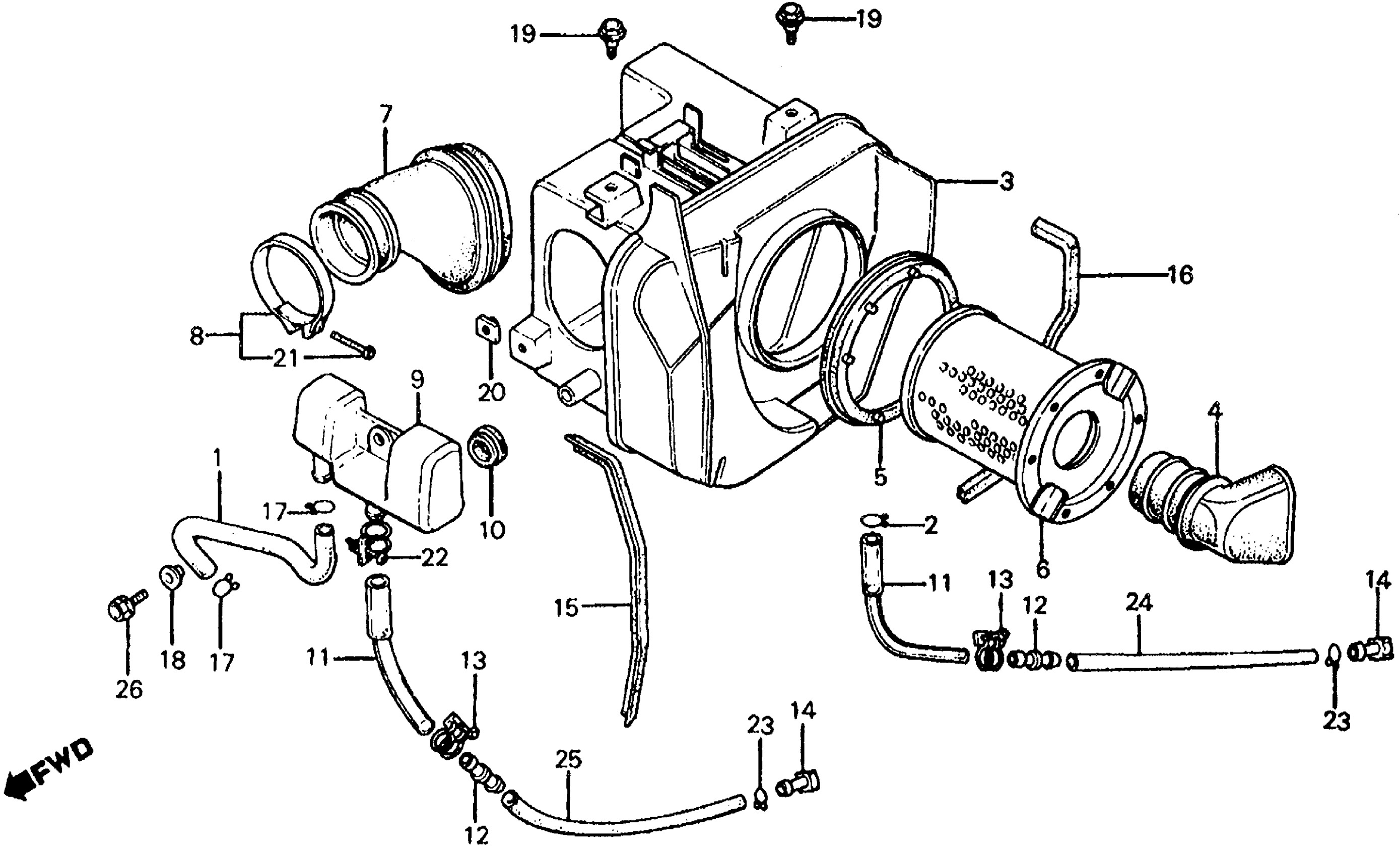

Honda FT500A (83) ASCOT, JPN, VIN# JH2PC070-DM000001 TO JH2PC070-DM002498 AIR CLEANER Diagram

#

Description
Price

1

TUBE, BREATHER (NOT AVAILABLE)

15761-MC8-670

Unavailable

2

CLIP, BREATHER TUBE

15772-292-010

$2.92

3

HOUSING, AIR CLEANER (NOT AVAILABLE)

17210-MC8-000

Unavailable

4

DUCT, AIR CLEANER TUBE (NOT AVAILABLE)

17213-MC8-000

Unavailable

5

SEAL, AIR CLEANER (NOT AVAILABLE)

17219-MC8-000

Unavailable

6

ELEMENT, AIR CLEANER (NOT AVAILABLE)

17221-MC8-000

Unavailable

7

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17222-MC8-000

Unavailable

8

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17256-425-010.

95018-60250

$6.25

9

TANK, STORAGE (NOT AVAILABLE)

17330-MC8-670

Unavailable

10

GROMMET, TUBE (NOT AVAILABLE)

17331-MC8-670

Unavailable

11

TUBE (NOT AVAILABLE)

17336-415-670

Unavailable

12

JOINT, BREATHER TUBE

17359-419-670

$1.95

13

CLIP, TUBE (A13.5)

17369-419-670

Unavailable

14

PLUG, BREATHER TUBE

17370-419-700

$3.74

15

RUBBER A, AIR CLEANER SEAL (NOT AVAILABLE)

17380-MC8-300

Unavailable

16

RUBBER B, AIR CLEANER SEAL (NOT AVAILABLE)

17381-MC8-300

Unavailable

17

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

18

COLLAR C

90003-438-850

$5.05

19

BOLT, FLANGE (6MM)

90111-147-000

$2.75

20

NUT, SPECIAL (6X7)

61304-958-003

$3.24

20

NUT, SPECIAL (6X7) This part replaces 90301-471-000.

61304-958-003

$3.24

21

SCREW, PAN (5X25)

93500-05025-0G

$1.49

22

CLIP, TUBE (A16)

95002-01160

$4.05

23

CLIP, TUBE (B12.5)

95002-02130

$1.49

24

BULK HOSE, VACUUM (8X1000) (8X260)

95005-80001-20M

$23.91

25

BULK HOSE, VACUUM (8X1000) (8X280)

95005-80001-20M

$23.91

26

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

26

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
