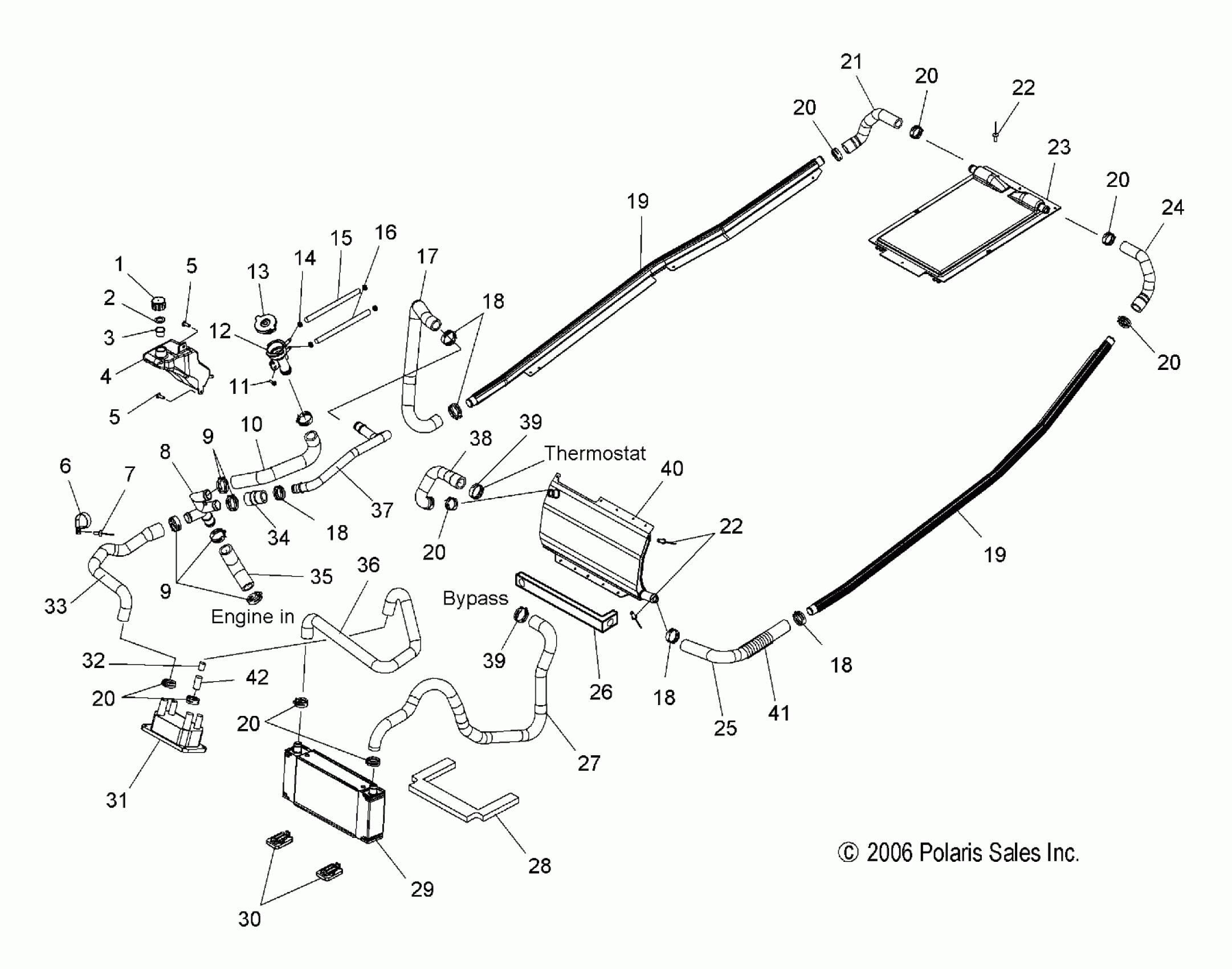

Polaris FST IQ/LX - S07PP7FS/PP7FSA/PP7FE/PD7FS/PD7FE COOLING - S07PP7FS/PP7FSA/PP7FE/PD7FS/PD7FE (49SNOWCOOLINGFSTIQ) Diagram

#

Description
Price

1

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

2

GASKET-OVERFLOW CAP

5810279

$2.41

3

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

4

BOTTLE, COOLANT

5436215

Unavailable

5

Screw

7512208

$3.99

5

Screw

7512208

$3.99

6

CLAMP-HOSE

7080807

$9.59

7

RIVET

7621467

$1.49

8

Manifold, Coolant Return

5436228

Unavailable

9

CLAMP, SPRING BAND

7080844

$10.39

9

CLAMP, SPRING BAND

7080844

$10.39

10

Hose, Filler/Manifold

5412853

$12.39

11

Screw

7512095

$4.79

12

Filler, Remote

5435196

Unavailable

13

Cap, Pressure

1240044

Unavailable

14

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

15

Hose, High Temp

8450115-40

$15.67

16

Line, Fuel

8450003-1525

$84.99

17

Hose, Gripper/Tube

5412851

$21.43

18

CLAMP, SPRING BAND

7080843

$3.99

18

CLAMP, SPRING BAND

7080843

$3.99

18

CLAMP, SPRING BAND

7080843

$3.99

18

CLAMP, SPRING BAND

7080843

$3.99

19

Exchanger, Cooler, LH

5135258

$181.59

19

Exchanger, Cooler, RH

5135259

Unavailable

19

Exchanger, Cooler, LH

5135258

$181.59

19

Exchanger, Cooler, RH

5135259

Unavailable

20

CLAMP, SPRING BAND

7080842

$7.19

20

CLAMP, SPRING BAND

7080842

$7.19

20

CLAMP, SPRING BAND

7080842

$7.19

20

CLAMP, SPRING BAND

7080842

$7.19

20

CLAMP, SPRING BAND

7080842

$7.19

20

CLAMP, SPRING BAND

7080842

$7.19

20

CLAMP, SPRING BAND

7080842

$7.19

21

Hose, Gripper/Cooler, Rear, RH

5412773

Unavailable

22

RIVET-3/16-.090-.290

7661637

$1.49

22

RIVET-3/16-.090-.290

7661637

$1.49

23

Cooler, Rear

1240267

$1,199.99

24

Hose, Gripper/Cooler, Rear, LH

5412772

Unavailable

25

Hose, Center Cooler/Gripper, LH

5412766

$24.27

26

Seal, Closeoff, Front

5812845

$12.13

27

Hose, Engine Out/Radiator

5412783

Unavailable

28

MOUNT, RADIATOR, FOAM

5812496

$9.70

29

Asm., Radiator

1240149

Unavailable

30

MOUNT, RADIATOR

5412513

$8.08

31

Cooler, Oil

1240312

Unavailable

32

Restrictor, Coolant

5135328

Unavailable

33

Hose, Oil Cooler/Manifold

5412786

Unavailable

34

Connector, Tube/Manifold

5412852

$3.33

35

Hose, Manifold/Engine In

5412782

Unavailable

36

Hose, Radiator/Oil Cooler In

5412784

Unavailable

37

Tube, Gripper/Manifold

5334771

Unavailable

38

Hose, Engine Out/Cooler

5412984

$60.70

39

CLAMP-HOSE(WORM DR)25-40MM (WORM DRIVE)

7081192

$7.99

39

CLAMP-HOSE(WORM DR)25-40MM (WORM DRIVE)

7081192

$7.99

40

COOLER, BULKHEAD

2520575

$234.99

41

CONDUIT, FLEX

5521287-15

$9.70

42

Sleeve

5135769

$8.79
